· Resin type tested according to: IEC60455-3-8:2013
· Also applicable as double branch-off joint

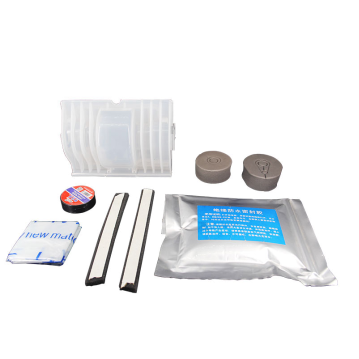

· Hydrolysis resistant polyurethane resin in transparent 2-component bag
· Transparent 2-piece, cylindrical shells with pre-installed sealing strips
· Excellent resistance against UV, chemicals and alkalines
· Fully waterproof
· Installation instructions and protective gloves inclusive
· Very easy and quick installation
· Connectors and/or earthing kits available on request
· Other shell size dimensions available on request
|
Type |
Maximum cable outer diameter |
Maximum cable cross section |
Dimension |
Fill weight |
||
|
Main circuit |
Branch circuit |
Main circuit |
Branch circuit |
|||
|
SJ-F1 |
15mm |
15mm |
4*1.5-6mm² |
4*1.5-4mm² |
175*75*40mm |
140g |
|
SJ-F2 |
29mm |
22mm |
4*6-10mm² |
4*4-10mm² |
175*110*76mm |
500g |
|
SJ-F3 |
29mm |
22mm |
4*6-25mm² |
4*6-16mm² |
300*110*76mm |
1000g |
|
SJ-F4 |
35mm |
25mm |
4*35-95mm² |
4*6-25mm² |
400*125*100mm |
2500g |
|
SJ-M2 |
26mm |
22mm |
4*6-10mm² |
4*4-10mm² |
198*140*116mm |
650g |
|
SJ-M3 |
29mm |
22mm |
4*6-25mm² |
4*4-16mm² |
178*125*96mm |
700g |
|
SJ-M5 |
55mm |
36mm |
4*35-150mm² |
4*6-70mm² |
295*175*130mm |
2000g |

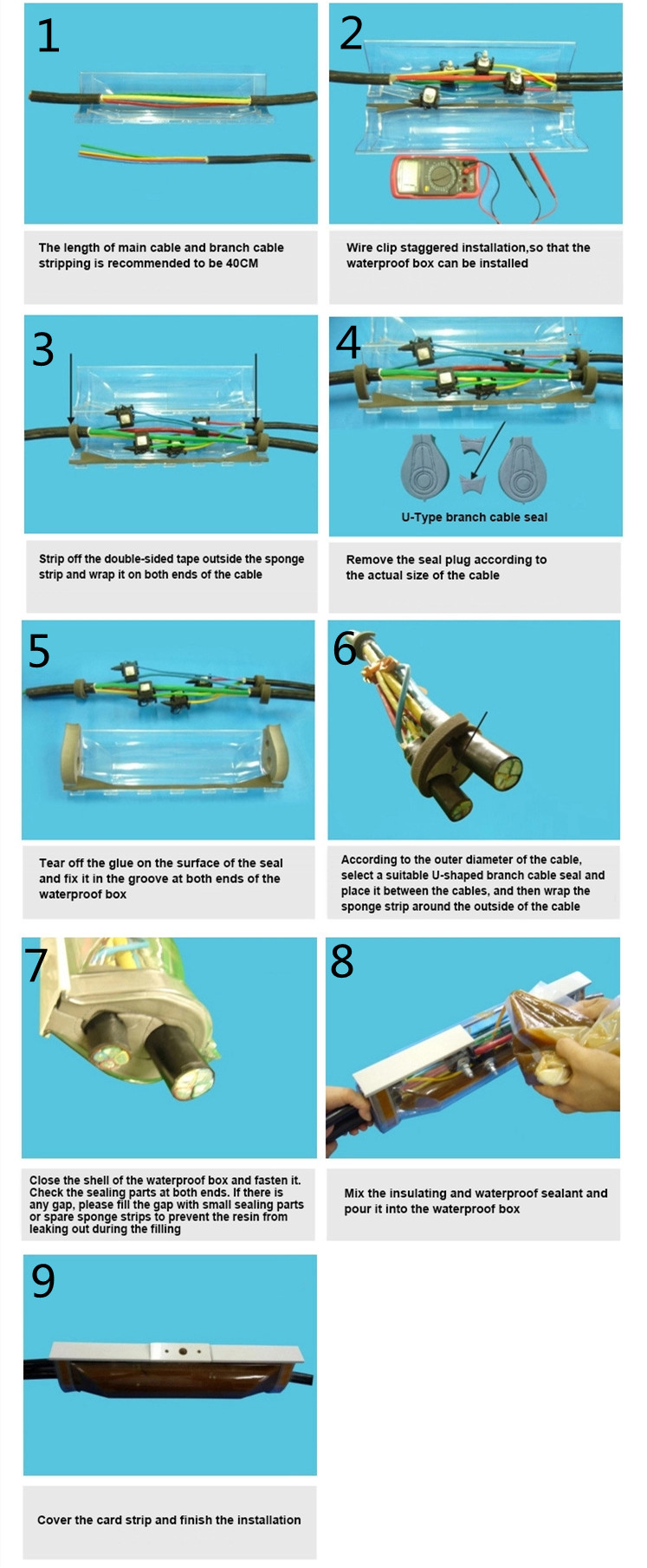

INSTALLATION DIARGAM
