APG
APG
The forged aluminium clamps was for aluminium to aluminium connection throughout the conductor range.The clamps have serrated transverse grooves for maximum conductor contact.
1.Select high strength,corrosion-resistant,aluminum 99.5%.
2.Teeth-shape structure,touch with lowly resistance,reliable splicing.
3.All parts connected with each other,it will not easy lose parts during installation.
4.An are embrace the most part,create better electric contact.
Datas
-
Type
Conductor Cross-section(mm²）
Bolt

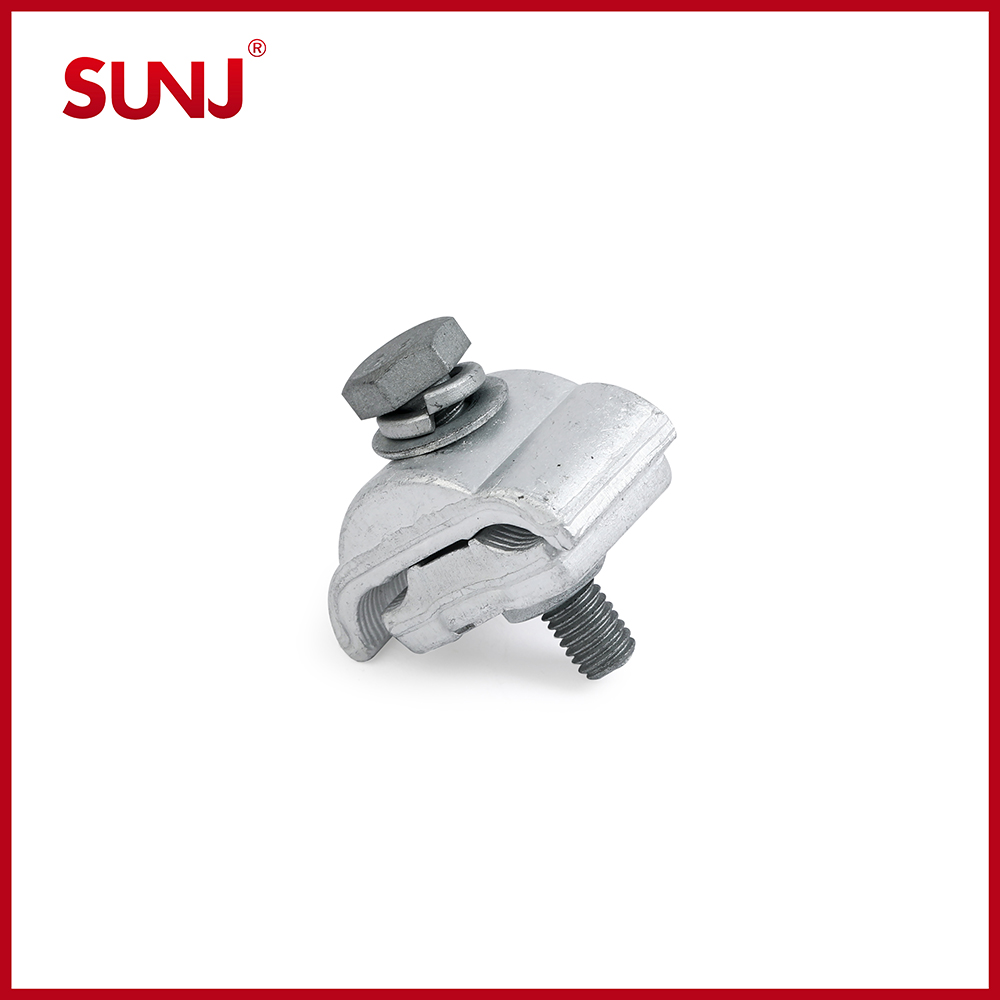

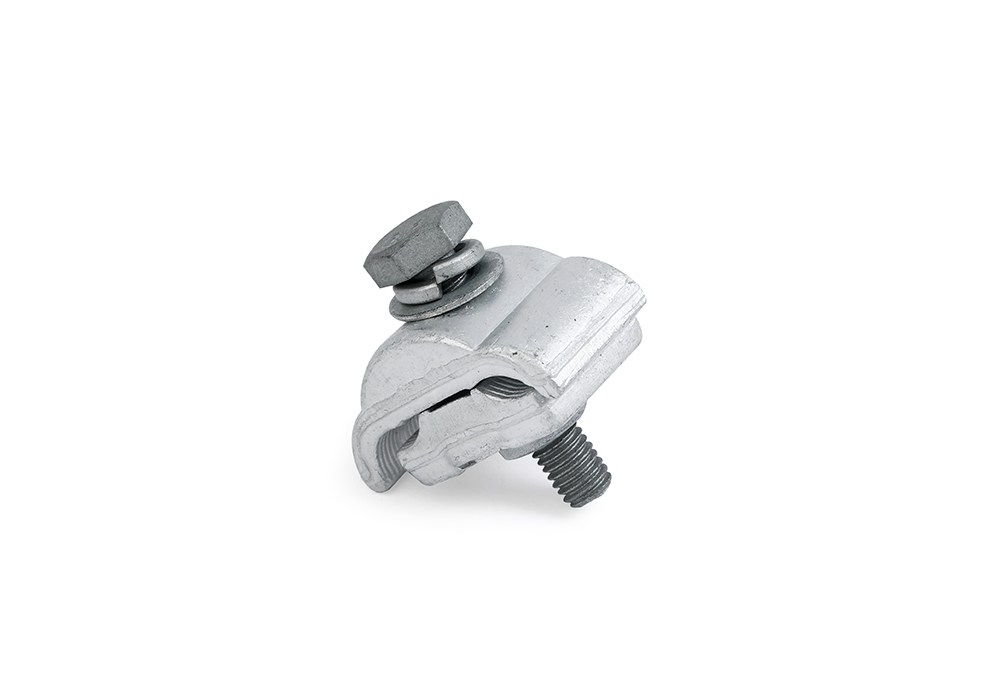

APG-A1
AL16-70
1*M8*40
APG-A2
AL25-150
1*M8*45
-
Type
Conductor Cross-section(mm²）
Bolt

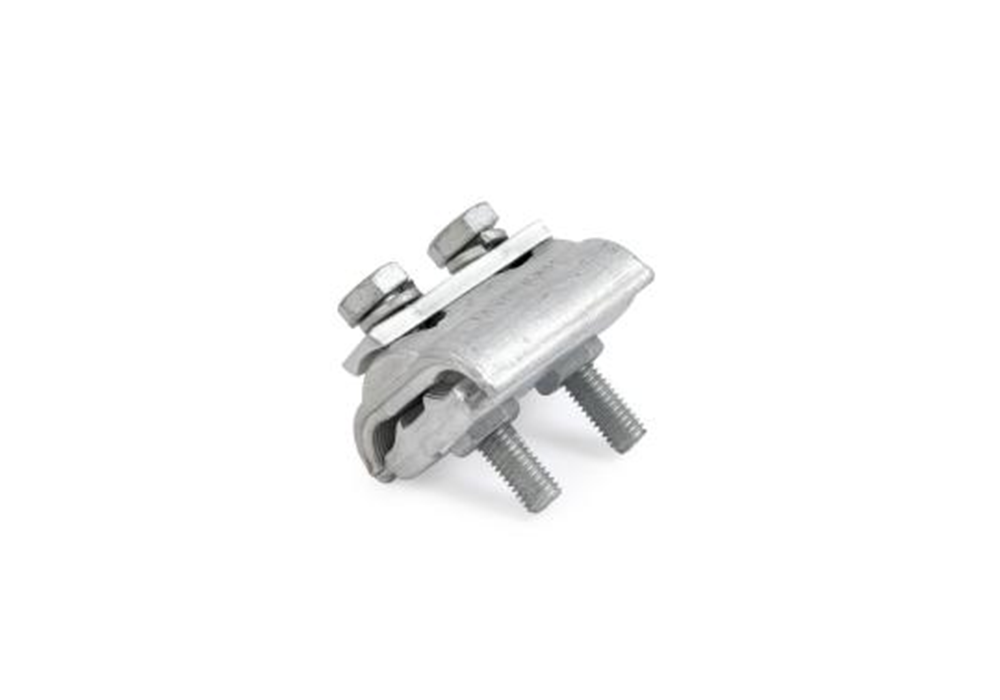

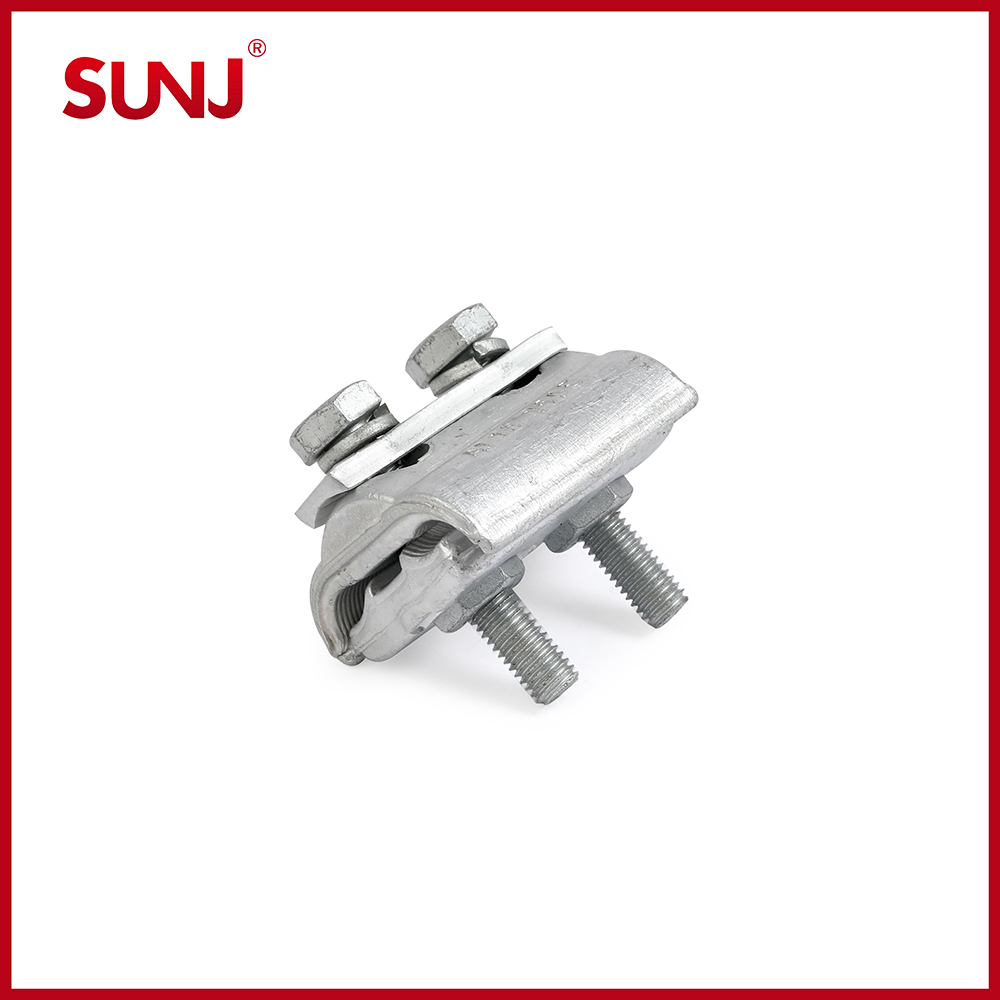

APG-B1
AL6-35
2*M6*35
APG-B2
AL16-70
2*M8*45
APG-B3
AL25-150
2*M8*50
APG-B4
AL25-240
2*M10*60
APG-B5
AL35-300
2*M10*70
-
Type
Conductor Cross-section(mm²）
Bolt

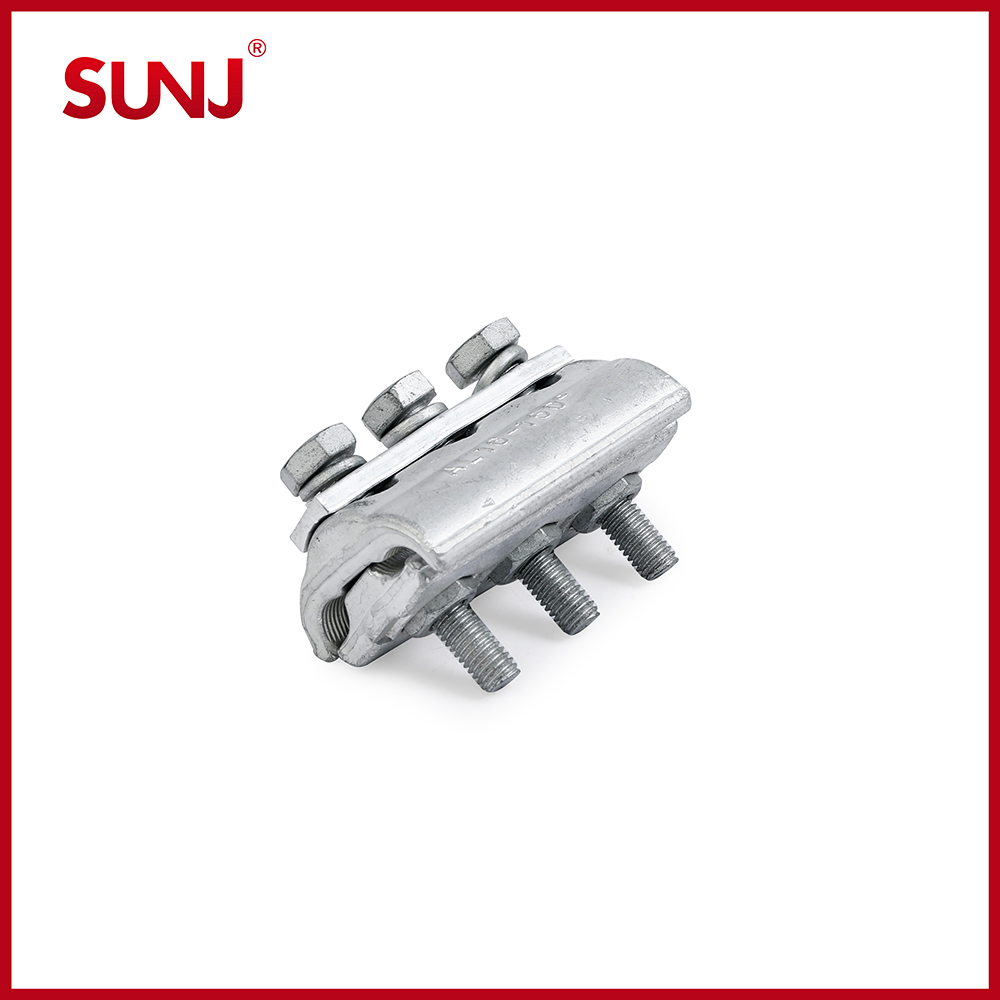

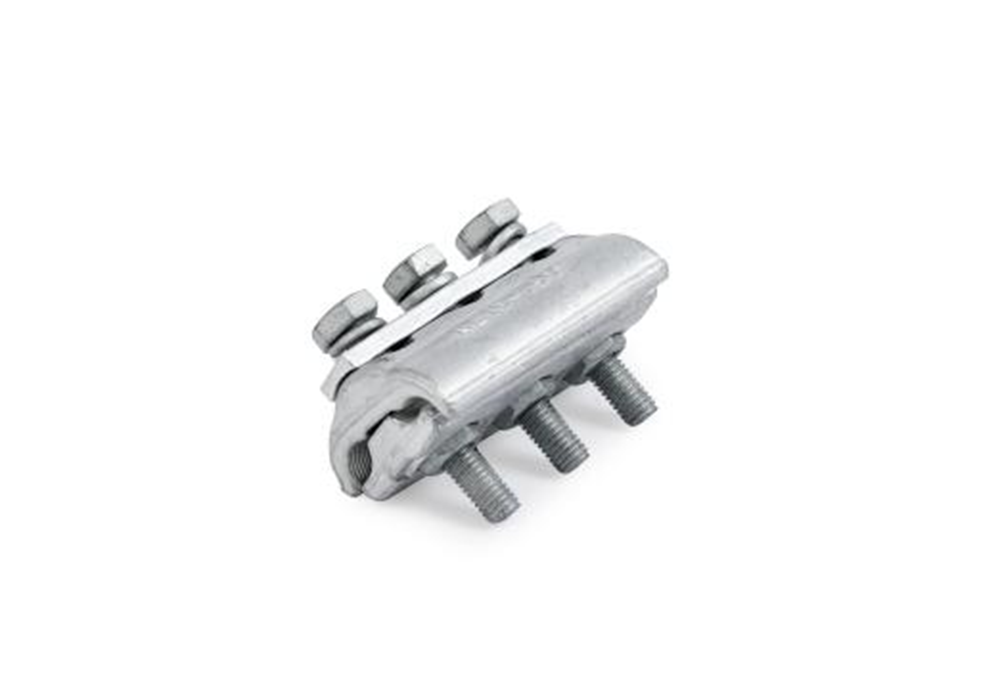

APG-C1
AL16-70
3*M8*45
APG-C2
AL25-150
3*M8*50
APG-C3
AL25-240
3*M10*60
APG-C4
AL35-300
3*M10*70
