AUS
AUS

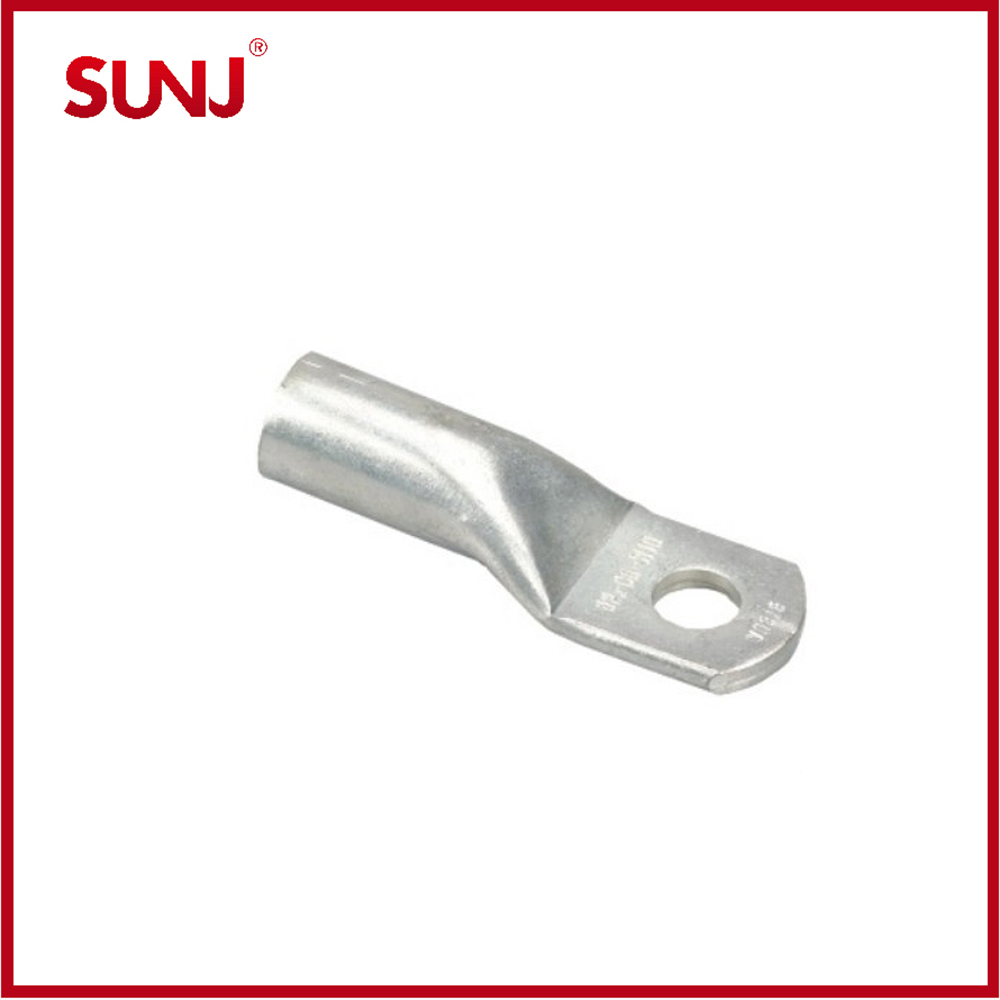

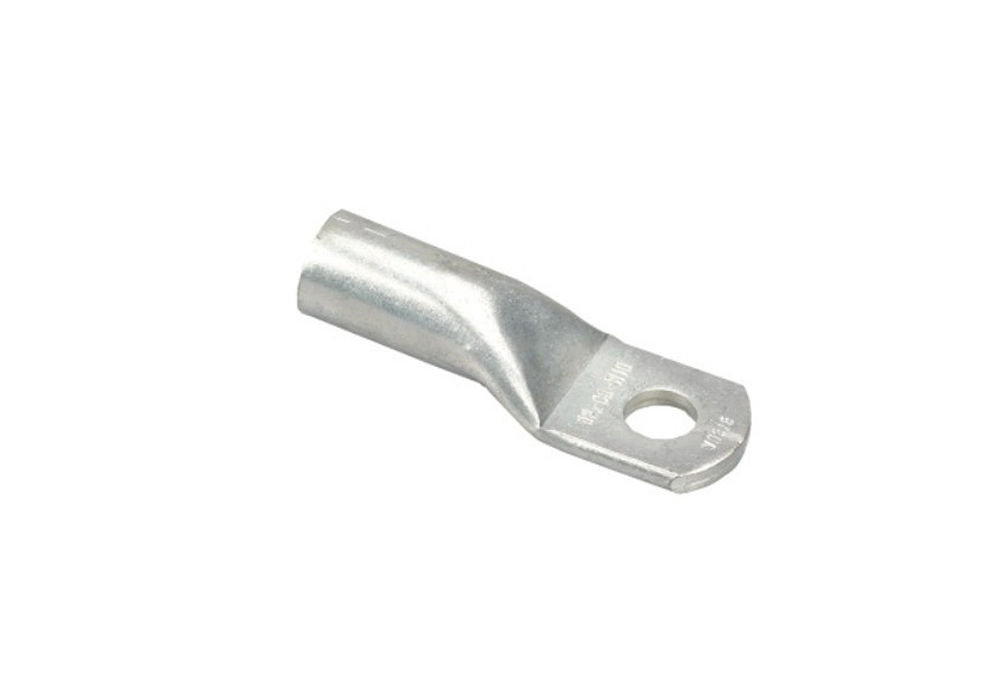

Used for connection of copper cable with copper end of electrical equipment in medium voltage.
Material:CU≥99.9%
Sudface:tin plated
1.Clear markings on barrel to indicate correct crimping location,together with DIN standard crimping die.

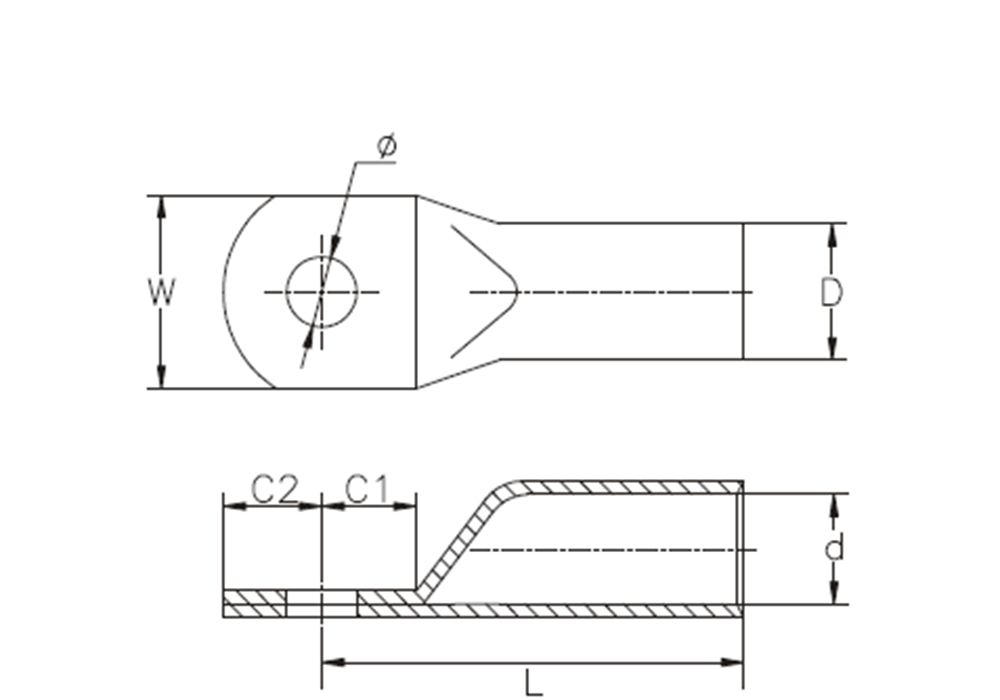

Datas
|
Type |
φ±0.5 |
D±0.5 |
d±0.5 |
L±2 |
C1±0.5 |
C2±0.5 |
W±1.5 |
|
AUS-10 |
φ6.5,φ8.5 |
6.5 |
5 |
29 |
8 |
8 |
9.5 |
|
AUS-16 |
φ6.5,φ8.5 |
8 |
6 |
36.5 |
10 |
10 |
11.5 |
|
AUS-25 |
φ6.5,φ8.5,φ10.5 |
10.5 |
8 |
36.5 |
12 |
12 |
15.3 |
|
AUS-35 |
φ8.5,φ10.5 |
12.5 |
9.5 |
41.5 |
13 |
13 |
18 |
|
AUS-50 |
φ8.5,φ10.5,φ12.5 |
14.5 |
11 |
54 |
15 |
15 |
20.5 |
|
AUS-70 |
φ8.5,φ10.5,φ12.5 |
16.5 |
13 |
57 |
15 |
15 |
24 |
|
AUS-95 |
φ10.5,φ12.5,φ14.5 |
19 |
14.5 |
63 |
15 |
15 |
27.5 |
|
AUS-120 |
φ10.5,φ12.5,φ14.5 |
20.5 |
16 |
68 |
16 |
16 |
30 |
|
AUS-150 |
φ10.5,φ12.5,φ14.5 |
23.5 |
18 |
79 |
16 |
16 |
34 |
|
AUS-185 |
φ10.5,φ12.5,φ14.5 |
26 |
20.5 |
82 |
17 |
17 |
38 |
|
AUS-240 |
φ10.5,φ14.5 |
28 |
22.5 |
90 |
21 |
21 |
41 |
|
AUS-300 |
φ16.5 |
30 |
23.5 |
99 |
21 |
21 |
43 |
