BSMB
BSMB

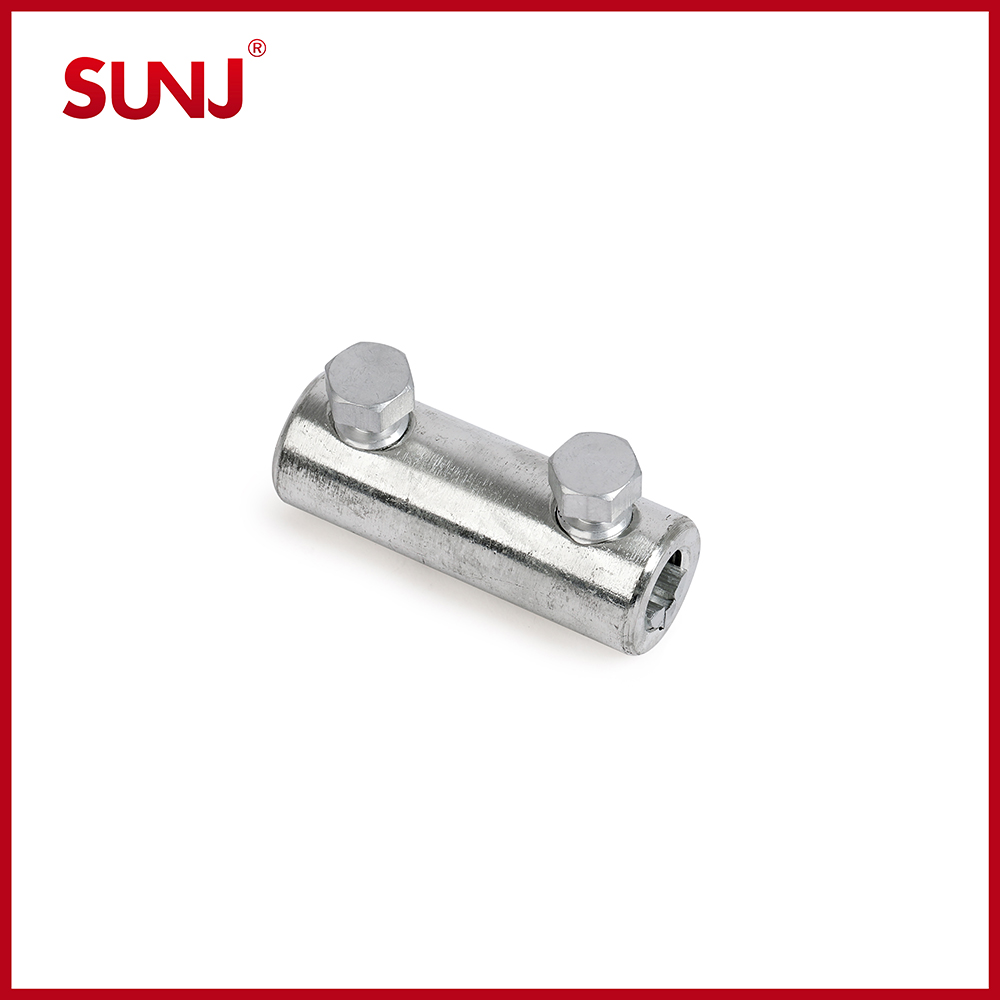

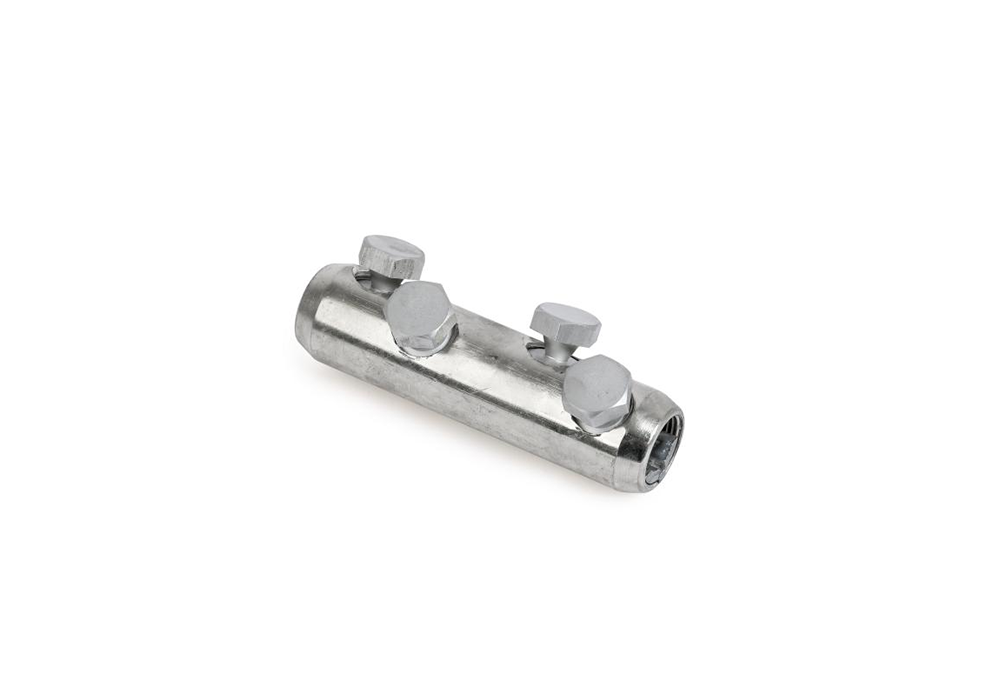

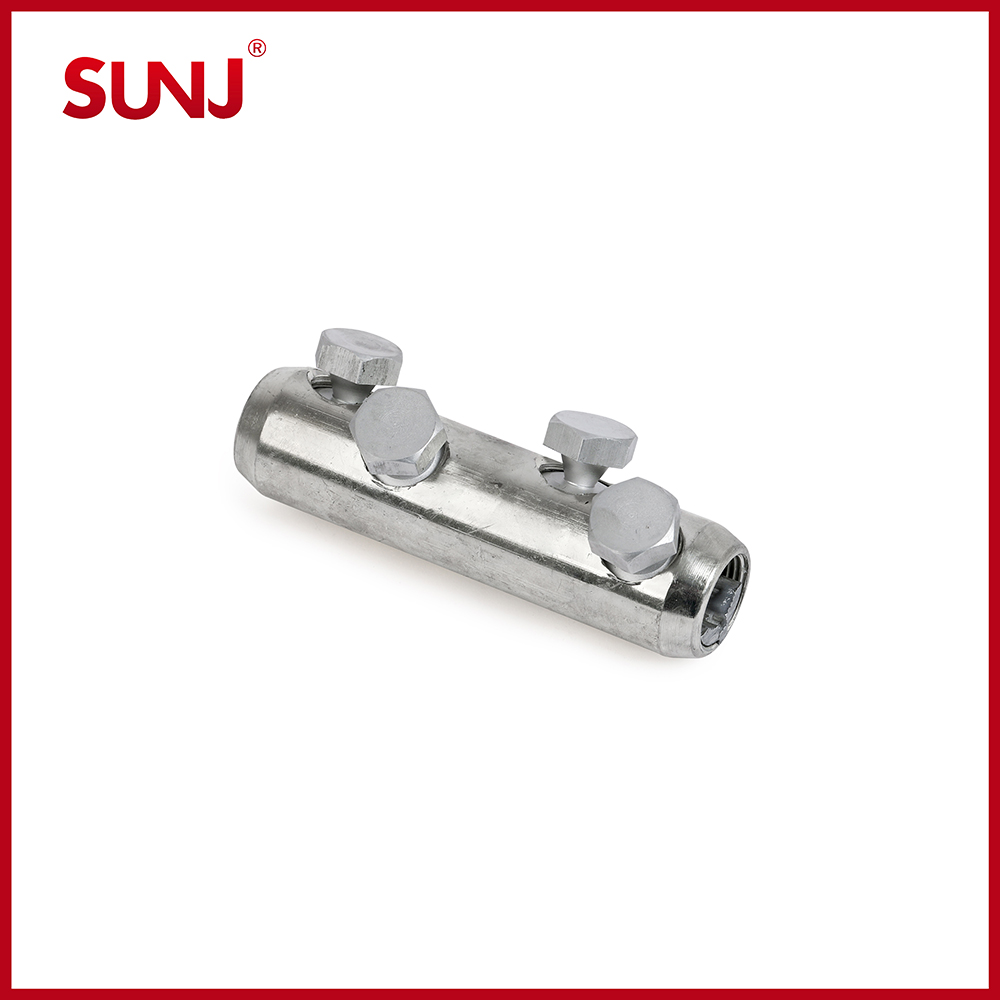

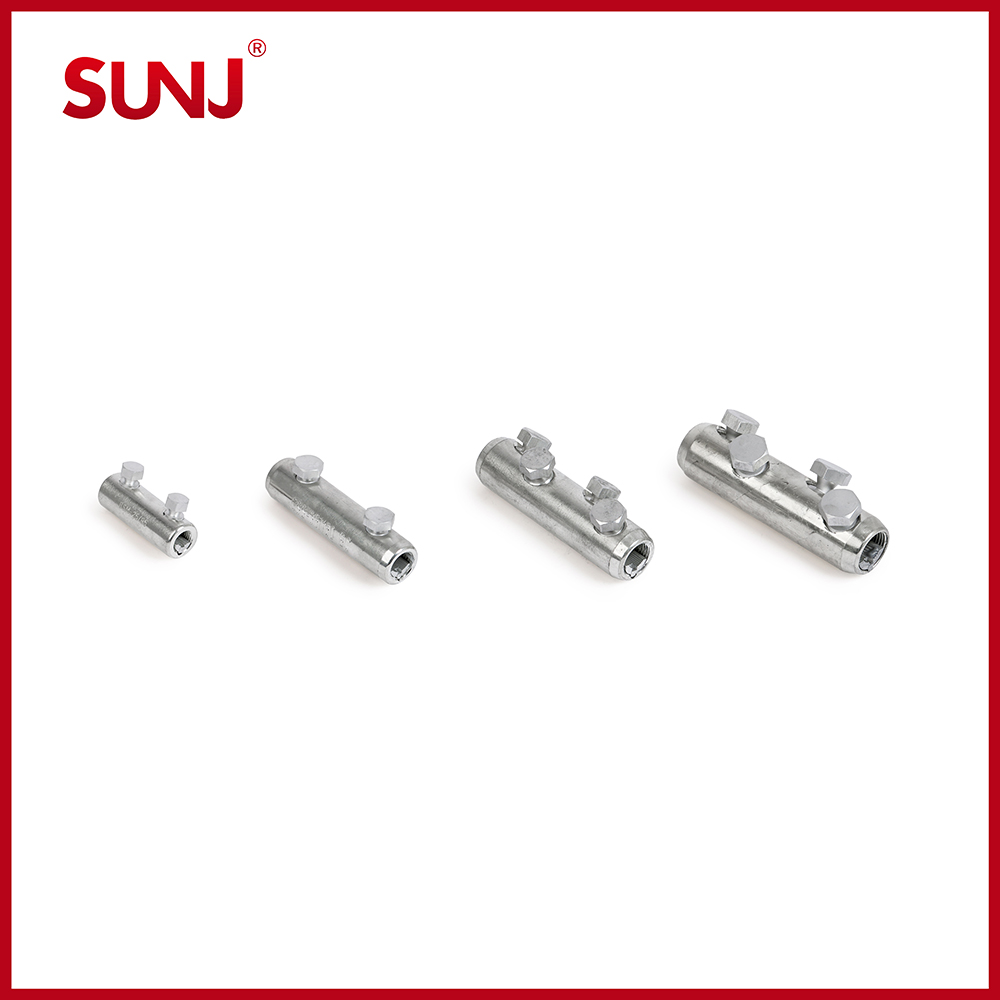

BSMB Mechanical aluminum lug used for intermediate connection of copper cable,aluminum cable and aluminum alloy cable in medium voltage.
Body:High strength aluminum alloy
Bolts:Brass or aluminum alloy
Surface:tin plated
Structure Feature
1. Centre with block.
2. No needs of crimping tools but only a socket spanner or a wrench.
3. Torque controlled shear head bolts won’t cause any damage to conductor,and make connectors’ working performance more stable.
4. Wide application range.
5. Prefilled with jointing compound.

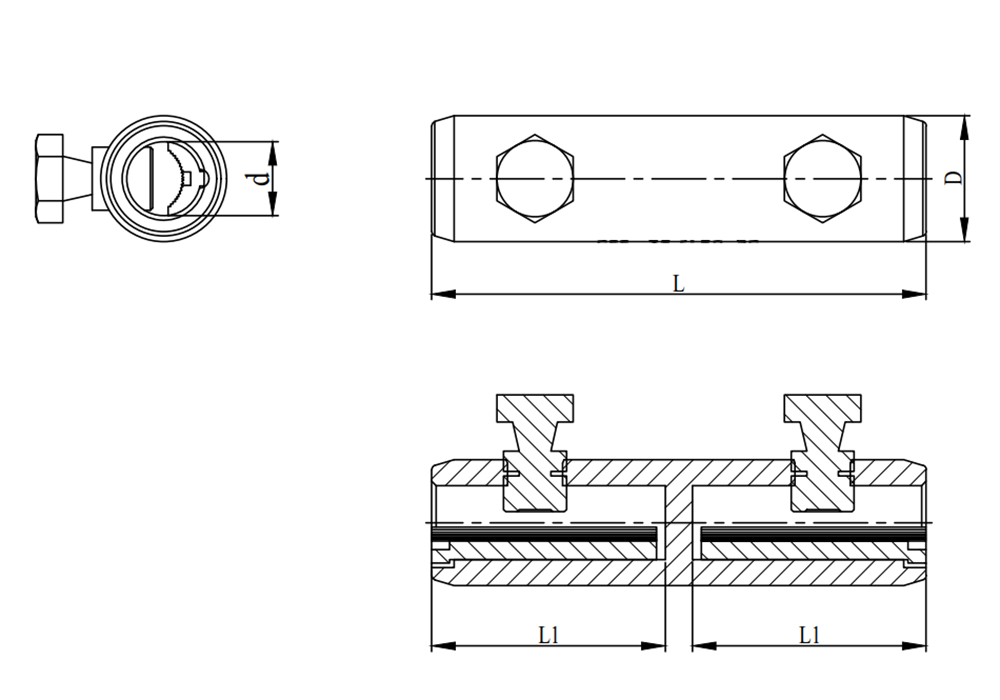

Datas
|
Type |
Cross section(mm²） |
L |
L1 |
D |
d |
No.of bolt |
AF |
|
BSMB-25/95 |
25-95 |
66 |
32 |
24 |
12.5 |
2 |
13 |
|
BSMB-35/150 |
35-150 |
110 |
44 |
28 |
16.5 |
2 |
17 |
|
BSMB-95/240 |
95-240 |
125 |
59 |
33 |
20 |
4 |
19 |
|
BSMB-120/300 |
120-300 |
139 |
65 |
37 |
24.5 |
4 |
22 |
