CAPG
CAPG

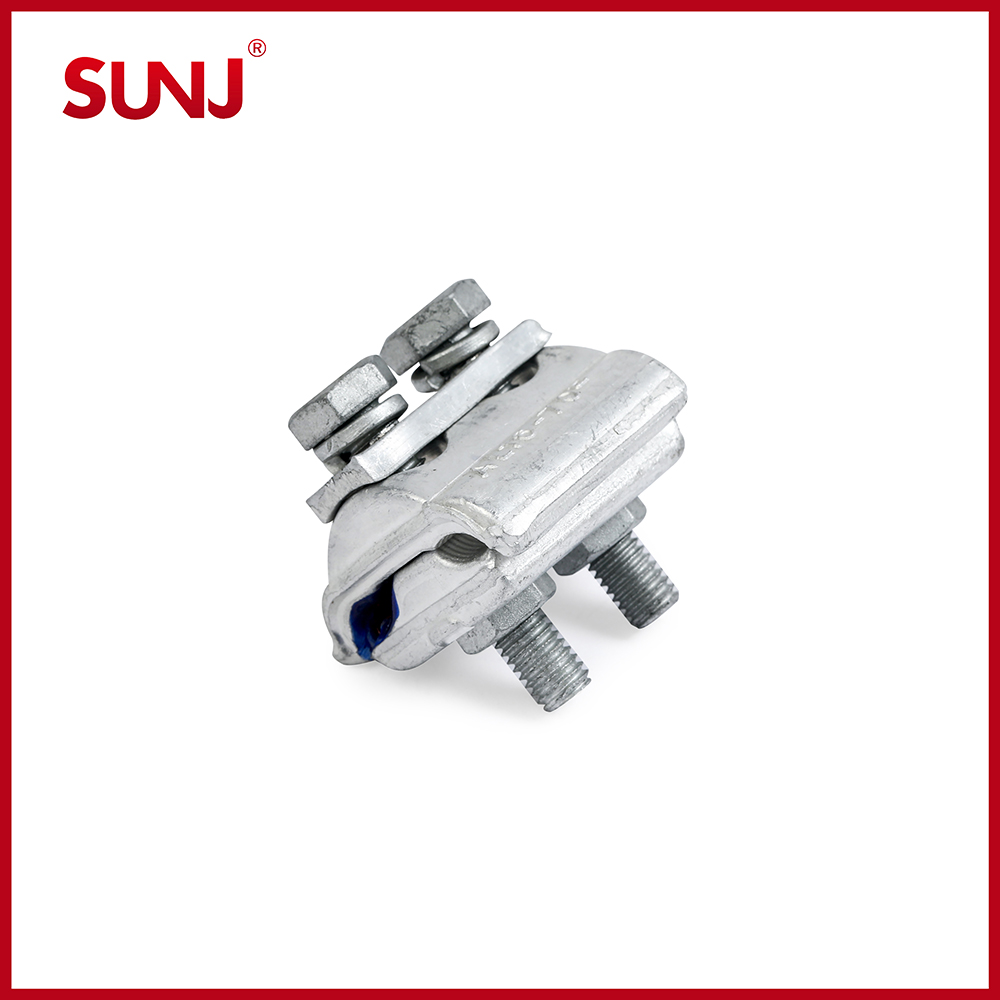

CAPG bimetallic parallel groove clamp is suitable for connection of AL conductors & ACSR conductors with copper tap-off conductors .
1.Select corrosion-resistance aluminum 99.5% with hot forged bimetallic sheet.
2.Teeth-shape structure,touch with lowly resistance,reliable splicing.
Datas
-
Type
Conductor Cross-section(mm²）
Bolt

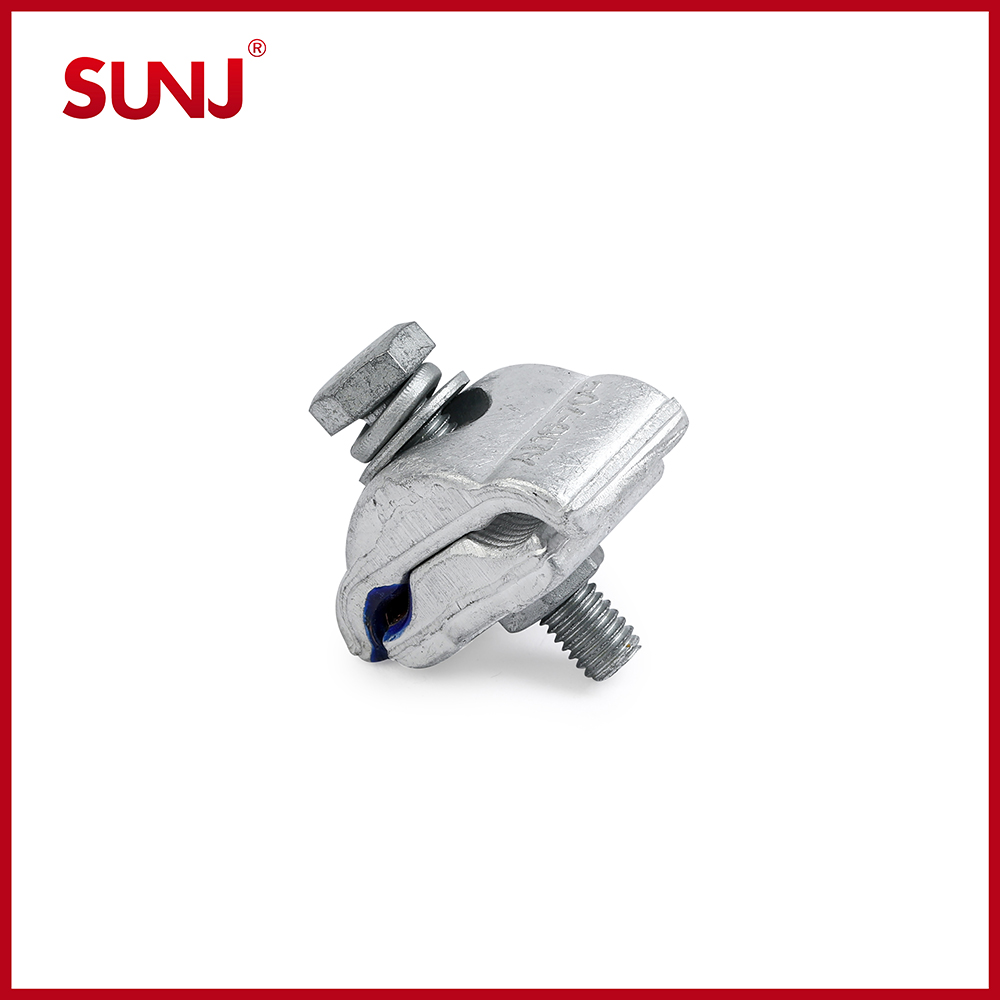

CAPG-A1
CU6-50,AL16-70
1*M8*40
CAPG-A2
CU10-95,AL25-150
1*M8*45
-
Type
Conductor Cross-section(mm²）
Bolt

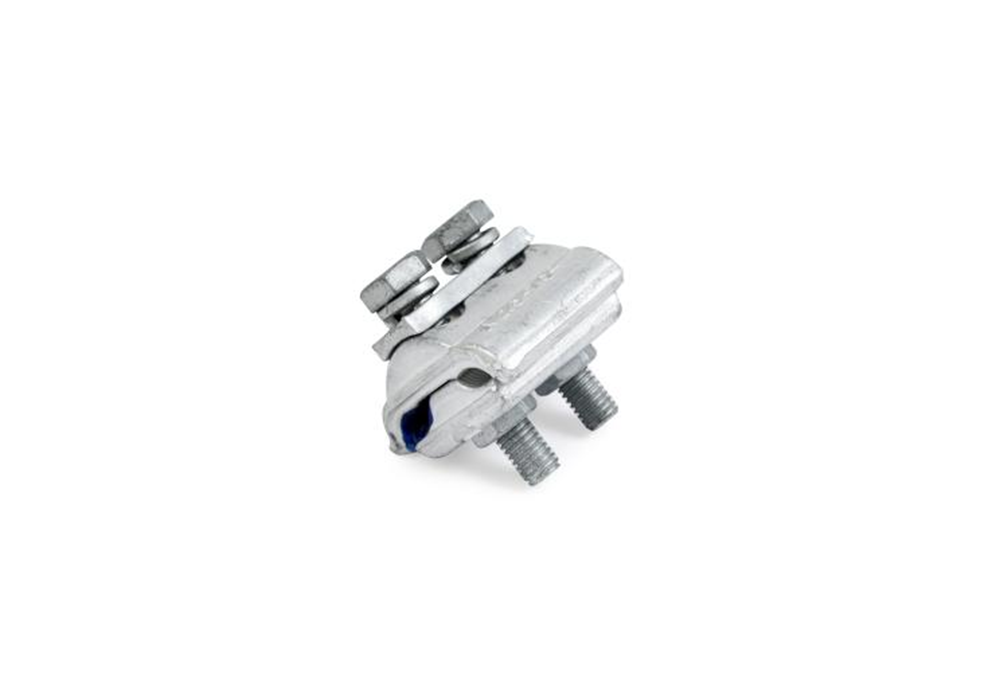

CAPG-B1
CU6-50,AL16-70
2*M8*45
CAPG-B2
CU10-95,AL25-150
2*M8*50
CAPG-B3
CU25-200,AL25-240
2*M10*60
CAPG-B4
CU35-240,AL35-300
2*M10*70
-
Type
Conductor Cross-section(mm²）
Bolt

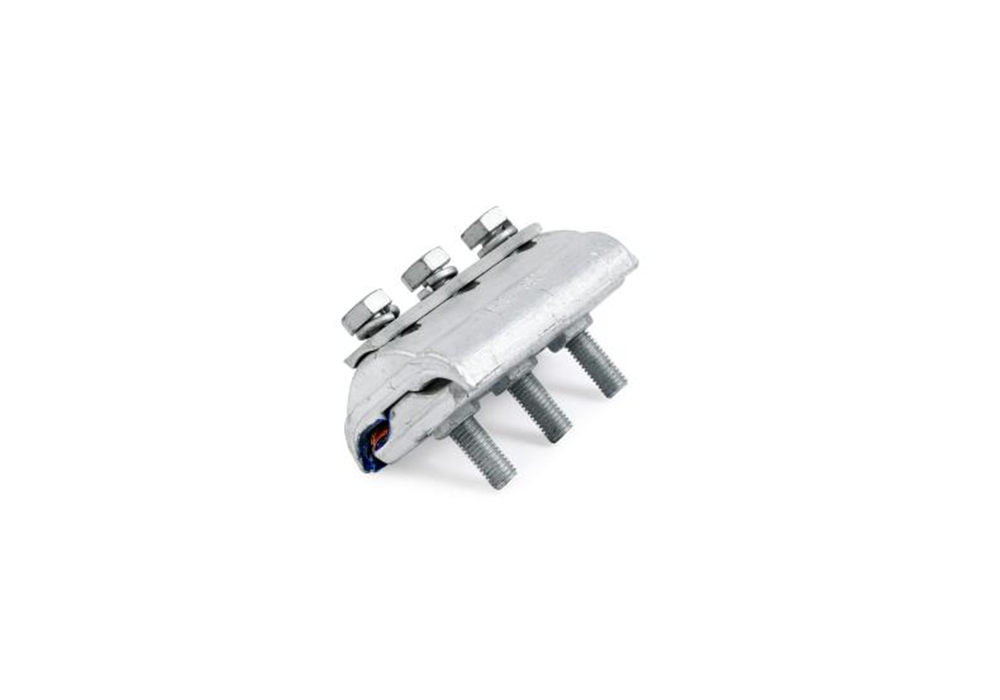

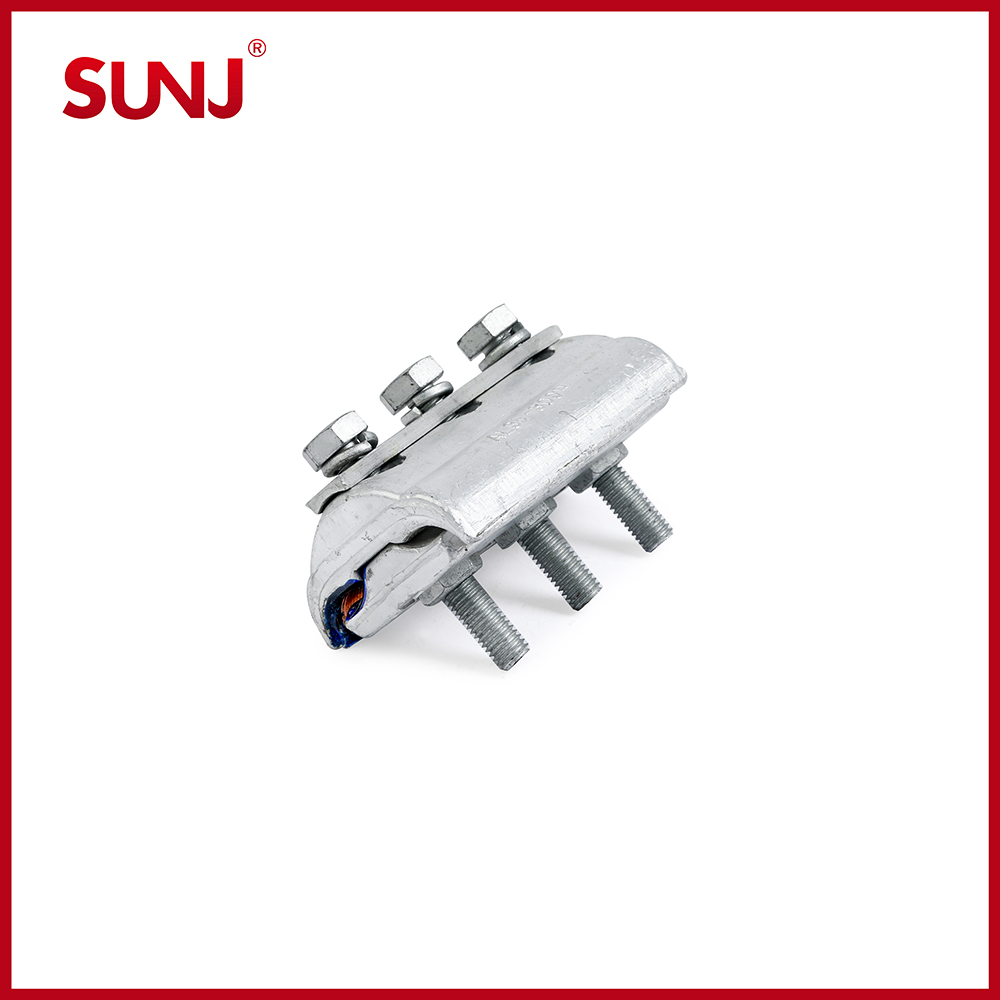

CAPG-C1
CU6-50,AL16-70
3*M8*45
CAPG-C2
CU10-95,AL25-150
3*M8*50
CAPG-C3
CU25-200,AL25-240
3*M10*60
CAPG-C4
CU35-240,AL35-300
3*M10*70
