CCT
CCT

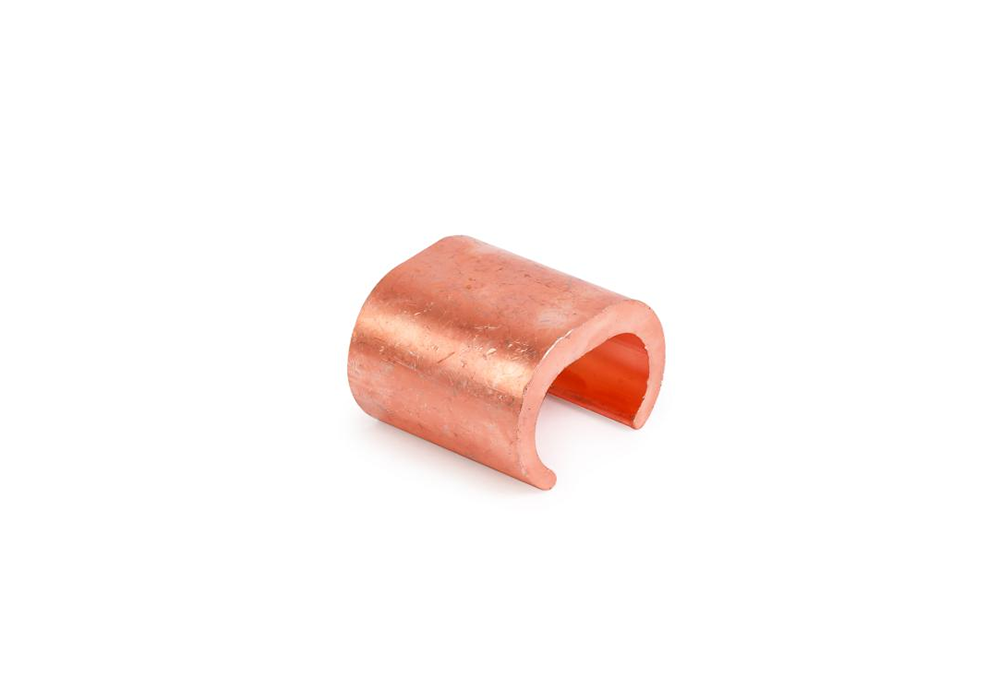

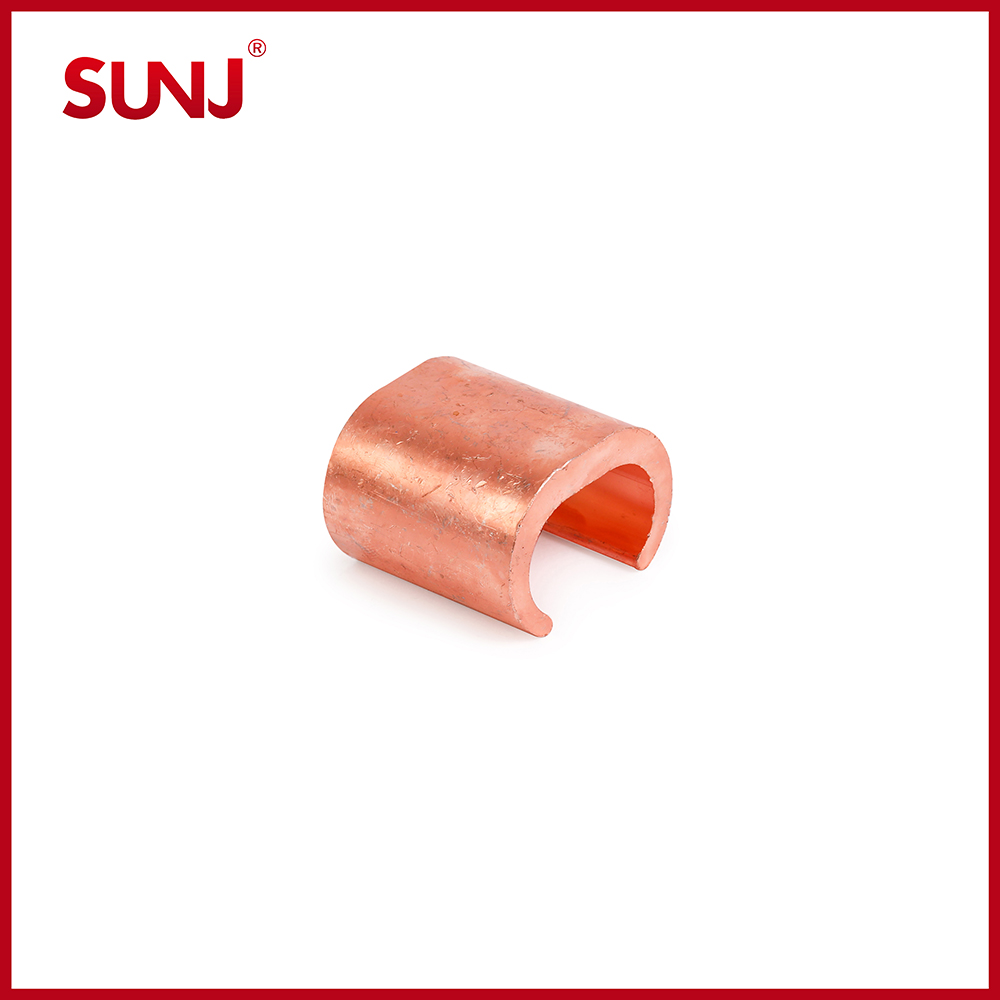

Crimp clamp CCT,designed to be gripped in the jaws or dies of installation tool,and then slipped directly over line for easy installation,also used for deadending.
1. Made of pure electrolytic copper
2. High withstand to corrosion in or above the ground
3. High capacity to flow fault-currents
4. Available for copper conductors
Datas
|

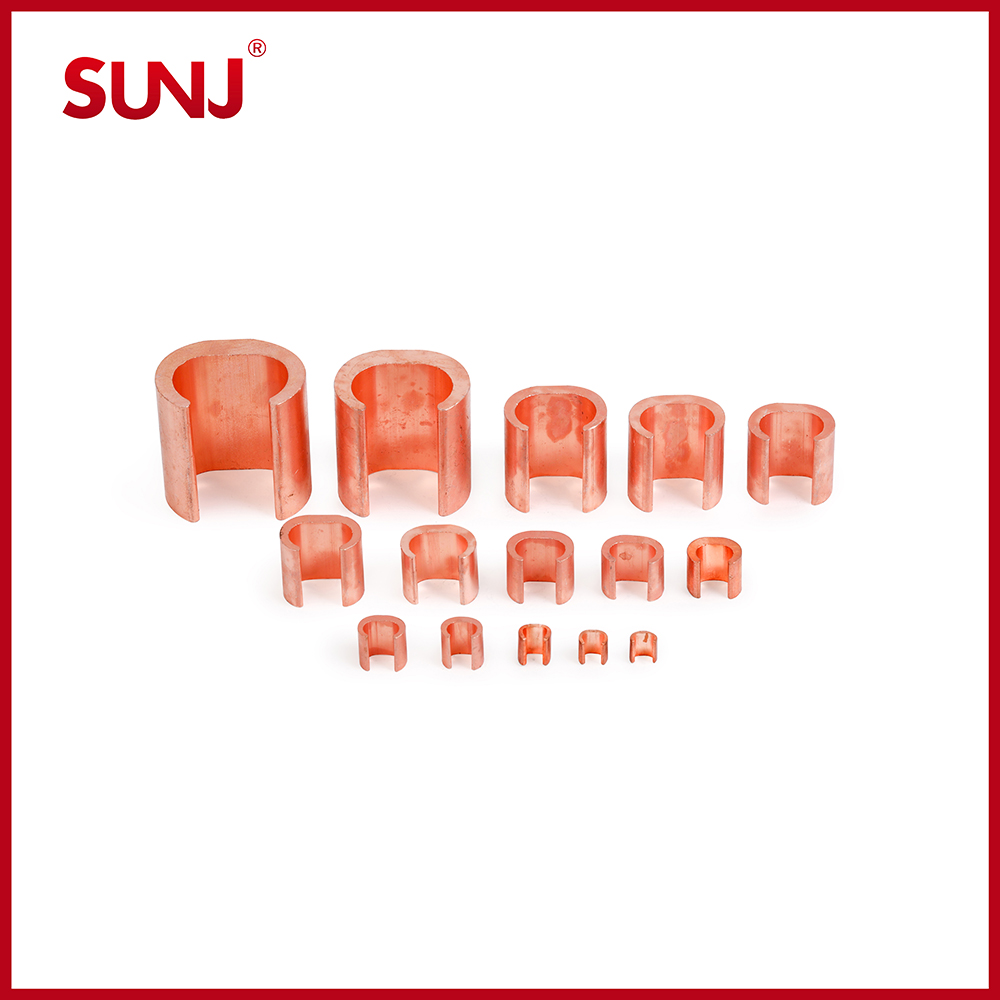

Type |
Conductor(mm²） |

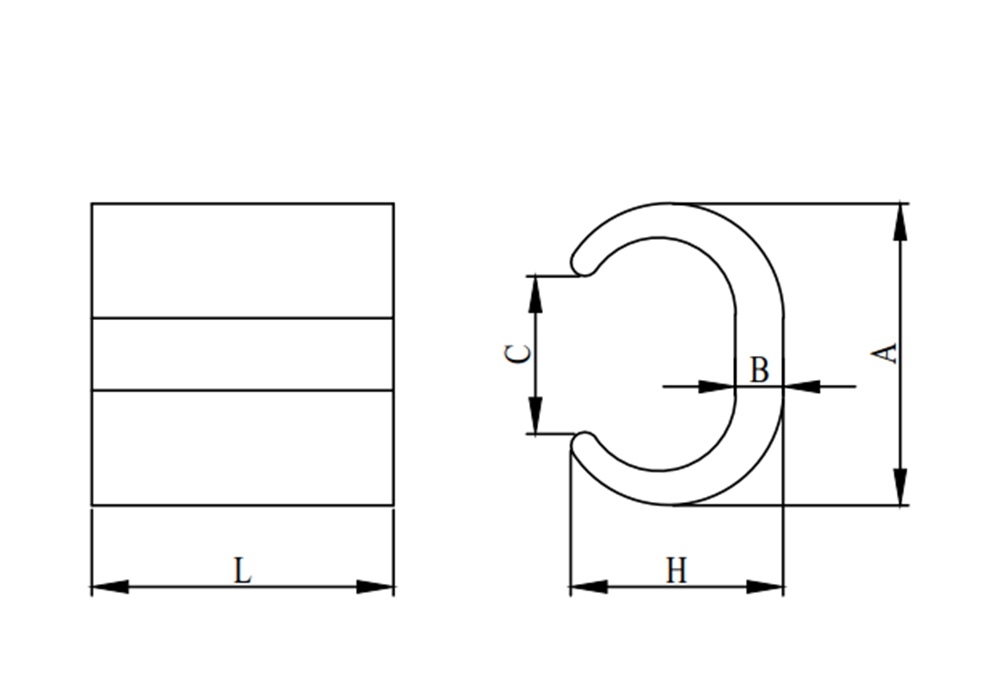

Dimensions(mm) |
||||
|
A |
H |
L |
B |
C |
||
|
CCT-16 |
14.5-16 |
12 |
7.4 |
13 |
1.7 |
7.5 |
|
CCT-20 |
16.5-20 |
13 |
9.7 |
13 |
1.8 |
7 |
|
CCT-26 |
21-26 |
14.7 |
10.6 |
16 |
2.3 |
7 |
|
CCT-44 |
27-44 |
18.5 |
14 |
19 |
3.7 |
8.8 |
|
CCT-60 |
45-60 |
21 |
14.8 |
20 |
4 |
10.8 |
|
CCT-76 |
61-76 |
24.5 |
18 |
21 |
5.3 |
12 |
|
CCT-98 |
77-98 |
28 |
18.8 |
23 |
5.2 |
14 |
|
CCT-122 |
99-122 |
30 |
21 |
26 |
5.5 |
14 |
|
CCT-154 |
123-154 |
34 |
24 |
28 |
6.5 |
18.5 |
|
CCT-190 |
155-190 |
36.5 |
24.5 |
34 |
5.4 |
17.2 |
|
CCT-240 |
191-240 |
40 |
28 |
38 |
6.7 |
19.5 |
|
CCT-288 |
141-288 |
44 |
31 |
44 |
7 |
22.8 |
|
CCT-365 |
289-365 |
47 |
33.5 |
48 |
6.5 |
24 |
|
CCT-450 |
366-450 |
57 |
41 |
60 |
10 |
28 |
|
CCT-560 |
451-560 |
62 |
45 |
62 |
11 |
31.5 |
|
CCT-700 |
561-700 |
68 |
50 |
67 |
12 |
34.5 |
