CPTAU
CPTAU

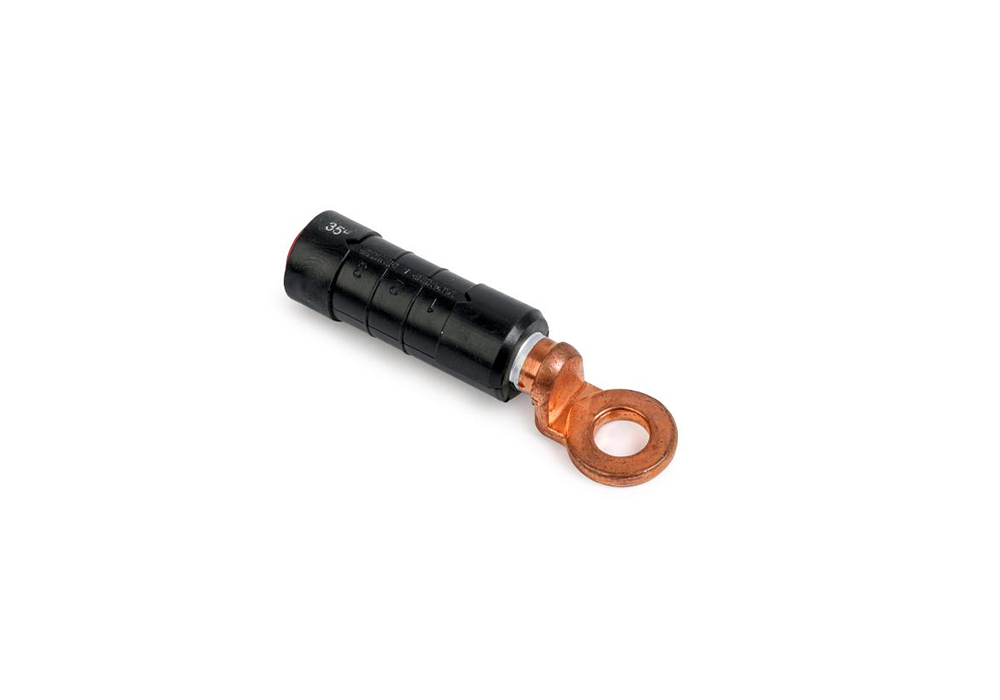

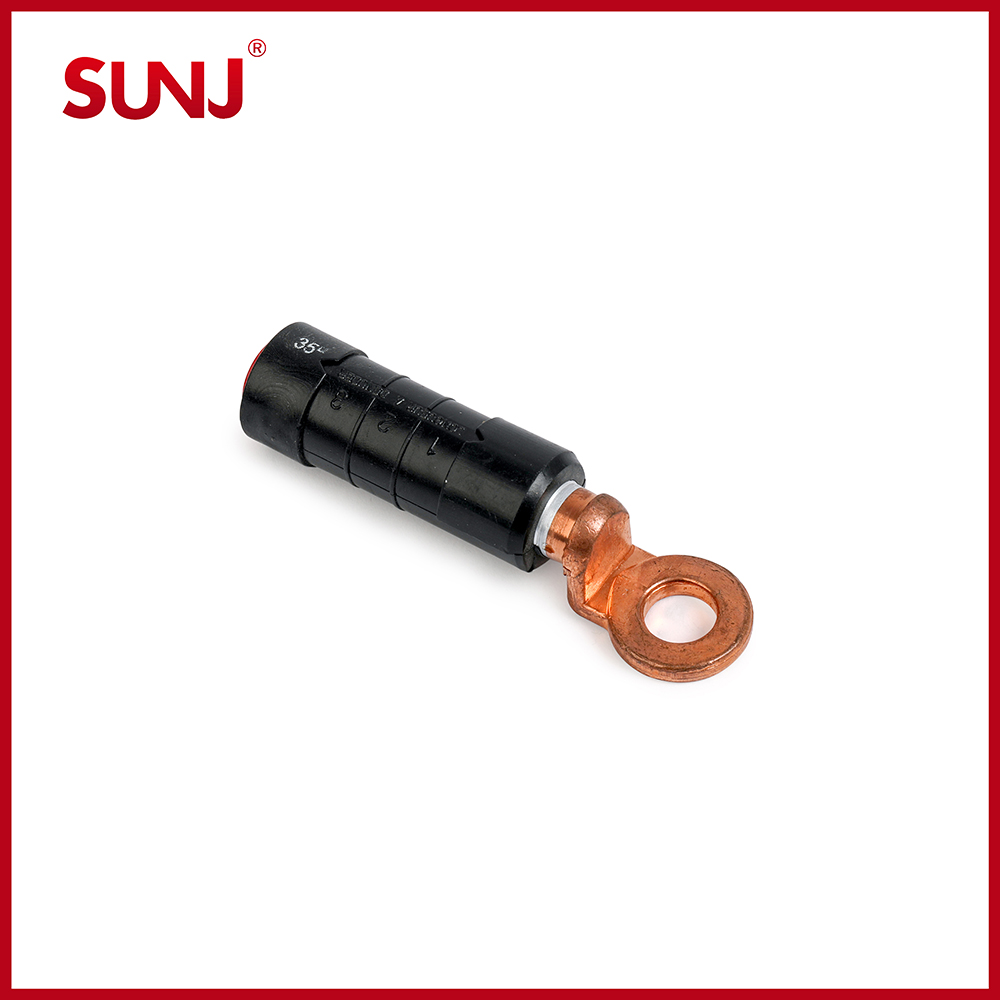

CPTAU pre-insulated bimetal lugs are used to establish connection between low voltage aerial cable and electrical equipments.
Material: barrel:Al≥99.5% palm:Cu≥99.9%
1. Insulation sheath is made of weather and UV resistant material.
2. Clear marking on insulation sheath to indicate crimping die,crimping sequence and times,cross-section of conductor and stripping length.
3. Elastomeric caps and pre-filled silicone grease ensure superior waterproof.
4. Stripping of cable insulation is required before insertion.
5. Standard:EN 50483-4,NF C33-021

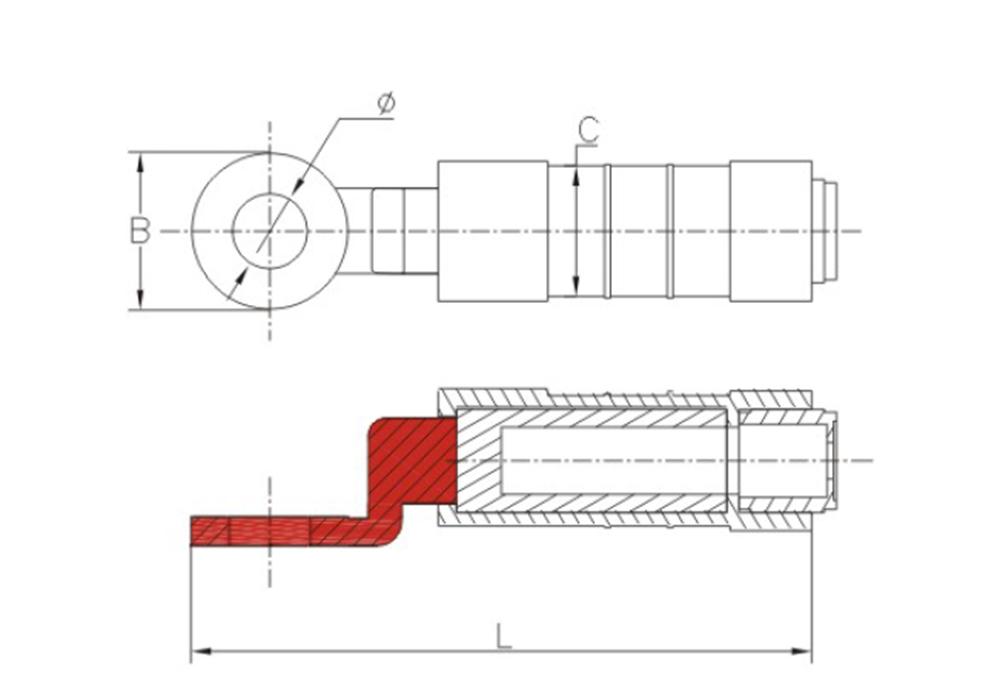

Datas
|
Type |
φ |
C |
B |
L |
Color code |
|
CPTAU 16-10 |
10.5 |
16 |
22 |
74.5 |
Blue |
|
CPTAU 25-12 |
13 |
16 |
22 |
74.5 |
Orange |
|
CPTAU 35-12 |
13 |
22 |
26 |
99.5 |
Red |
|
CPTAU 50-12 |
13 |
22 |
26 |
99.5 |
Yellow |
|
CPTAU 54.6-12 |
13 |
22 |
26 |
99.5 |
Black |
|
CPTAU 70-12 |
13 |
22 |
26 |
99.5 |
White |
|
CPTAU 95-12 |
13 |
22 |
26 |
99.5 |
Grey |
|
CPTAU 120-12 |
13 |
25/28 |
30 |
118 |
Pink |
|
CPTAU 150-12 |
13 |
25/28 |
30 |
118 |
Violet |
