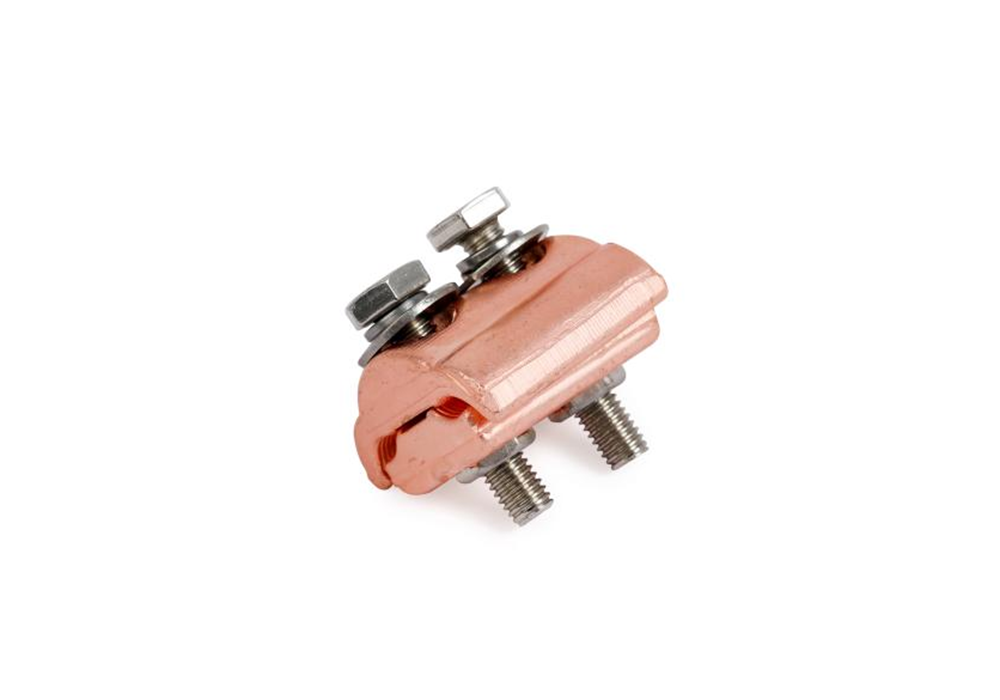

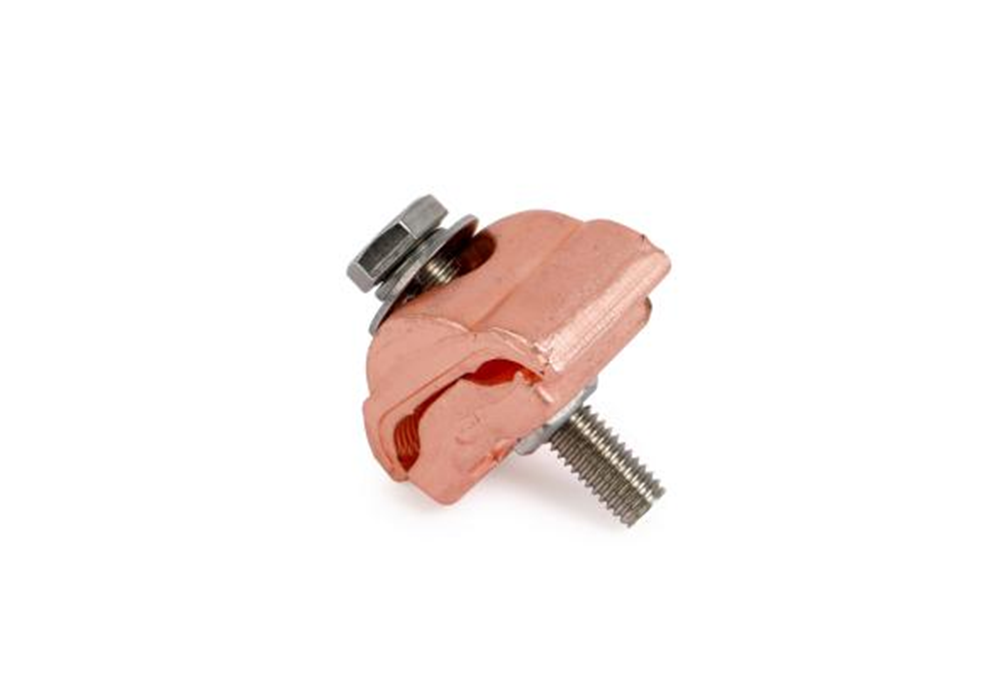

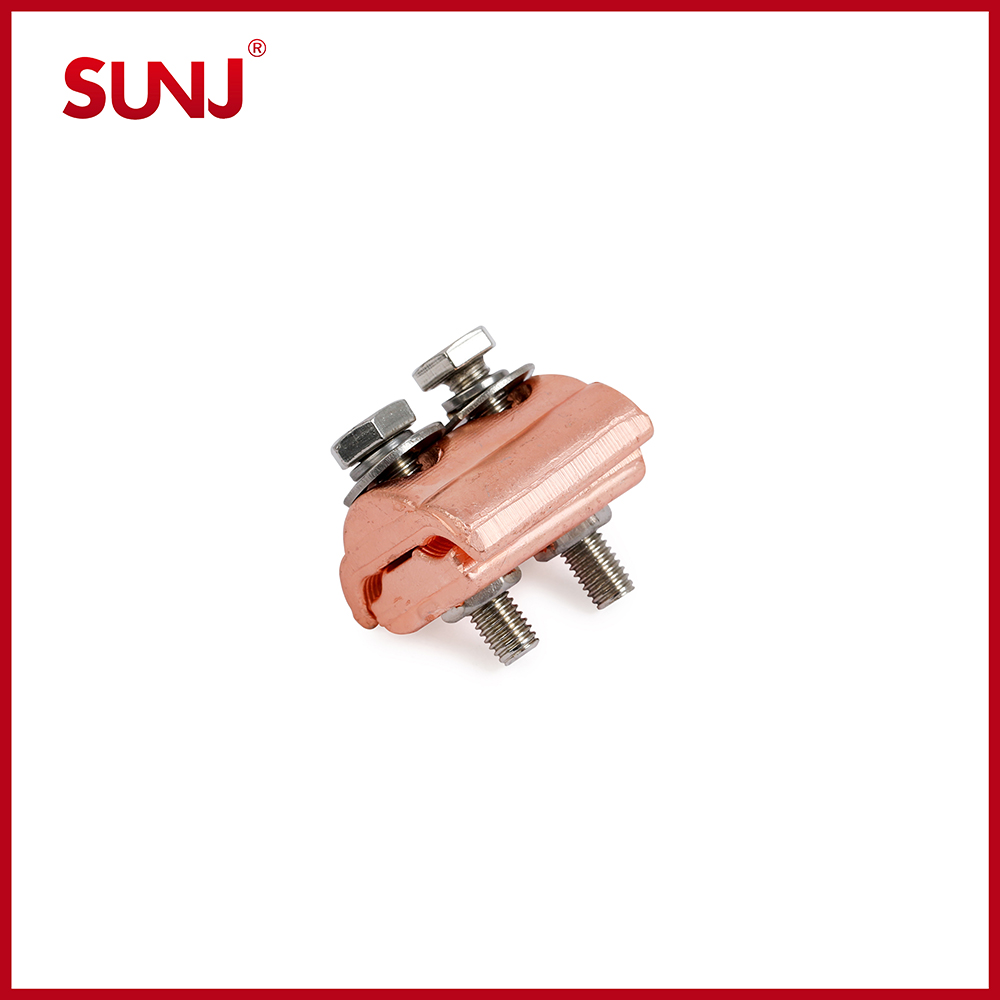

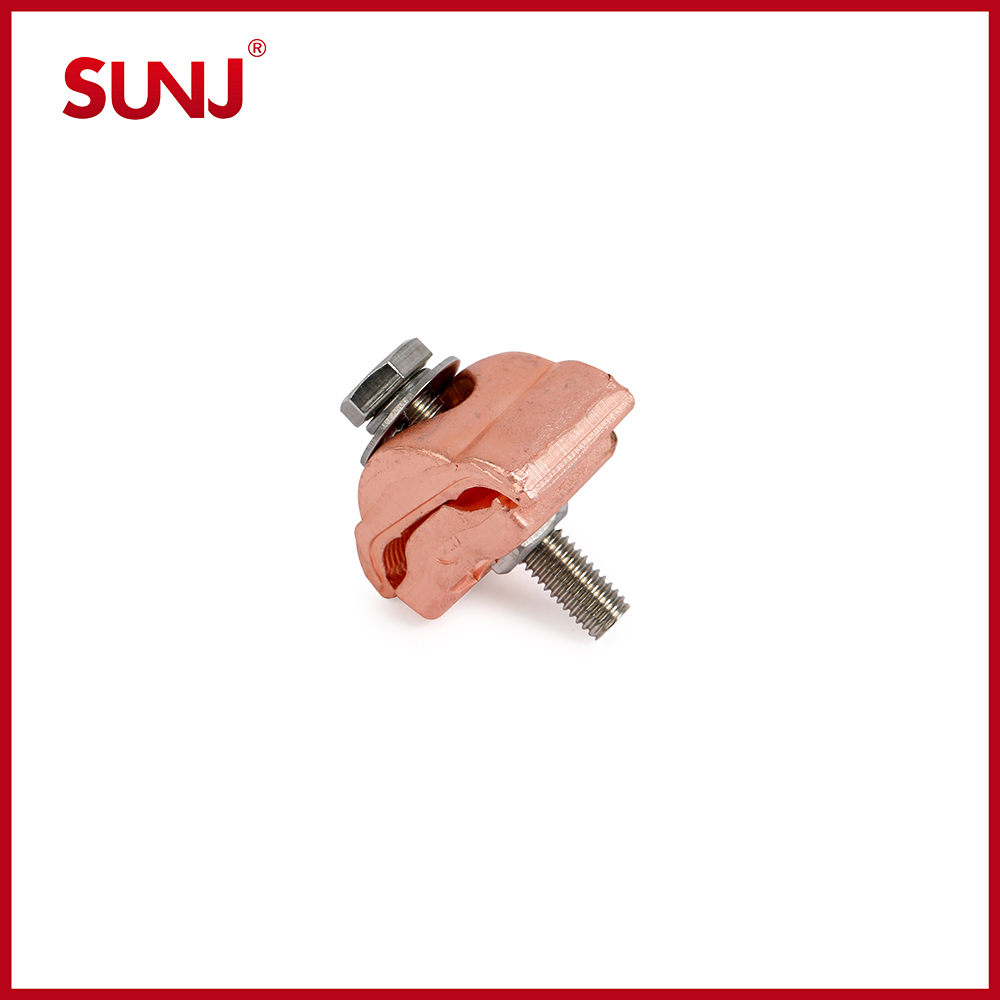

CUPG clamp was designed to connect two parallel bare conductors.Conductors can be copper stranded or rods.Material is forged copper for copper to copper connection throughout the conductor range.For tap-off connection of copper conductors.
1.The clamps have serrated transverse grooves for maximum conductor contact.
2.Stainless bolts and utilize Belleville washers to prevent thermal ratcheting under cyclic loads.
Datas
|
Type |
Conductor Cross-section(mm²） |
Bolt |
|
CUPG-A1 |
CU16-70 |
1*M8*40 |
|
CUPG-A2 |
CU25-150 |
1*M8*45 |
|
CUPG-B1 |
CU6-35 |
2*M6*35 |
|
CUPG-B2 |
CU16-70 |
2*M8*45 |
|
CUPG-B3 |
CU25-150 |
2*M8*50 |
|
CUPG-B4 |
CU25-240 |
2*M10*60 |
|
CUPG-B5 |
CU35-300 |
2*M10*70 |
|
CUPG-C1 |
CU16-70 |
3*M8*45 |
|
CUPG-C2 |
CU25-150 |
3*M8*50 |
|
CUPG-C3 |
CU25-240 |
3*M10*60 |
|
CUPG-C4 |
CU35-300 |
3*M10*70 |
