DT
DT

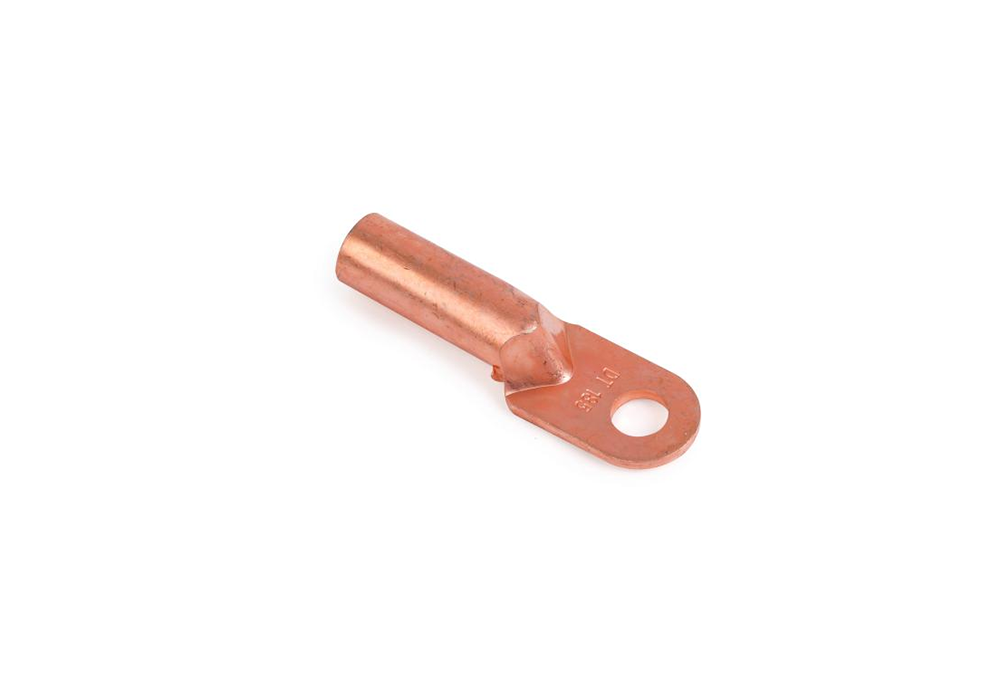

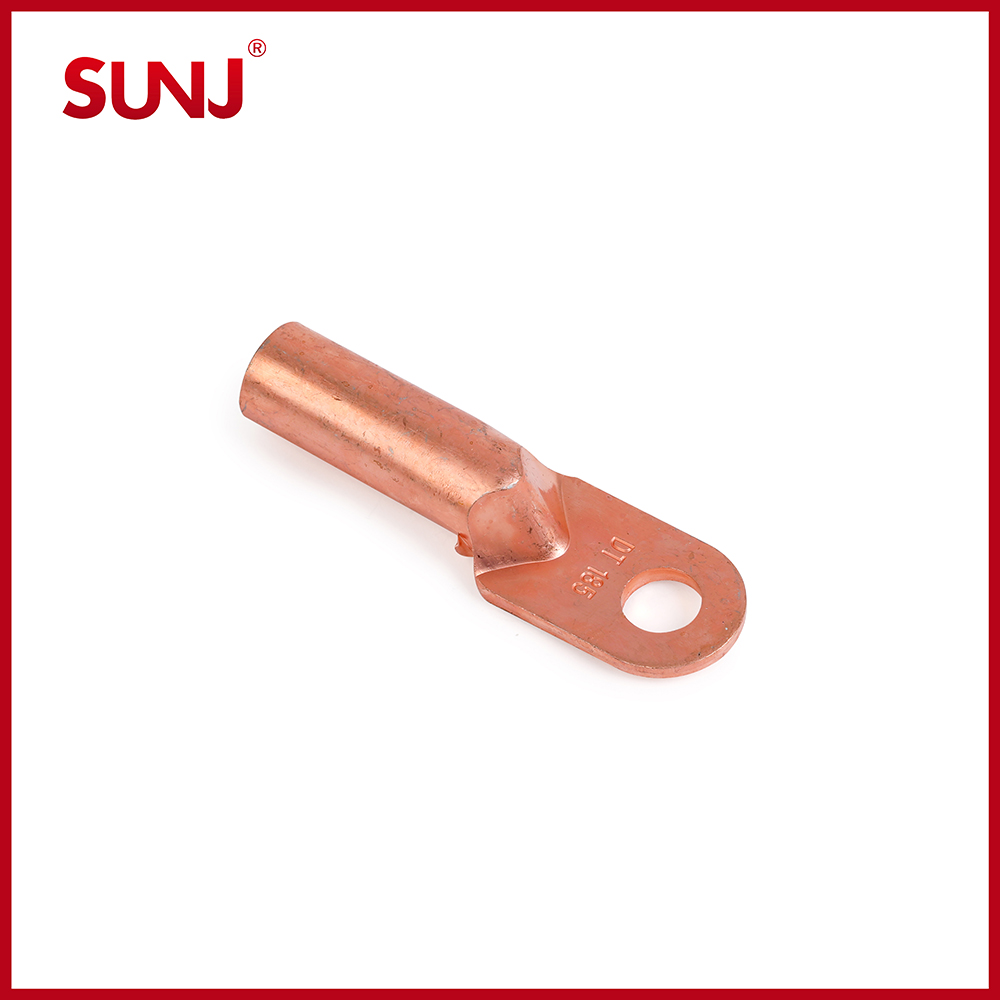

DT series copper lugs are suitable for the conjunction of wires cable in the distribution equipment and the electrical equipment.
|
Type |

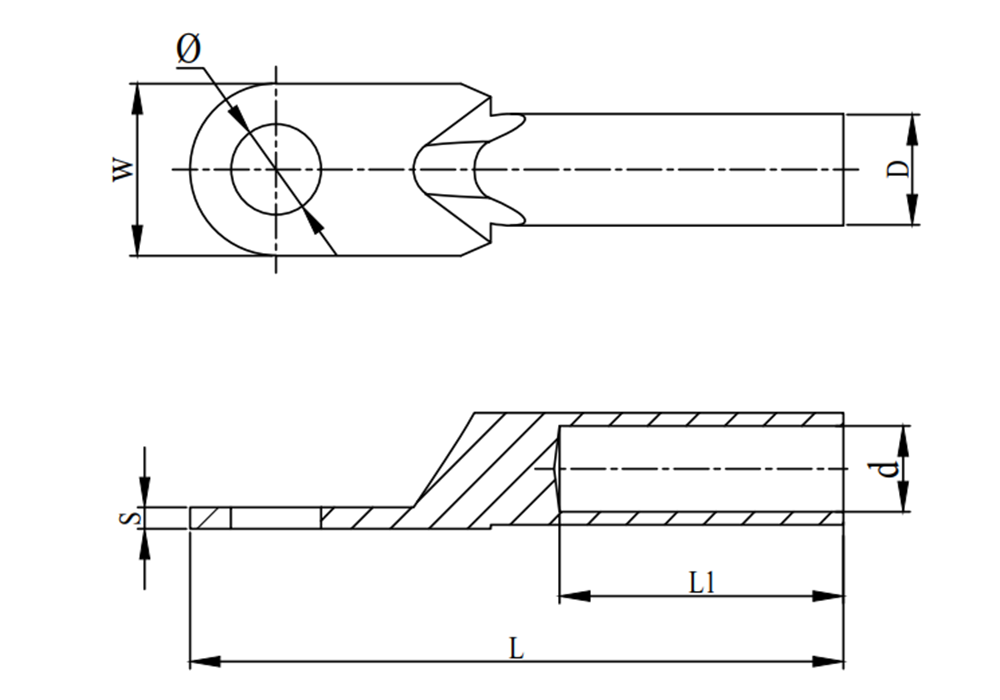

Dimension(mm) |
|||||
|
φ |
D |
d |
L |
L1 |
W |
|
|
DT-10 |
8.5 |
9 |
5.2 |
63 |
32 |
16 |
|
DT-16 |
8.5 |
10 |
6.2 |
66.2 |
33.4 |
16 |
|
DT-25 |
8.5 |
11 |
7 |
72 |
33.4 |
18 |
|
DT-35 |
10.5 |
12 |
8.2 |
75.8 |
39 |
20 |
|
DT-50 |
10.5 |
14 |
9.8 |
86.2 |
42 |
23 |
|
DT-70 |
12.5 |
16 |
11.4 |
93 |
45 |
26 |
|
DT-95 |
12.5 |
18 |
13.8 |
103 |
48 |
28 |
|
DT-120 |
14.5 |
20 |
14.8 |
110.4 |
50.2 |
30 |
|
DT-150 |
14.5 |
22 |
17.2 |
117.2 |
52.2 |
34 |
|
DT-185 |
16.5 |
25 |
19 |
124 |
57.4 |
37 |
|
DT-240 |
16.5 |
27 |
20.8 |
135 |
63 |
40 |
|
DT-300 |
18 |
31 |
23 |
150 |
67 |
50 |
|
DT-400 |
21 |
34 |
26.5 |
158 |
68 |
50 |
|
DT-500 |
21 |
38 |
29 |
166 |
74 |
54.2 |
|
DT-630 |
21 |
45 |
34.2 |
203 |
78.6 |
59.8 |
