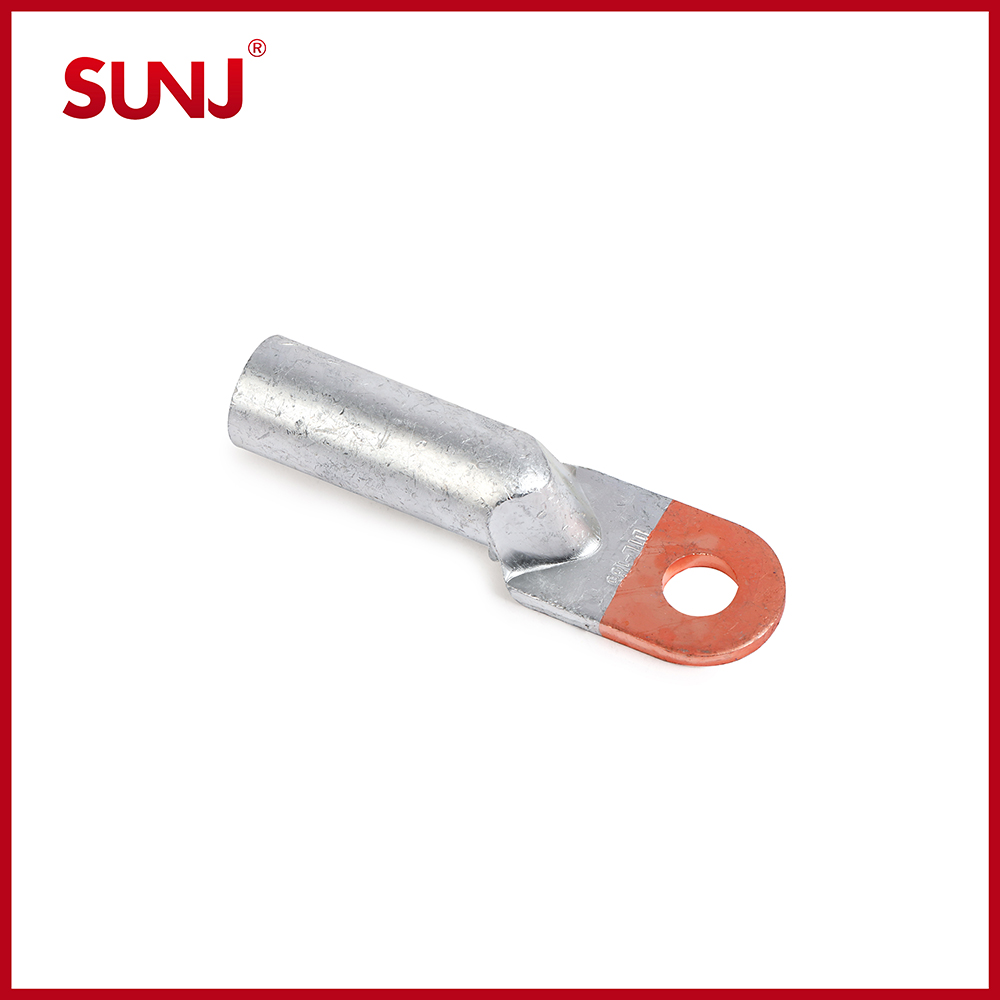

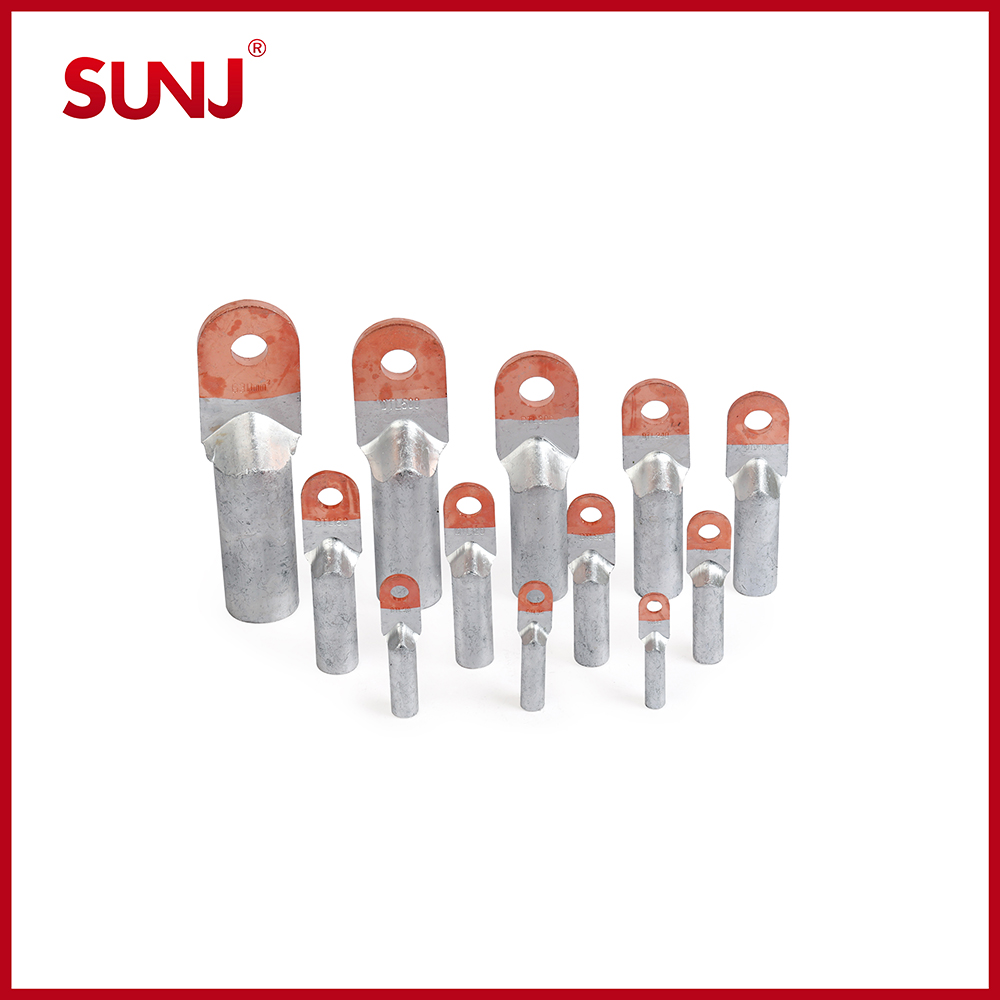

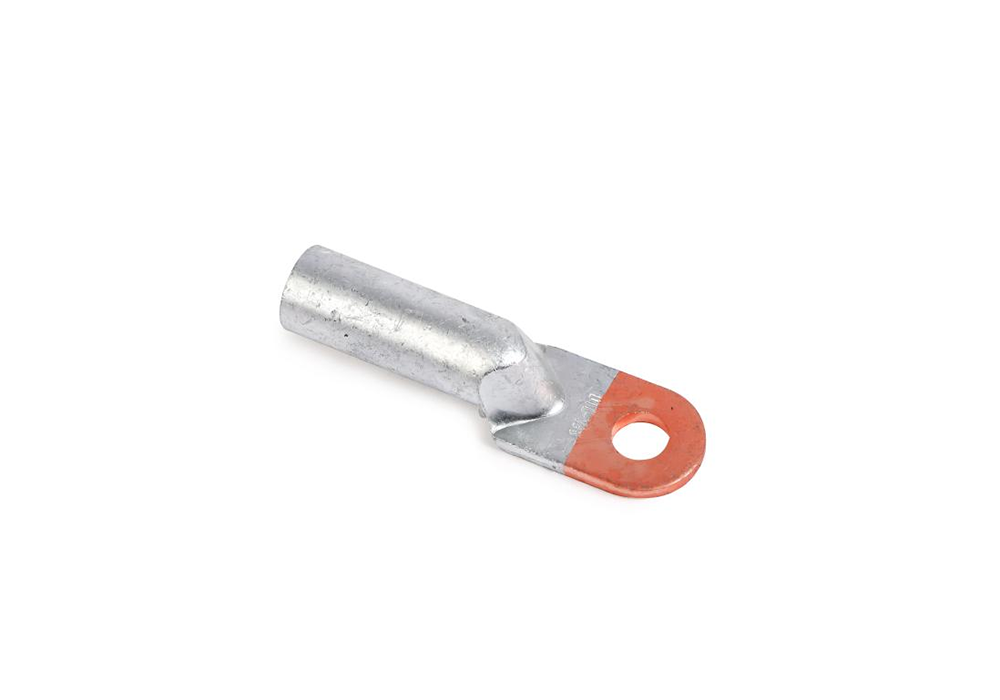

DTL-1
DTL-1
Used for transition connection of aluminum cable or aluminum alloy cable with copper end of electrical equipment in low voltage.
Material:Al≥99.5%,CU≥99.9%
1.Oil blocking structure
2.Friction welded
3.Prefilled with jointing compound.

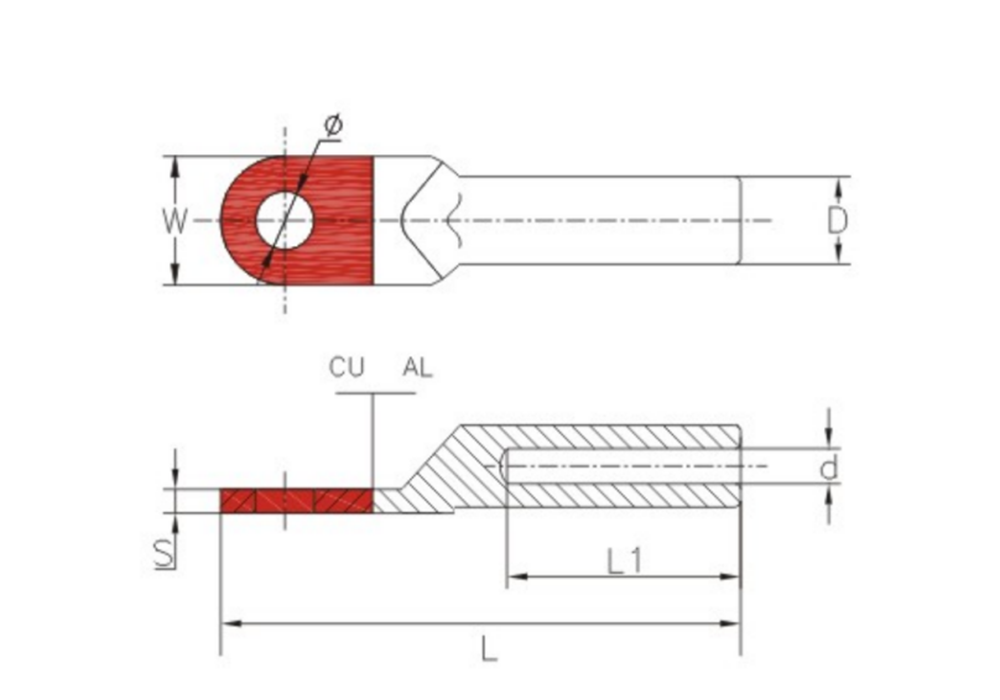

Datas
|
Type |
φ±0.3 |
D±0.2 |
d±0.2 |
L±2 |
L1±2 |
W±0.2 |
S±0.2 |
|
DTL-1-10 |
10.5 |
9.2 |
5.2 |
66.2 |
30 |
16 |
2.2 |
|
DTL-1-16 |
10.5 |
10.6 |
6.2 |
66.2 |
30.4 |
16 |
2.2 |
|
DTL-1-25 |
10.5 |
12.4 |
8 |
74 |
35 |
17.5 |
2.6 |
|
DTL-1-35 |
10.5 |
13.6 |
8 |
80 |
37 |
20 |
3 |
|
DTL-1-50 |
13 |
16 |
10 |
90.2 |
44 |
23 |
3.4 |
|
DTL-1-70 |
13 |
18 |
12 |
98.4 |
45 |
27 |
3.8 |
|
DTL-1-95 |
13 |
21 |
13.8 |
106.4 |
49.4 |
28 |
4 |
|
DTL-1-120 |
13 |
22.4 |
14.8 |
114 |
53.8 |
30 |
4.8 |
|
DTL-1-150 |
13 |
25 |
17 |
126 |
56 |
34 |
5 |
|
DTL-1-185 |
13 |
27 |
19 |
133.2 |
59.6 |
37 |
5.6 |
|
DTL-1-240 |
13 |
29.2 |
20.8 |
140 |
63 |
40 |
6 |
|
DTL-1-300 |
13 |
33.2 |
23.2 |
162 |
69 |
50 |
7 |
|
DTL-1-400 |
17 |
38.4 |
26.8 |
166 |
76 |
50 |
7.1 |
|
DTL-1-500 |
17 |
40.4 |
28.8 |
185 |
75 |
54.8 |
7.9 |
|
DTL-1-630 |
17 |
54.6 |
33 |
201 |
81 |
59.6 |
9 |
