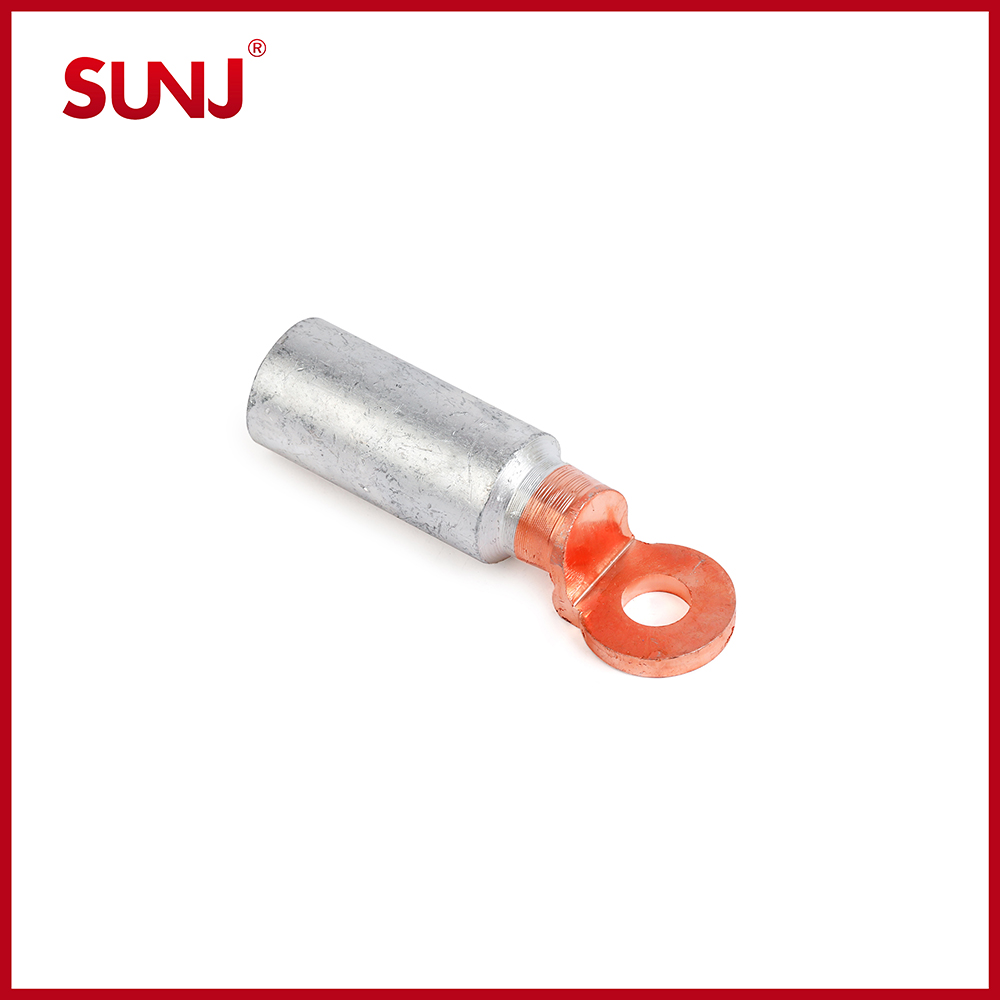

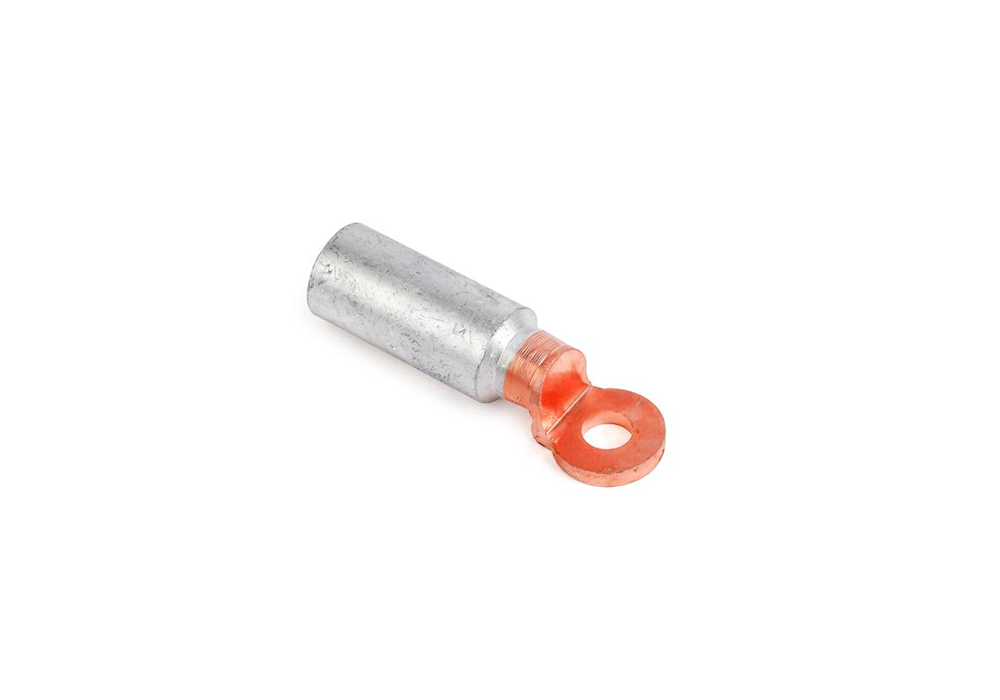

DTL-2
DTL-2
Used for transition connection of aluminum cable or aluminum alloy cable with copper end of electrical equipment in low voltage.
Material:Al≥99.5%,CU≥99.9%
1.Oil blocking structure
2.Friction welded
3.Prefilled with jointing compound.

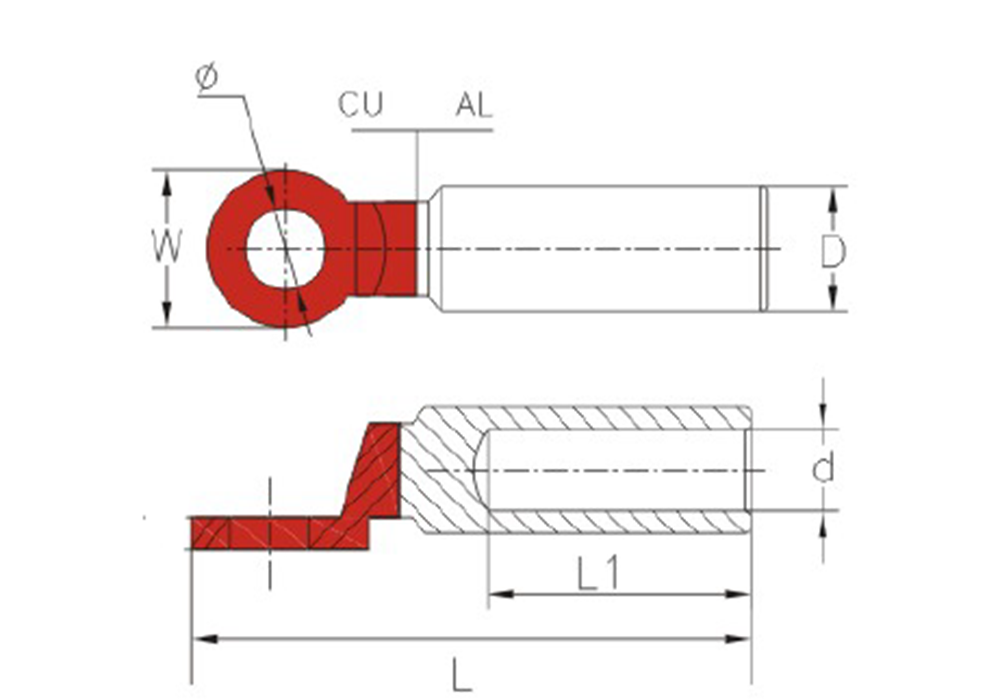

Datas
|
Type |
φ±0.3 |
D±0.2 |
d±0.2 |
L±2 |
L1±2 |
W±0.2 |
|
DTL-2-10 |
13 |
16 |
5.2 |
80 |
44 |
20 |
|
DTL-2-16 |
13 |
16 |
6.5 |
80 |
44 |
20 |
|
DTL-2-25 |
13 |
16 |
7.5 |
80 |
44 |
20 |
|
DTL-2-35 |
13 |
16 |
9 |
80 |
44 |
20 |
|
DTL-2-50 |
13 |
20 |
10 |
90 |
44 |
24 |
|
DTL-2-70 |
13 |
20 |
11 |
90 |
44 |
24 |
|
DTL-2-95 |
13 |
20 |
12.5 |
90 |
44 |
24 |
|
DTL-2-120 |
13 |
25 |
15 |
118.5 |
60 |
30 |
|
DTL-2-150 |
13 |
25 |
15.5 |
118.5 |
60 |
30 |
|
DTL-2-185 |
13 |
32 |
18.5 |
120 |
60 |
35 |
|
DTL-2-240 |
13 |
32 |
20.5 |
125 |
60 |
35 |
|
DTL-2-300 |
13 |
34 |
22.5 |
132 |
72 |
36 |
|
DTL-2-400 |
17 |
40 |
27 |
141 |
72 |
36 |
|
DTL-2-500 |
17 |
40 |
29.5 |
141 |
72 |
36 |
|
DTL-2-630 |
17 |
47 |
34 |
185 |
100 |
45 |
