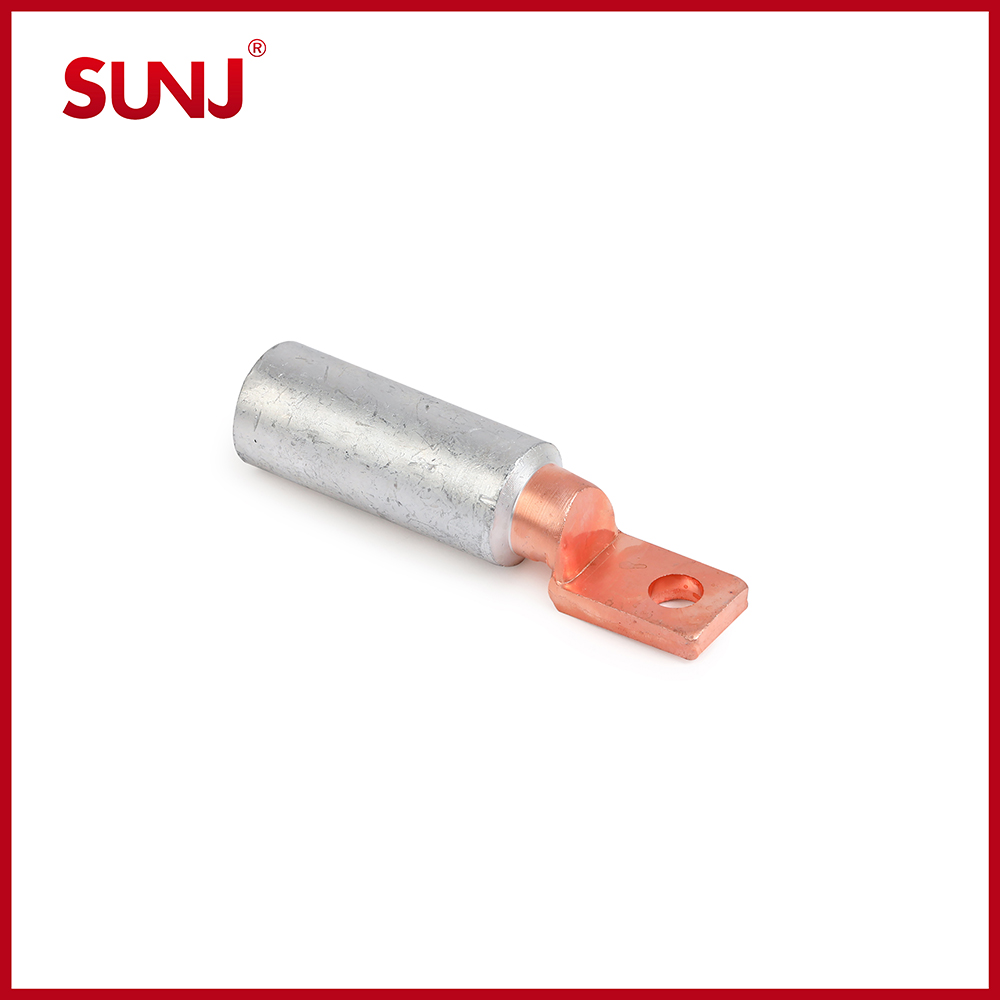

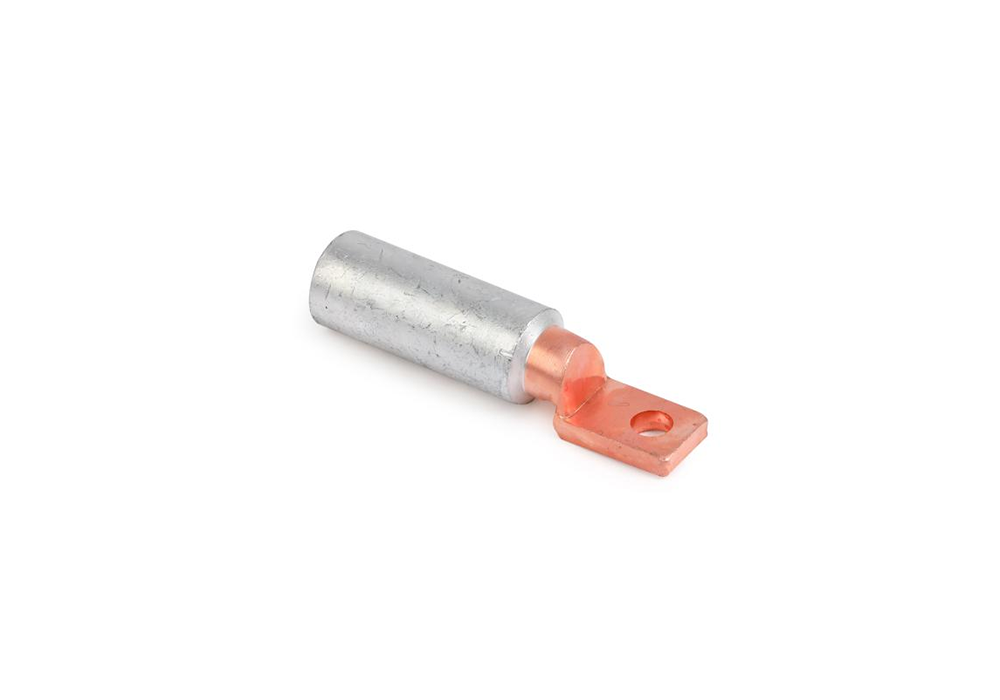

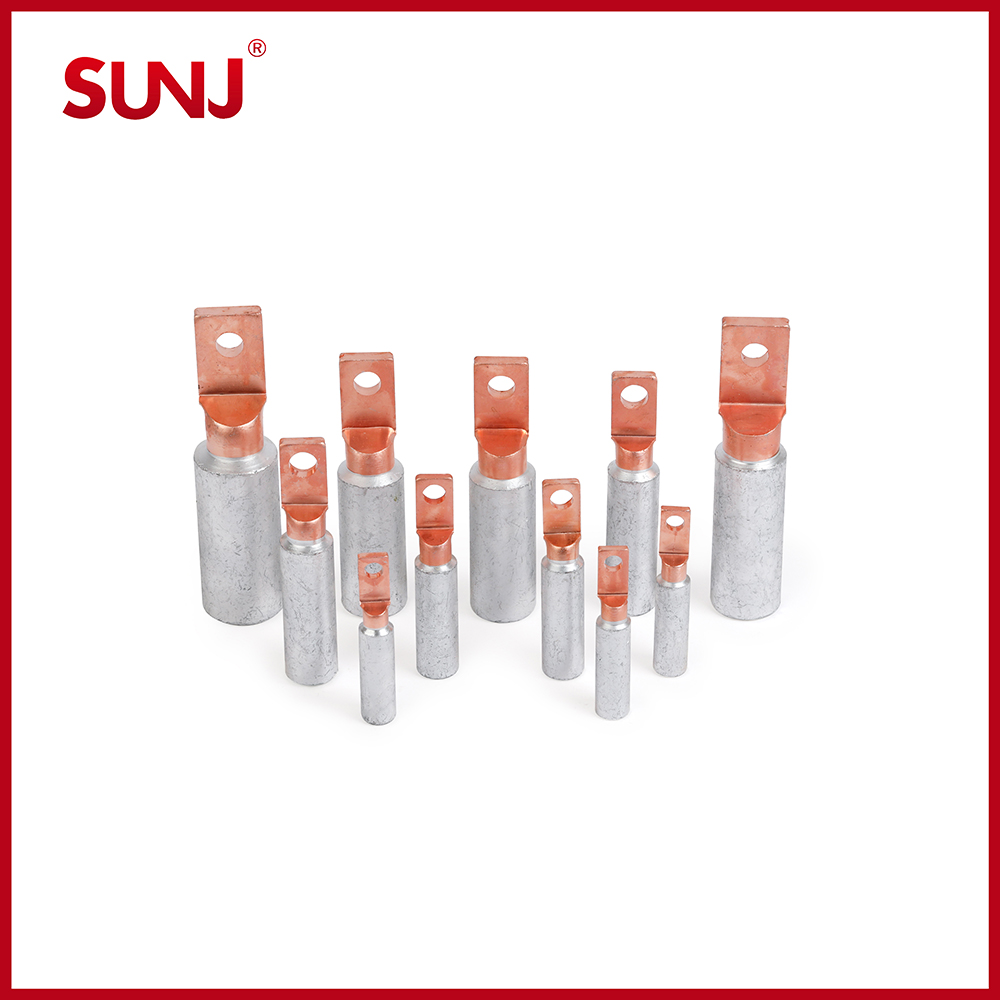

DTL-2S
DTL-2S
Used for transition connection of aluminum cable or aluminum alloy cable with copper end of electrical equipment in low voltage.
Material:Al≥99.5%,CU≥99.9%
1.The solid palm eliminates the ingress of moisture
2.Friction welded
3.Prefilled with jointing compound.

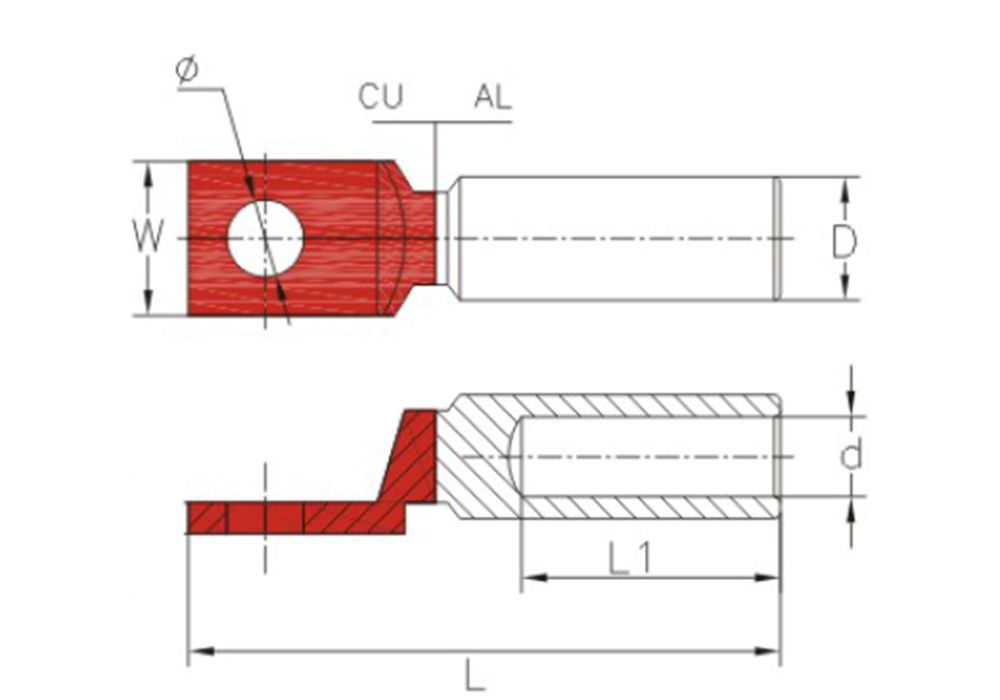

Datas
|
Type |
φ±0.3 |
D±0.2 |
d±0.2 |
L±2 |
L1±2 |
W±0.2 |
|
DTL-2S-10 |
8.5 |
16 |
4.8 |
85.5 |
43 |
14 |
|
DTL-2S-16 |
8.5 |
16 |
5.5 |
85.5 |
43 |
14 |
|
DTL-2S-25 |
8.5 |
16 |
7 |
85.5 |
43 |
14 |
|
DTL-2S-35 |
8.5 |
16 |
8.8 |
85.5 |
43 |
14 |
|
DTL-2S-50 |
10.5 |
20 |
9.5 |
102 |
50 |
17.5 |
|
DTL-2S-70 |
10.5 |
20 |
11 |
102 |
50 |
17.5 |
|
DTL-2S-95 |
10.5 |
20 |
12.8 |
102 |
50 |
17.5 |
|
DTL-2S-120 |
13 |
25 |
14.8 |
123 |
60 |
21.5 |
|
DTL-2S-150 |
13 |
25 |
15.8 |
123 |
60 |
21.5 |
|
DTL-2S-185 |
13 |
32 |
18.2 |
131 |
62 |
26 |
|
DTL-2S-240 |
13 |
32 |
20.1 |
131 |
62 |
26 |
|
DTL-2S-300 |
13 |
34 |
22.8 |
150 |
67 |
32 |
