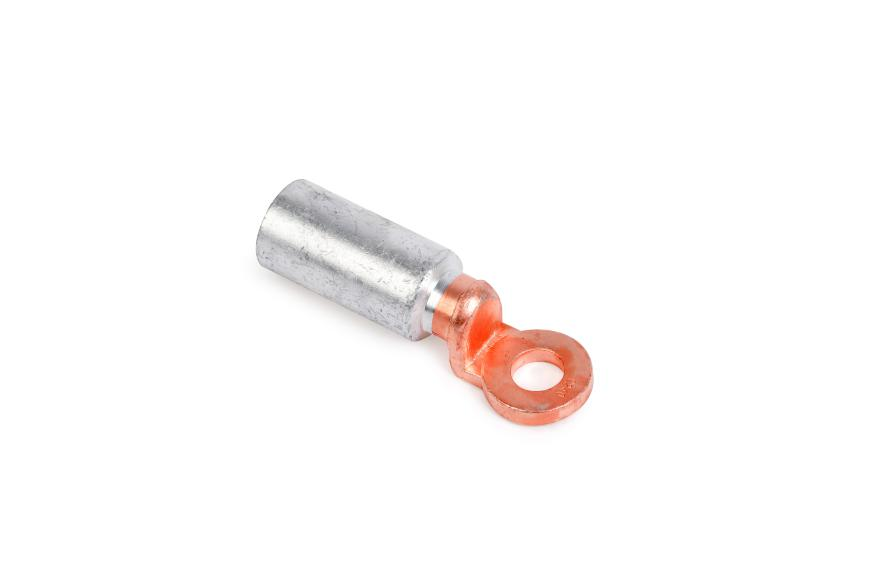

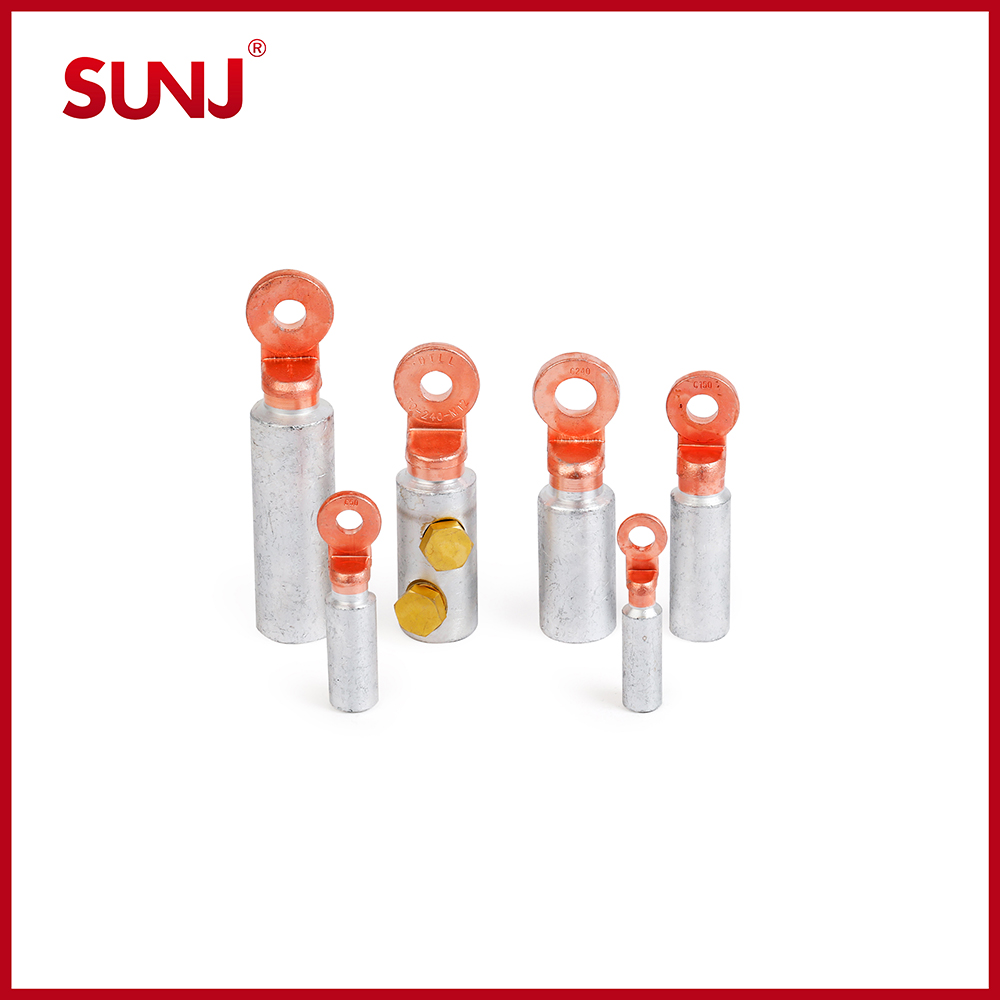

DTL-5
DTL-5

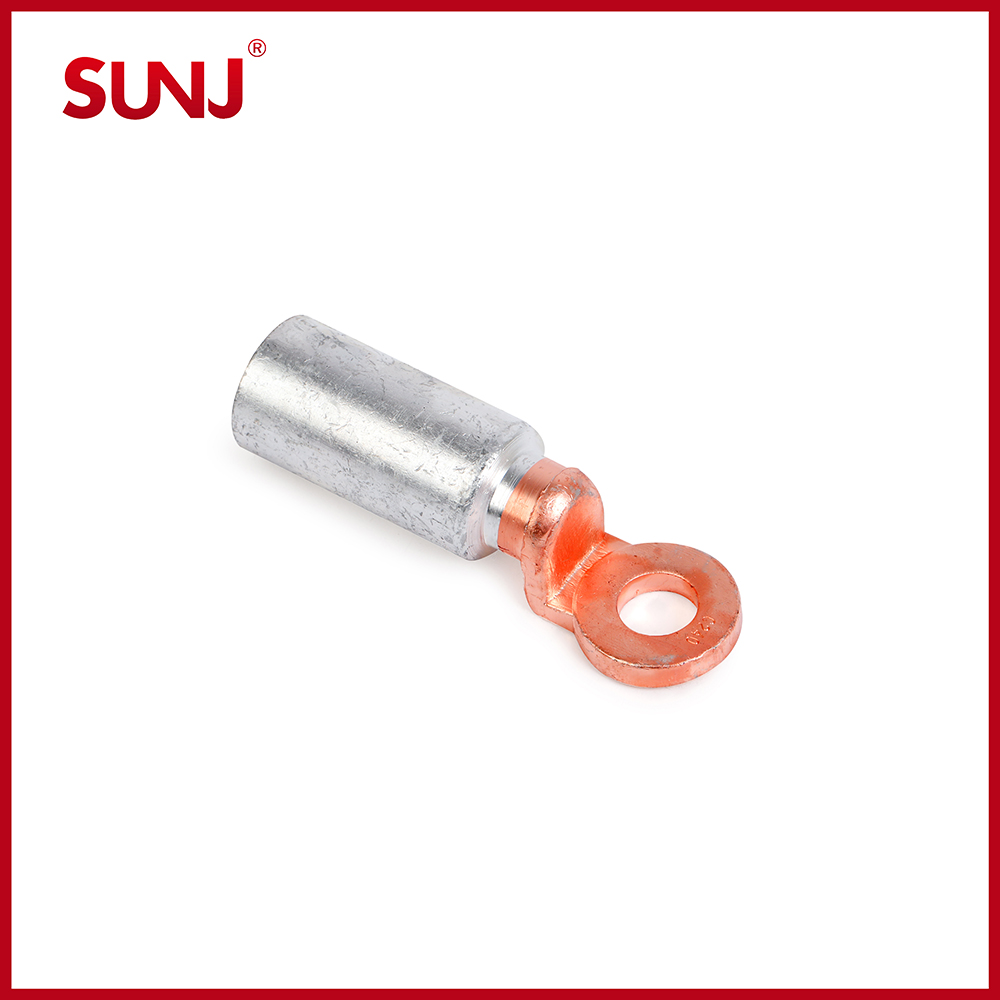

Used for transition connection of aluminum cable or aluminum alloy cable with copper end of electrical equipment in medium voltage.Suitable for connecting ABC cables to transformers,switchgear etc.
Material:Al≥99.5%,CU≥99.9%
1.Oil blocking structure
2.Friction welded
3.Prefilled with jointing compound.

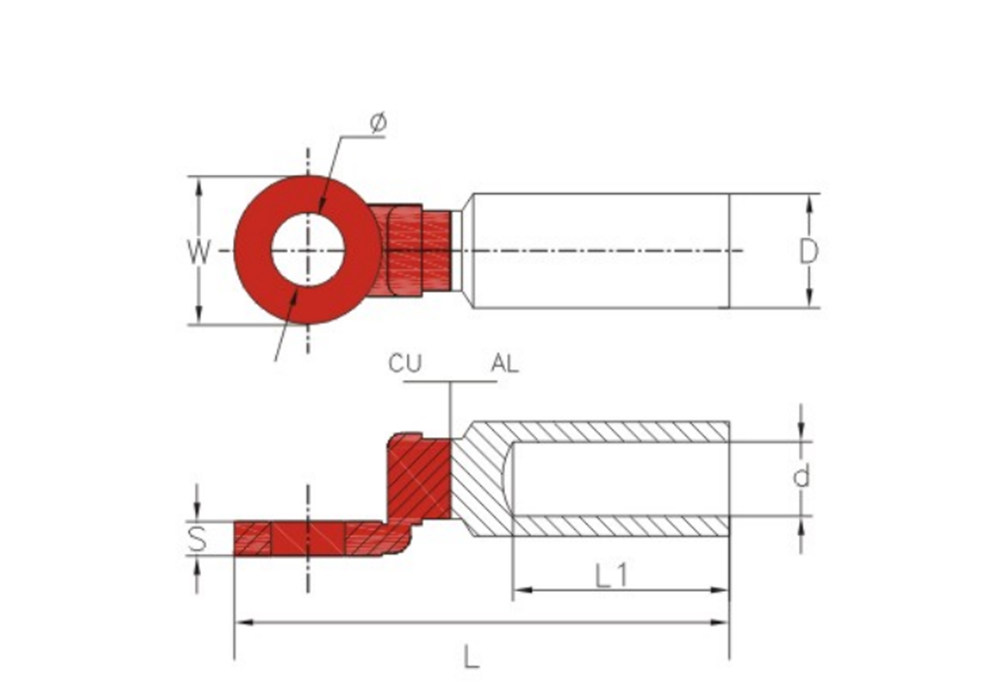

Datas
|
Type |
φ±0.3 |
D±0.2 |
d±0.2 |
L±2 |
L1±2 |
W±0.2 |
|
DTL-5-16 |
10.5 |
16 |
5.5 |
80 |
44 |
20 |
|
DTL-5-25 |
10.5 |
16 |
7 |
80 |
44 |
20 |
|
DTL-5-35 |
10.5 |
16 |
8 |
80 |
44 |
20 |
|
DTL-5-50 |
13 |
20 |
9 |
92.5 |
43 |
25 |
|
DTL-5-70 |
13 |
20 |
11 |
92.5 |
43 |
25 |
|
DTL-5-95 |
13 |
20 |
12.5 |
92.5 |
43 |
25 |
|
DTL-5-120 |
13 |
25 |
14 |
111 |
59 |
30 |
|
DTL-5-150 |
13 |
25 |
15.5 |
111 |
59 |
30 |
|
DTL-5-185 |
17 |
32 |
18.5 |
121 |
60 |
35 |
|
DTL-5-240 |
17 |
32 |
19.5 |
121 |
60 |
35 |
|
DTL-5-300 |
13 |
34 |
23.5 |
155 |
92 |
35 |
|
DTL-5-400 |
17 |
40 |
26 |
155 |
93 |
35 |
|
DTL-5-500 |
17 |
40 |
29.5 |
160 |
93 |
37 |
