GL
GL
GL series suitable for connecting the circular wire and hemicycle wire in distribution equipment or power supply cables.
Datas

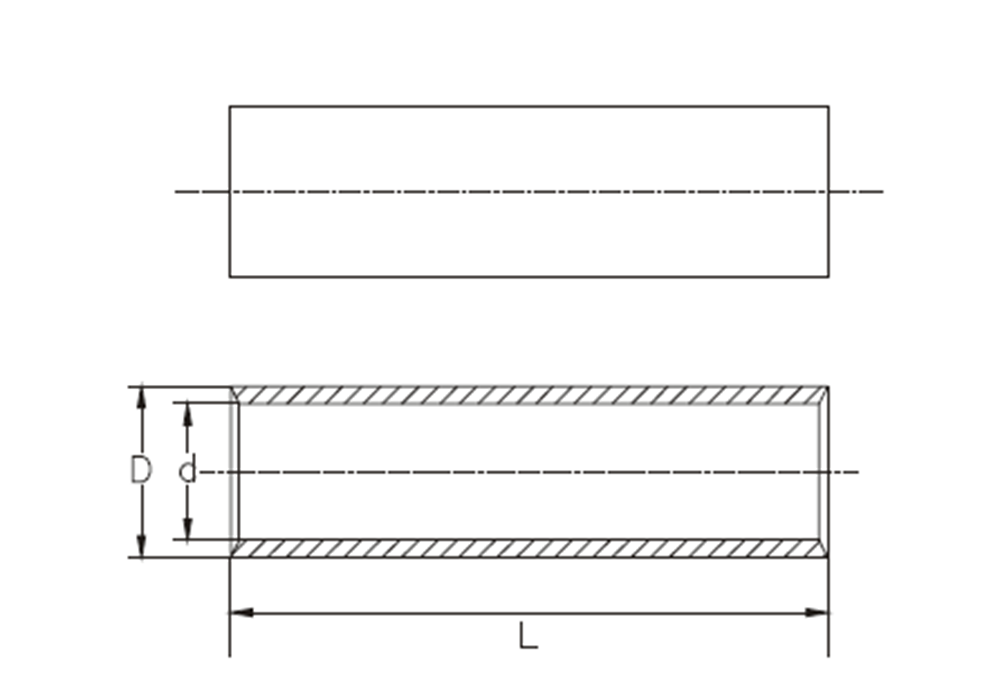

GL-1
The barrels capped are filled with joint compound to avoid oxidization.
|
Type |
D±0.5 |
d±0.3 |
L±2 |
|
GL-1-10 |
8 |
5 |
53 |
|
GL-1-16 |
10 |
5.5 |
67 |
|
GL-1-25 |
12 |
7.5 |
67 |
|
GL-1-35 |
14 |
8.5 |
74 |
|
GL-1-50 |
16 |
10 |
80 |
|
GL-1-70 |
18 |
11.5 |
90 |
|
GL-1-95 |
21 |
13 |
95 |
|
GL-1-120 |
23 |
15 |
99 |
|
GL-1-150 |
25 |
16.5 |
105 |
|
GL-1-185 |
27 |
18 |
110 |
|
GL-1-240 |
30 |
21 |
119 |
|
GL-1-300 |
34 |
22.5 |
131 |
|
GL-1-400 |
38 |
25.5 |
141 |

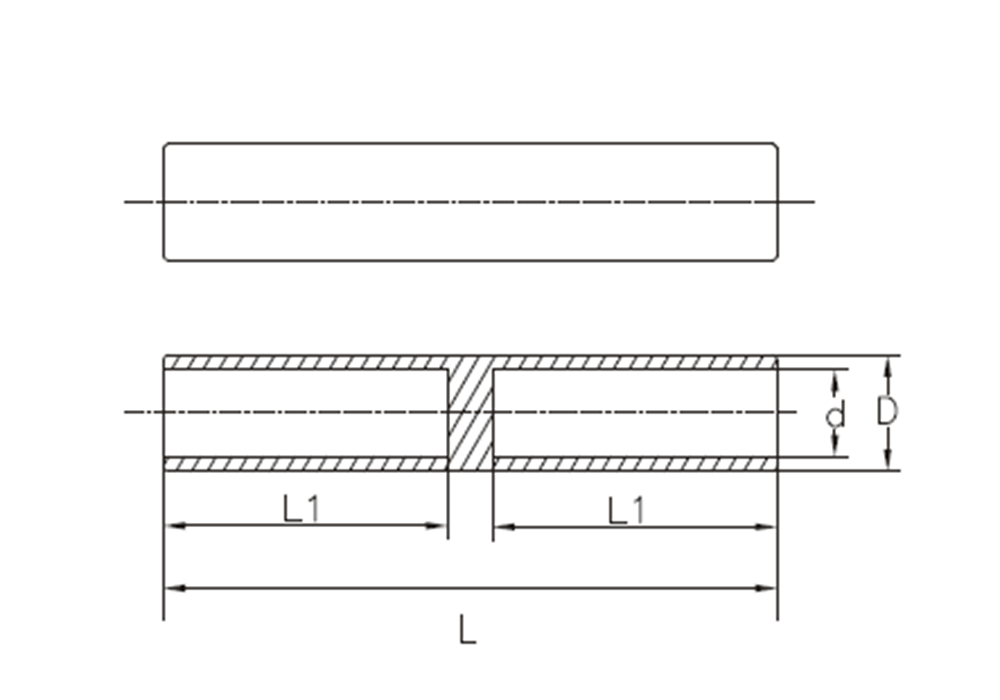

GL-2
Oil and water stop
|
Type |
D±0.2 |
d±0.2 |
L±2 |
L1±2 |
|
GL-2-16 |
11 |
6.1 |
70 |
30 |
|
GL-2-25 |
12 |
7.1 |
75 |
32 |
|
GL-2-35 |
14 |
8.5 |
85 |
37 |
|
GL-2-50 |
16 |
9.8 |
95 |
43 |
|
GL-2-70 |
18 |
11.5 |
105 |
47 |
|
GL-2-95 |
21 |
13.5 |
110 |
50 |
|
GL-2-120 |
23 |
15 |
115 |
53 |
|
GL-2-150 |
25 |
16.5 |
120 |
55 |
|
GL-2-185 |
27 |
18.5 |
125 |
57 |
|
GL-2-240 |
30 |
21 |
130 |
60 |
|
GL-2-300 |
34 |
23.5 |
140 |
65 |
|
GL-2-400 |
38 |
26 |
160 |
70 |
