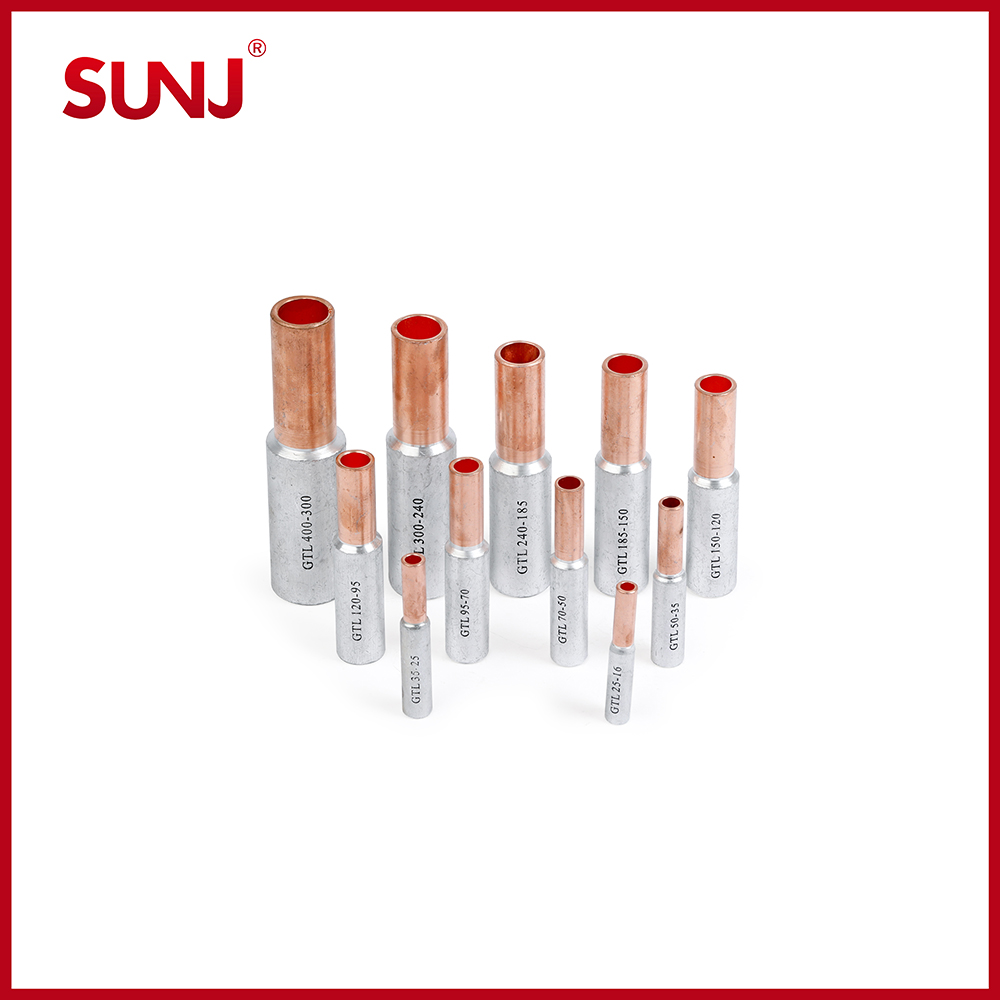

GTL
GTL

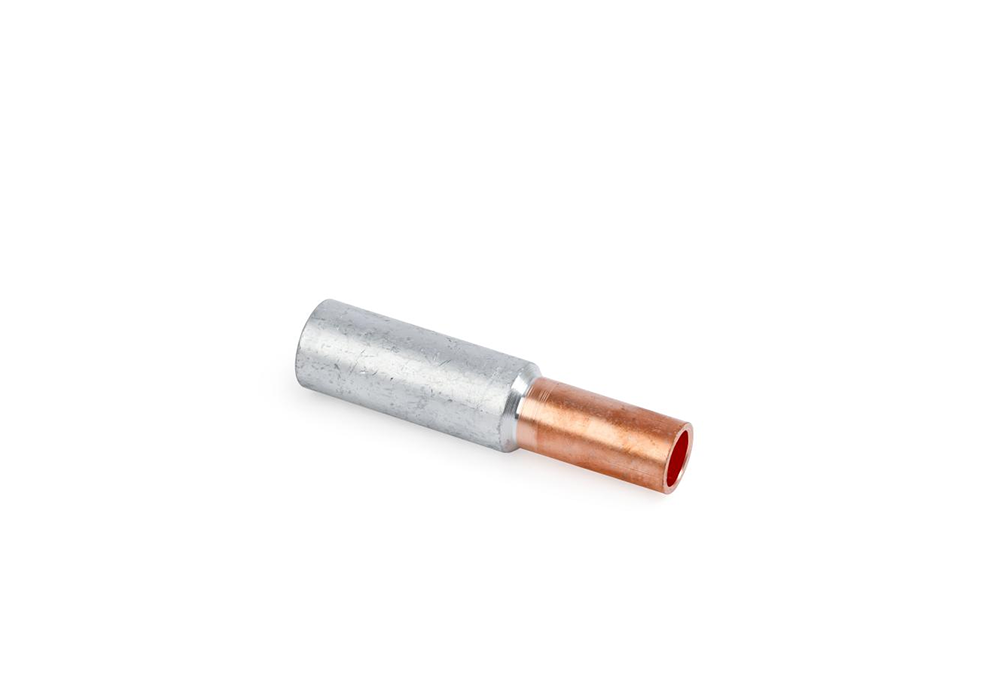

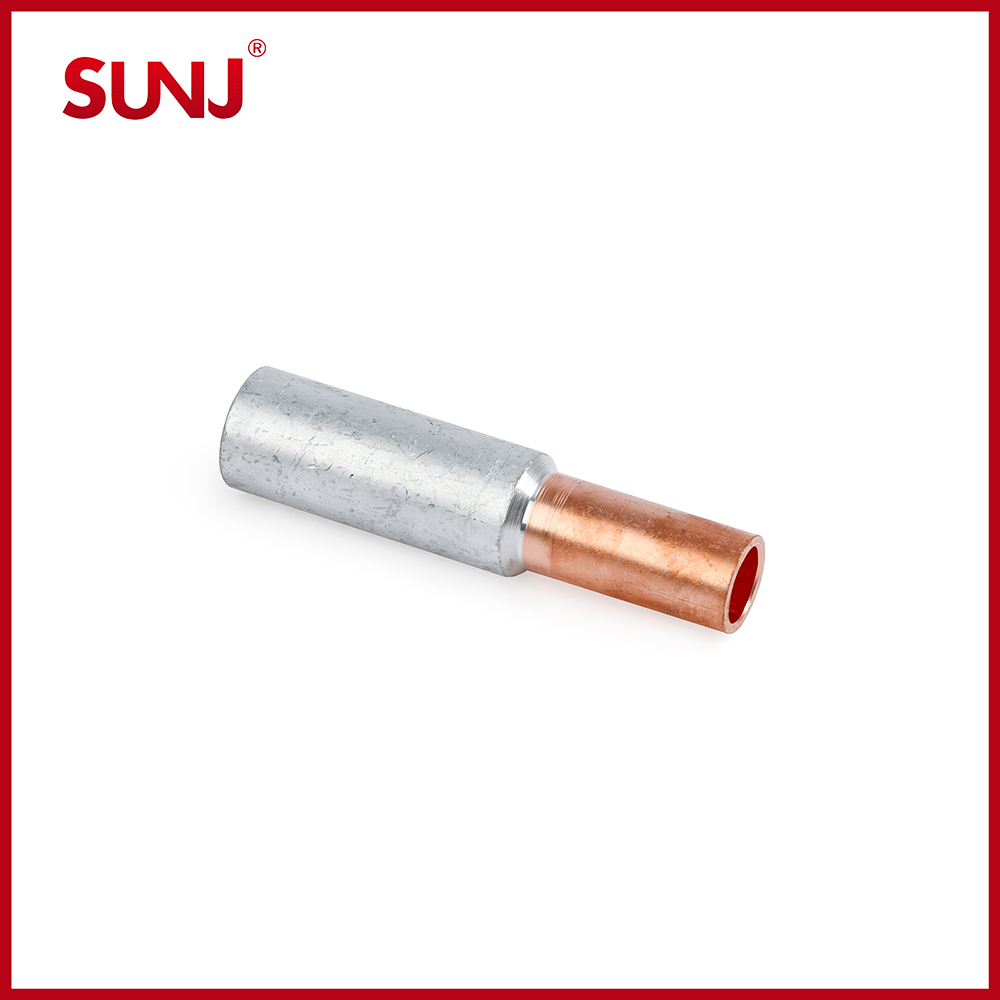

Used for intermediate transition connection of aluminum cable or aluminum alloy cable with copper cable in medium voltage.
Material:Al≥99.5%,CU≥99.9%
1.Oil blocking structure
2.Friction welded
3.Prefilled with jointing compound

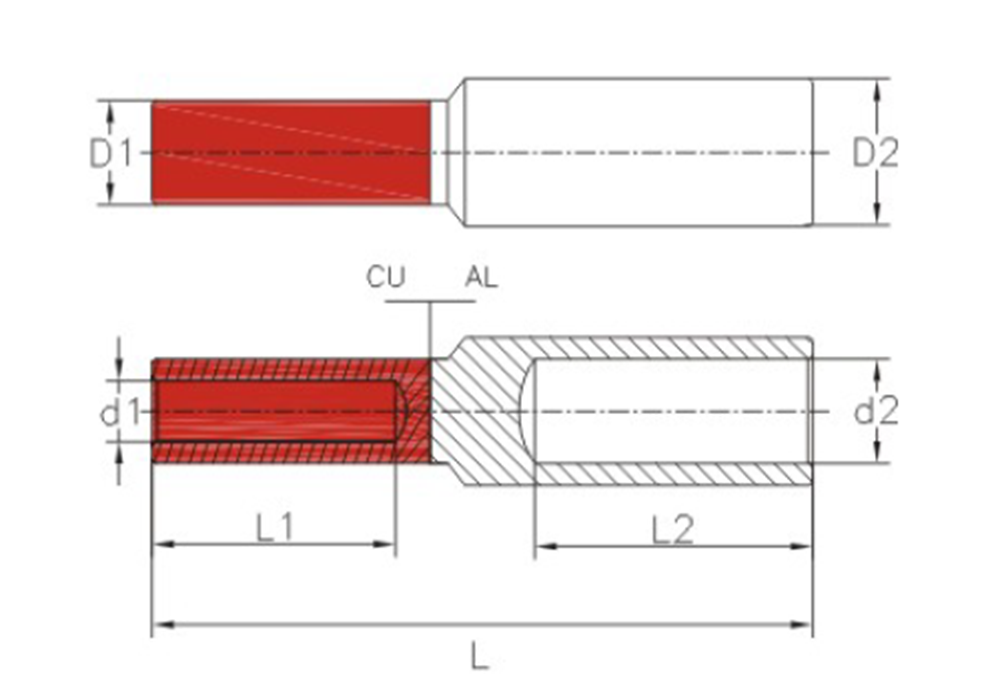

Datas
|
Type |
D1±0.2 |
d1±0.2 |
D2±0.2 |
d2±0.2 |
L1±2 |
L2±2 |
L±2 |
|
GTL-16 |
9 |
5.7 |
10 |
6.5 |
25 |
33 |
70 |
|
GTL-25 |
10 |
6.5 |
12 |
7.2 |
28 |
37 |
75 |
|
GTL-35 |
11 |
7.5 |
14 |
8.5 |
29 |
40 |
85 |
|
GTL-50 |
12 |
8.5 |
16 |
10.2 |
34 |
42 |
89 |
|
GTL-70 |
14 |
10 |
18 |
11.5 |
36 |
46 |
98 |
|
GTL-95 |
16 |
11.5 |
21 |
13.5 |
35 |
54 |
105 |
|
GTL-120 |
18 |
13.5 |
23 |
15 |
39 |
56 |
109 |
|
GTL-150 |
20 |
15 |
25 |
16.5 |
43 |
55 |
115 |
|
GTL-185 |
22 |
16.5 |
27 |
18.5 |
45 |
58 |
125 |
|
GTL-240 |
24 |
18.5 |
30 |
21 |
48 |
61 |
130 |
|
GTL-300 |
27 |
21 |
34 |
23.5 |
53 |
70 |
145 |
|
GTL-400 |
30 |
23.5 |
38 |
26.5 |
59 |
73 |
155 |
|
GTL-500 |
34 |
26.5 |
44 |
29 |
64 |
78 |
160 |
