GTY
GTY

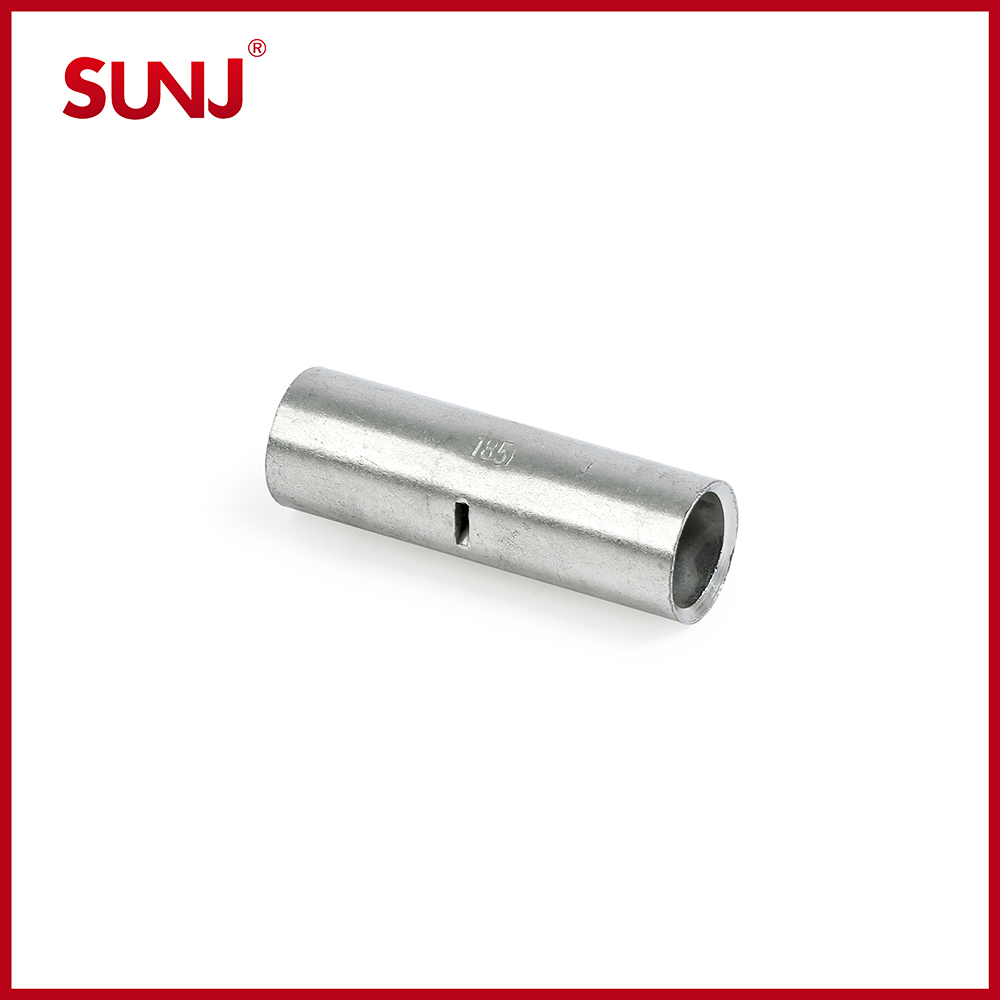

GTY cable link used for intermediate connection of copper cables in low voltage.
Material:CU≥99.9%
Sudface:tin plated
-

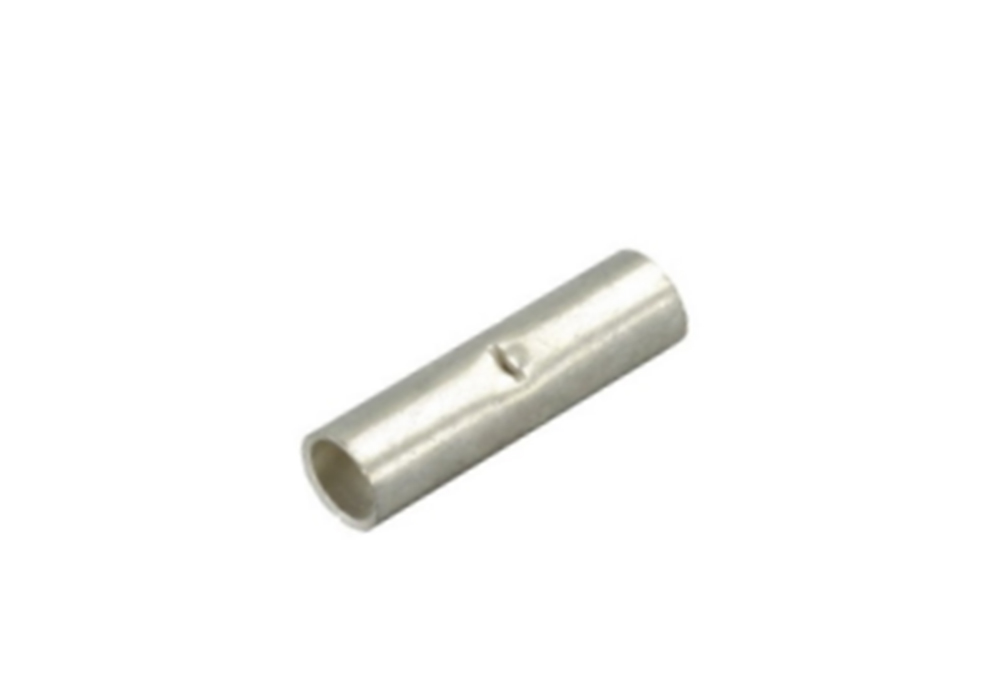

GTY-1 Type
-

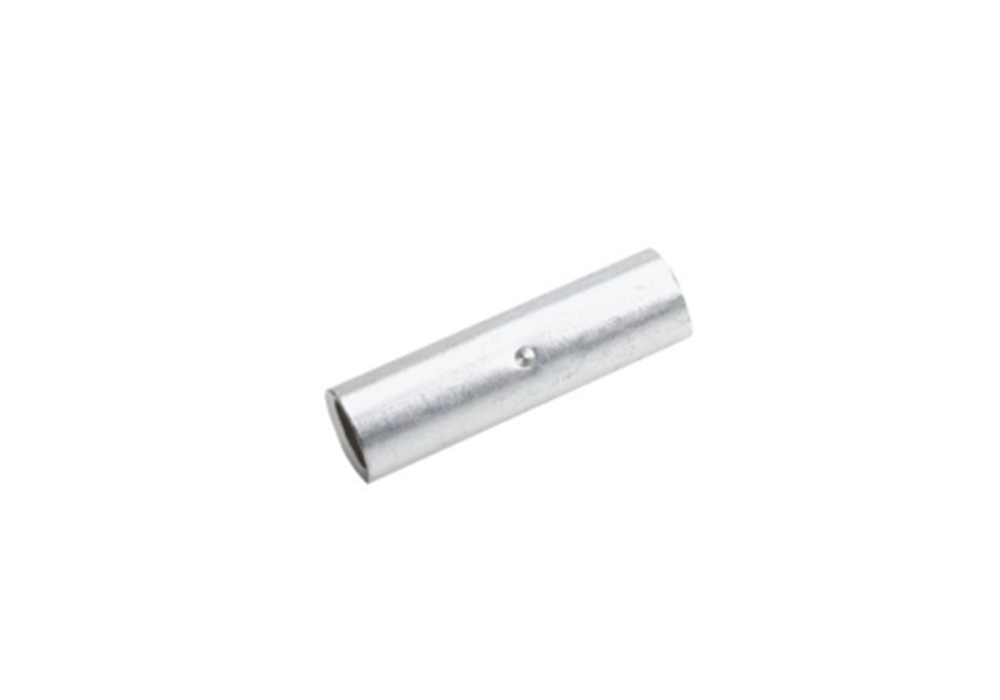

GTY-2 Type
-
|

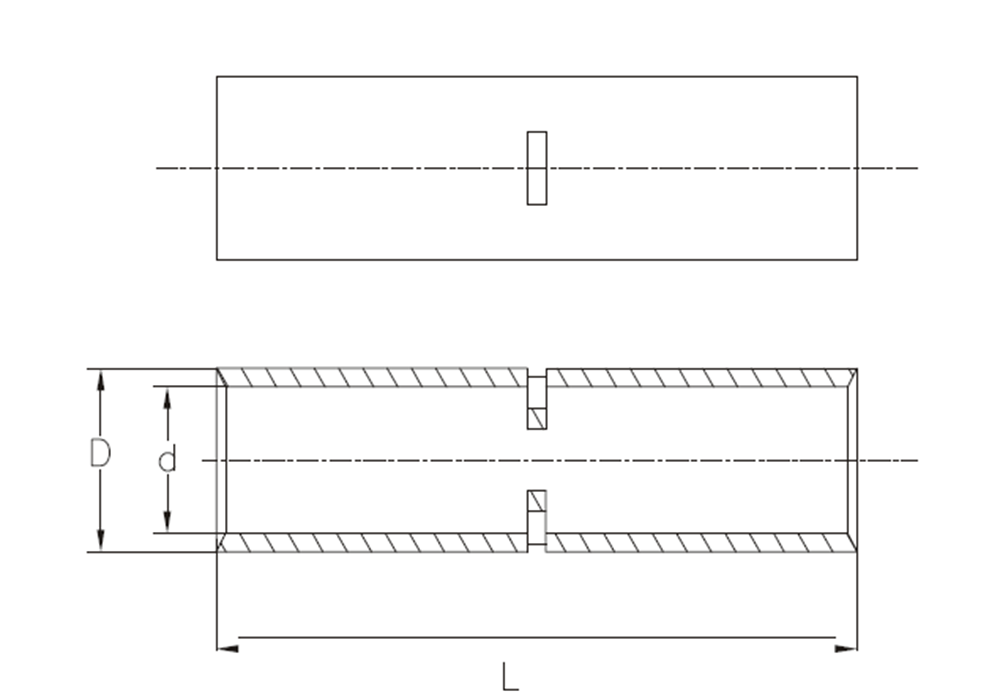

Type |
D±0.5 |
d±0.3 |
L±2 |
|
GTY-1(2)-1.5 |
3.7 |
1.8 |
20 |
|
GTY-1(2)-2.5 |
4 |
2.5 |
20 |
|
GTY-1(2)-4 |
4.8 |
3.1 |
20 |
|
GTY-1(2)-6 |
5.5 |
3.8 |
25 |
|
GTY-1(2)-10 |
6.5 |
5.4 |
25 |
|
GTY-1(2)-16 |
7.5 |
6.1 |
35 |
|
GTY-1(2)-25 |
9 |
7.5 |
40 |
|
GTY-1(2)-35 |
10.5 |
8.9 |
44 |
|
GTY-1(2)-50 |
12.5 |
10.5 |
45 |
|
GTY-1(2)-70 |
14.5 |
11.9 |
50 |
|
GTY-1(2)-95 |
17 |
13.9 |
60 |
|
GTY-1(2)-120 |
19.5 |
16 |
65 |
|
GTY-1(2)-150 |
20.5 |
17 |
70 |
|
GTY-1(2)-185 |
24 |
19.5 |
75 |
|
GTY-1(2)-240 |
25 |
20.5 |
79 |
|
GTY-1(2)-300 |
30 |
25.4 |
85 |
|
GTY-1(2)-400 |
34 |
28.6 |
90 |
|
GTY-1(2)-500 |
38 |
32 |
100 |
|
GTY-1(2)-630 |
45 |
35 |
110 |
