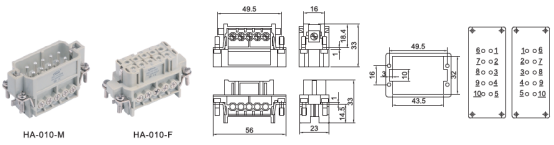

HA-010

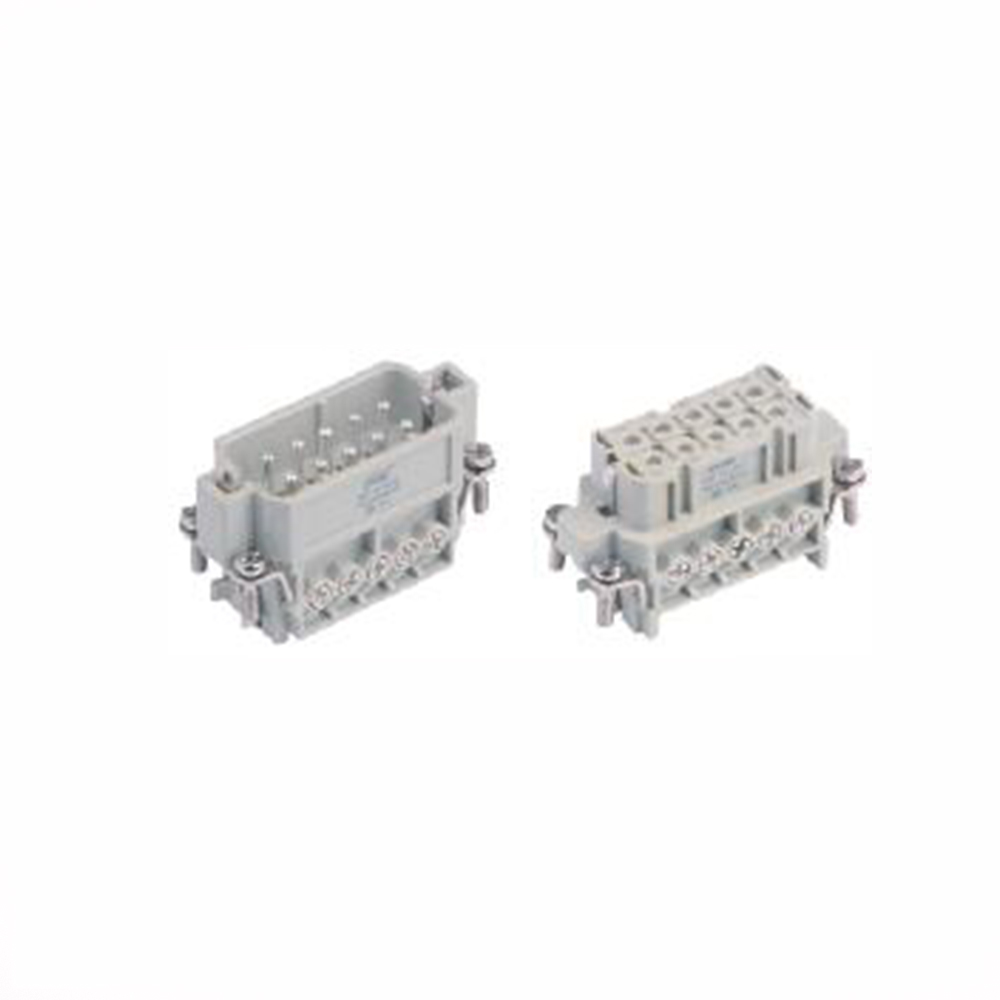

HA insert HDC heavy duty connector 10 poles
16A HDC HA series 10 contacts insert plug heavy duty connectors small size,available in crimp and screw termination,Screw termination also available with wire protection.
Different position to install and free combination to use.
|
Rated current |
16A |
|
Rated voltage |
400/500V |
|
Flammability acc.to UL94 |
V0 |
|
Degree of protection acc.to DIN40 050 |
IP65 |
|
Terminal |
Screw terminal / Spring terminal |
|
Thread |
PG16,PG21 |
