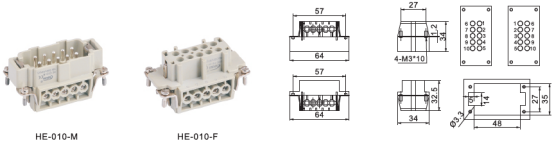

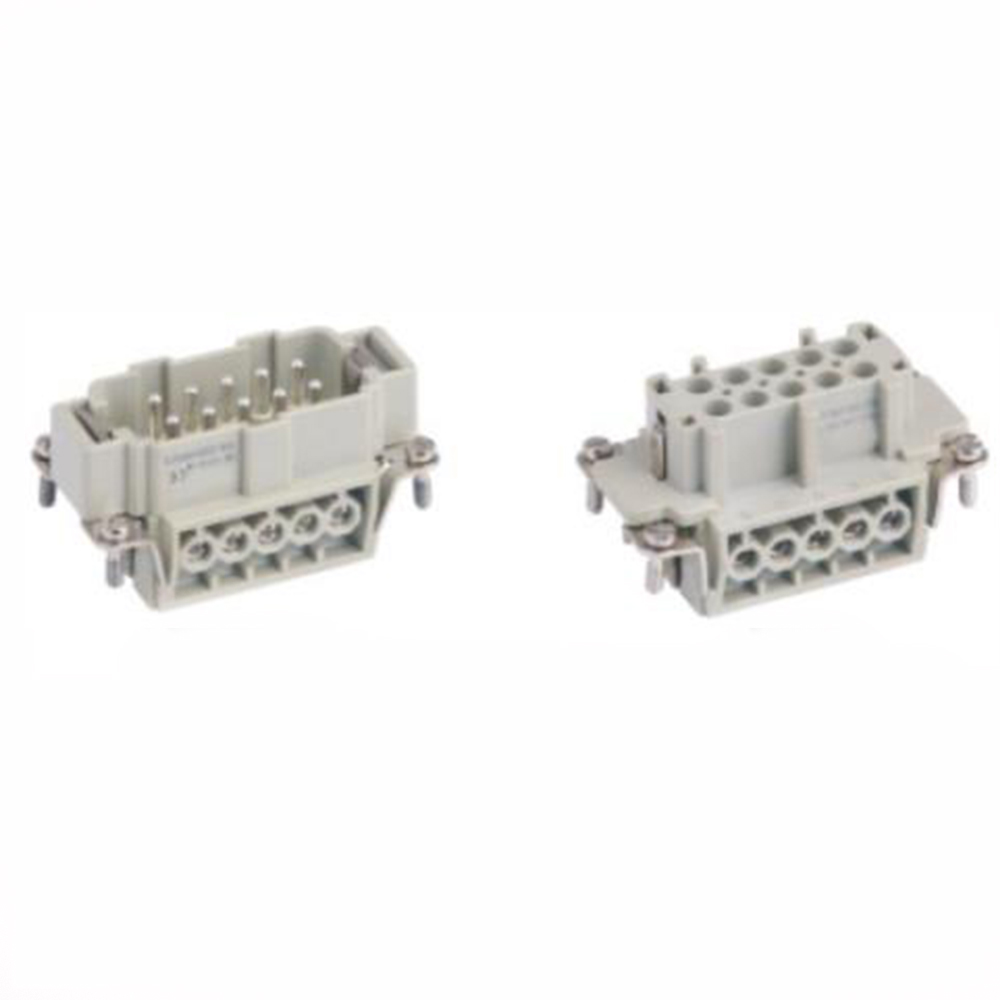

HE-010
HE series 10 Poles of connector
Heavy Duty Connector 16A 10pin rectangular insert Rectangular connector, as the name suggests, its basic structure is rectangular, and in many cases, its mating surface is also an approximate rectangular shape.
Different position to install and free combination to use.
|
Rated current |
16A |
|
Rated voltage |
400/500V |
|
Flammability acc.to UL94 |
V0 |
|
Degree of protection acc.to DIN40 050 |
IP65 |
|
Terminal |
Screw terminal / Spring terminal/Crimp terminal |
|
Thread |
M25/PG16/PG21 |
