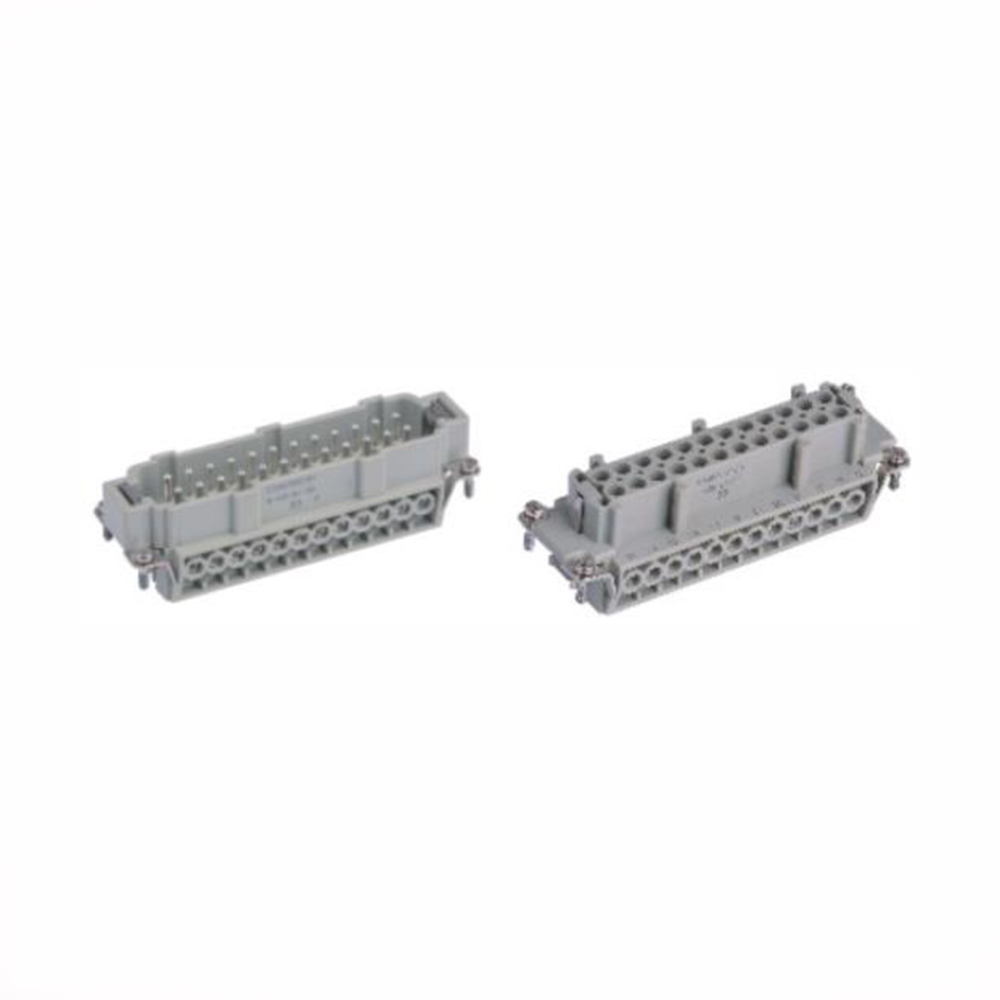

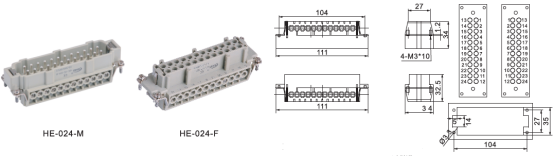

HE series 24 Poles of connector (With 2 levers)
HE 24 Poles Heavy Duty Rectangular Connectors Temperature Controller Connector
Applications:
*Machinery
*Automation
*Robotics
*Rail
*Energy Distribution
*Renewable Energy
*Construction Machinery
*Professional Light and sound
Different position to install and free combination to use.
|
Rated current |
16A |
|
Rated voltage |
400/500V |
|
Flammability acc.to UL94 |
V0 |
|
Degree of protection acc.to DIN40 050 |
IP65 |
|
Terminal |
Screw terminal / Spring terminal/Crimp terminal |
|
Thread |
PG21/PG29/M32 |
