JBG
JBG

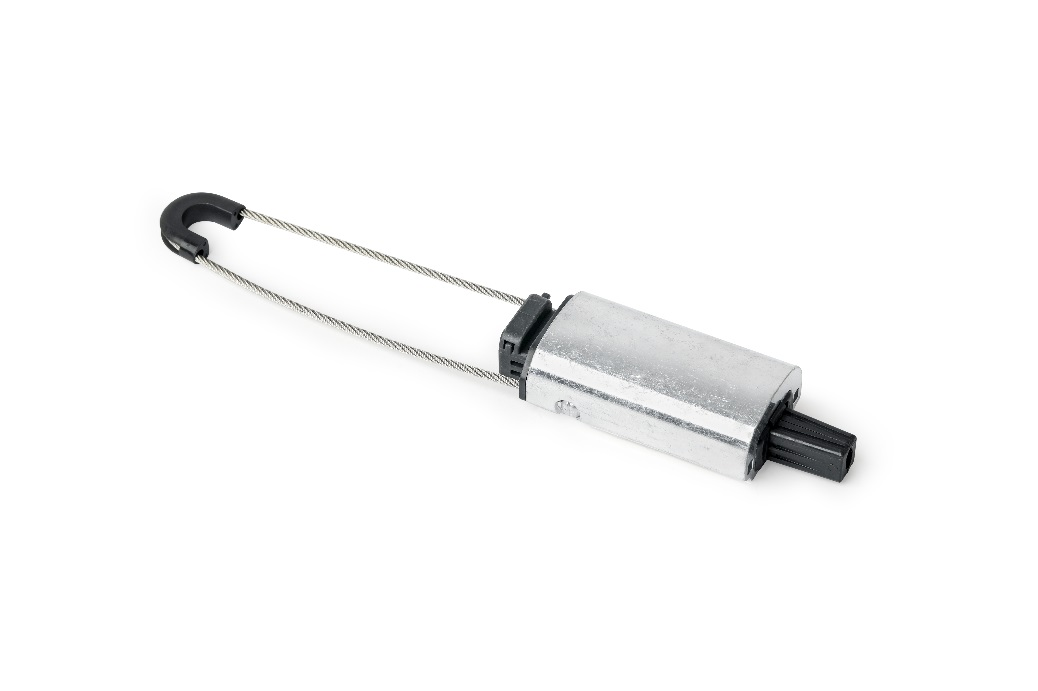

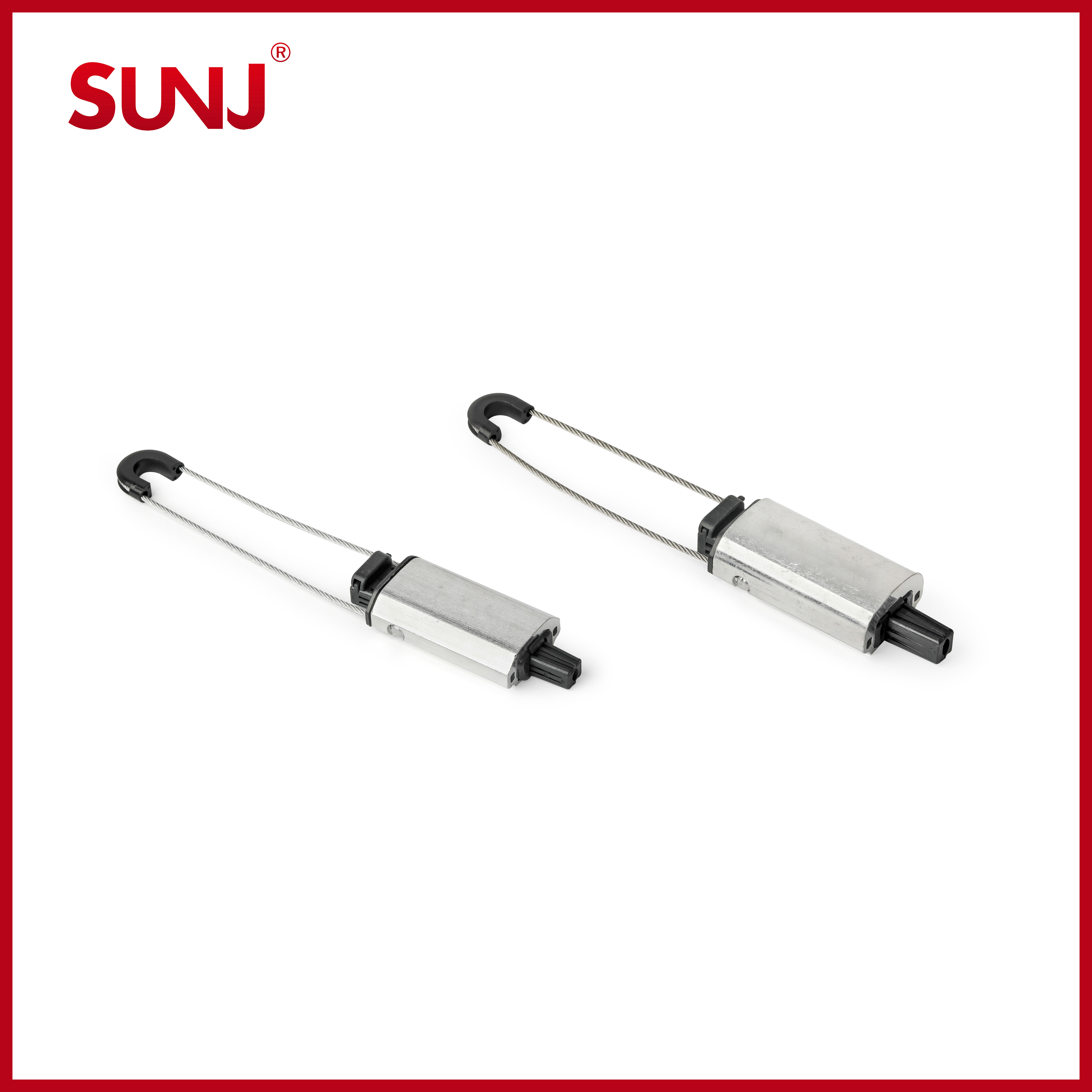

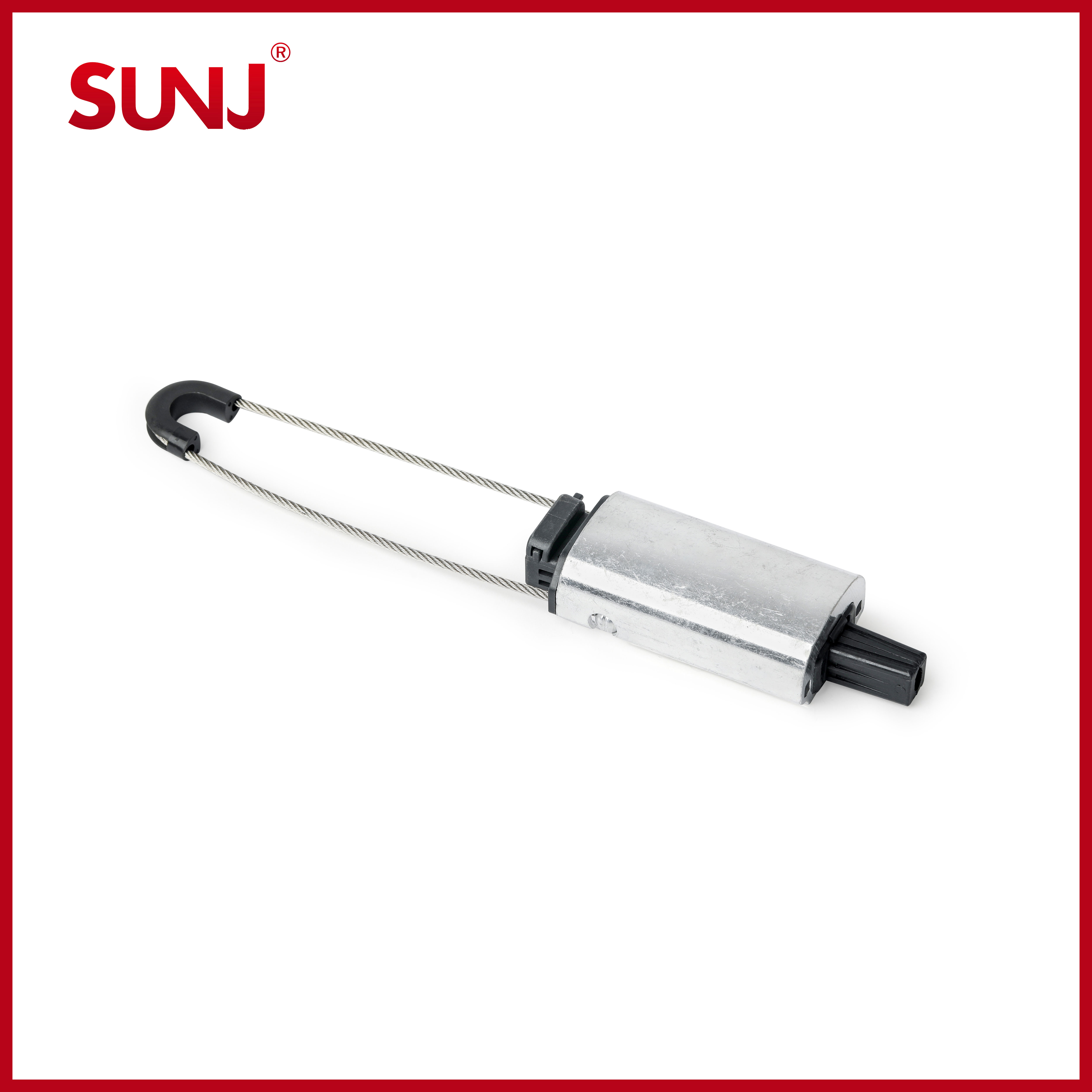

JBG tension clamp are used to anchor and tighten low voltage aerial cables with insulated neutral messenger.
1.Body is made of corrosion resistant extruded aluminum alloy.
2.Metal support is made of stainless steel or steel.
3.Wedges are made of weather resistant and anti-UV material with high mechanical strength.
4.Standard:EN 50483-3,NF C33-041
Datas
|
Type |
Conductor Cross-section(mm²） |
Breaking load
|
|
JBG25-35/1000
|
25-35mm²
|
10kN
|
|
JBG54.6-70/1500
|
54.6-70mm²
|
15kN
|
|
JBG70-95/2000
|
70-95mm²
|
20kN
|

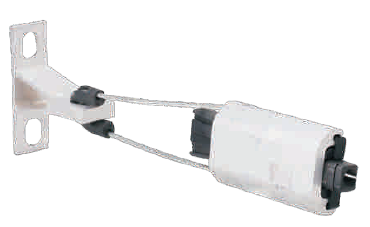

Notice:We provide a variety of bracket for Anchoring Assemblies.Specifications of bracket see anchor bracket.
