JBL
JBL

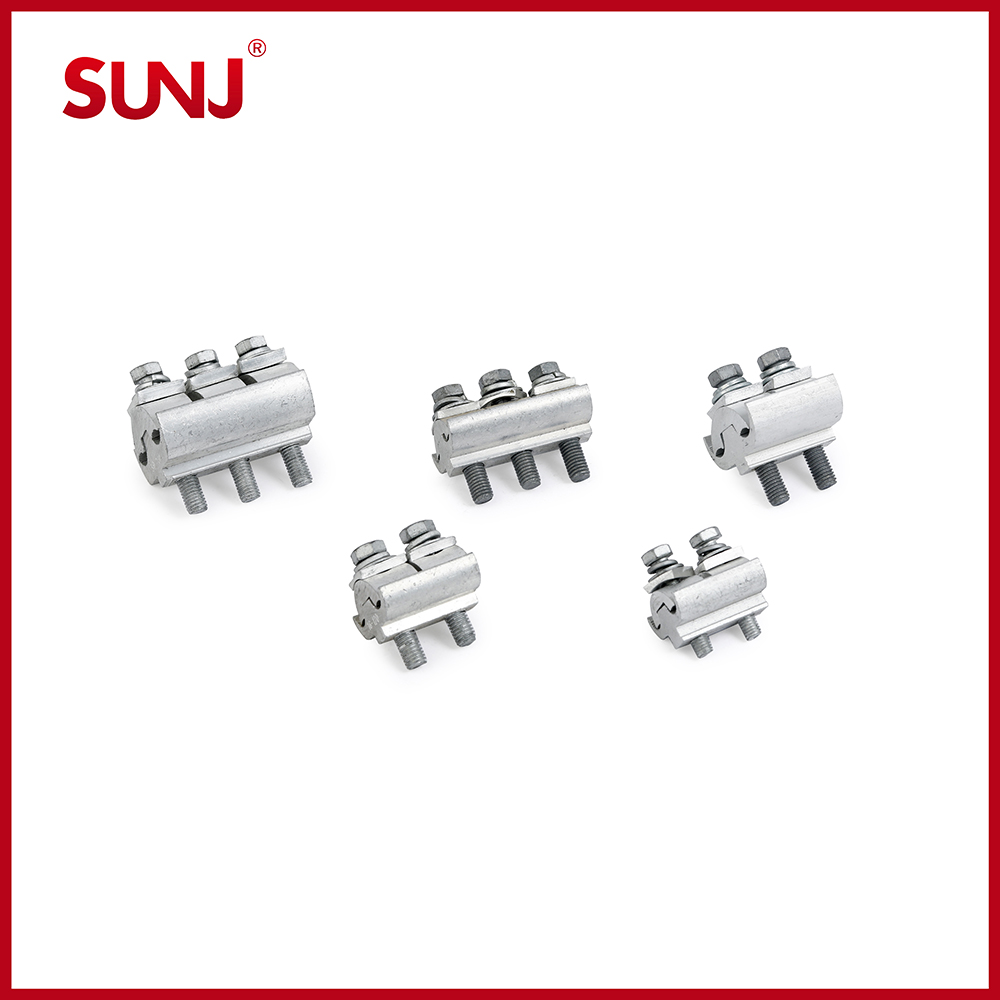

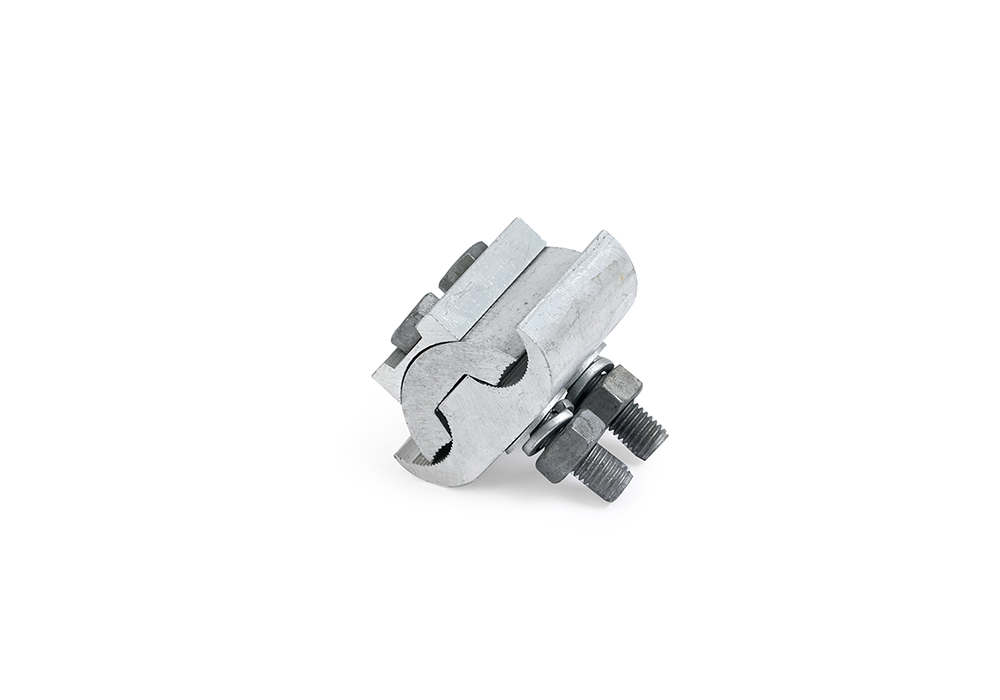

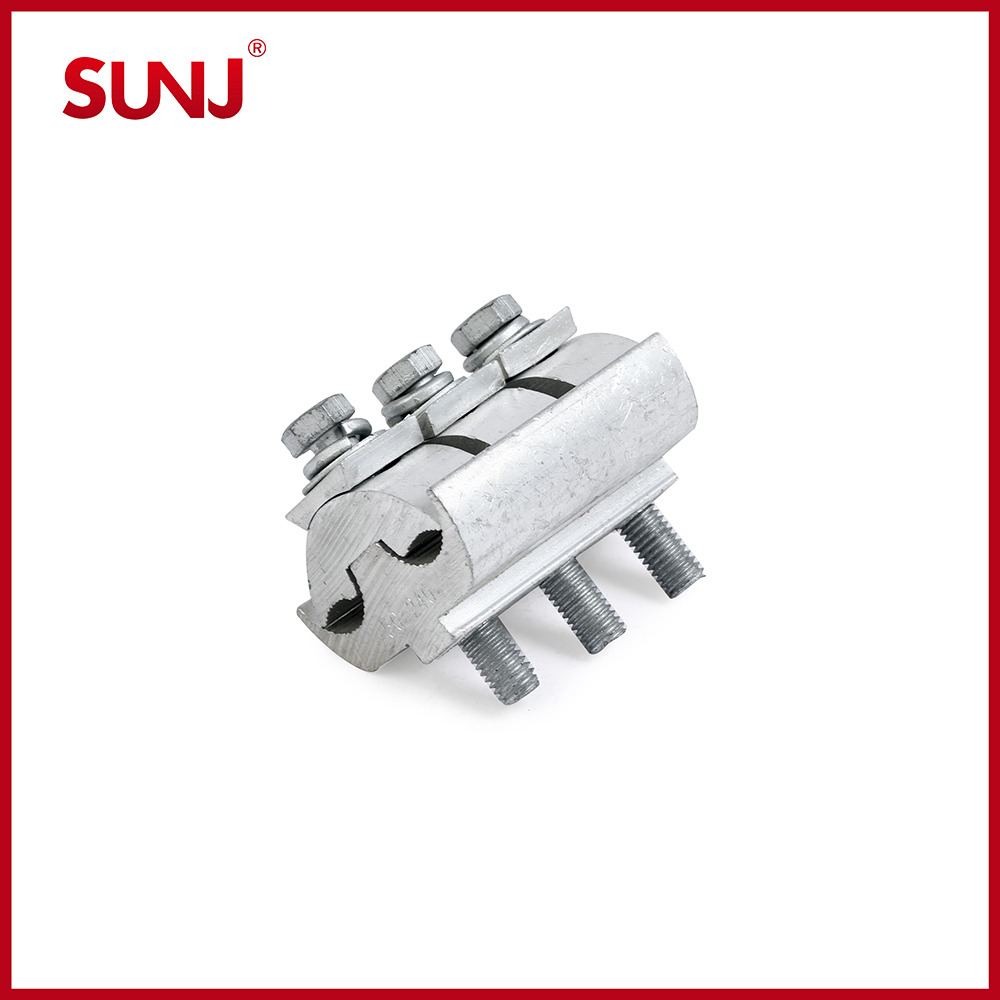

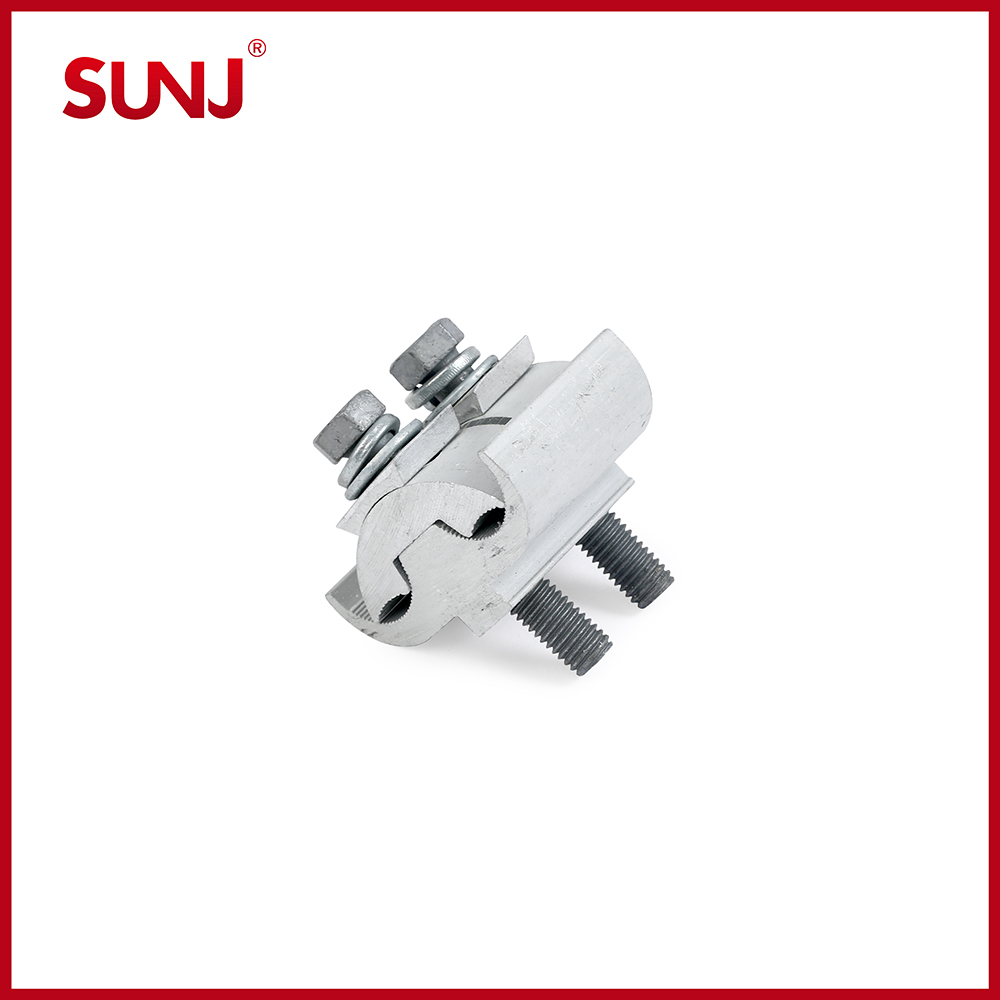

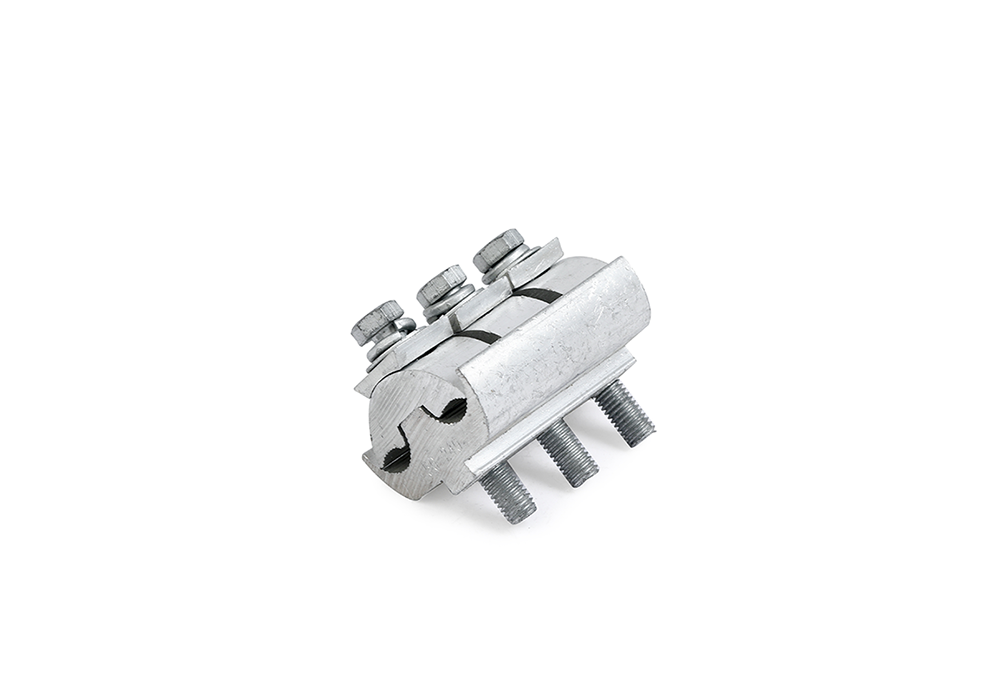

JBL series specific forms parallel groove clamp is suitable for unendure force splicing and branch on the aerial wire.It has the function of protection and insulation when it matches insulating sheath.
1.Select oxidize-resistance aluminium alloy.
2.Teeth-shape structure,touch with lowly resistance,reliable splicing.
Datas
|
Type |
Conductor Cross-section(mm²） |
Bolt |
|
JBL-H-1A |
16-70 |
2*M8*50 |
|
JBL-H-2A |
16-120 |
2*M10*55 |
|
JBL-H-3A |
50-240 |
2*M10*70 |
|
JBL-H-2B |
16-120 |
3*M10*55 |
|
JBL-H-3B |
50-240 |
3*M10*70 |
|

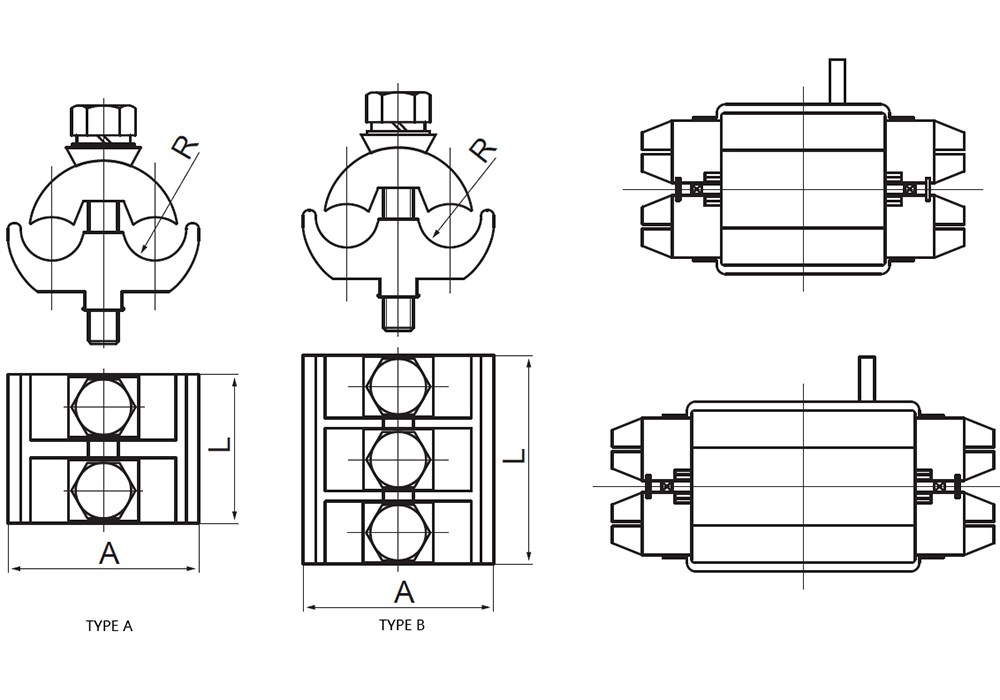

Notice:A type is 2 bolts,B type is 3 bolts. |
||
|

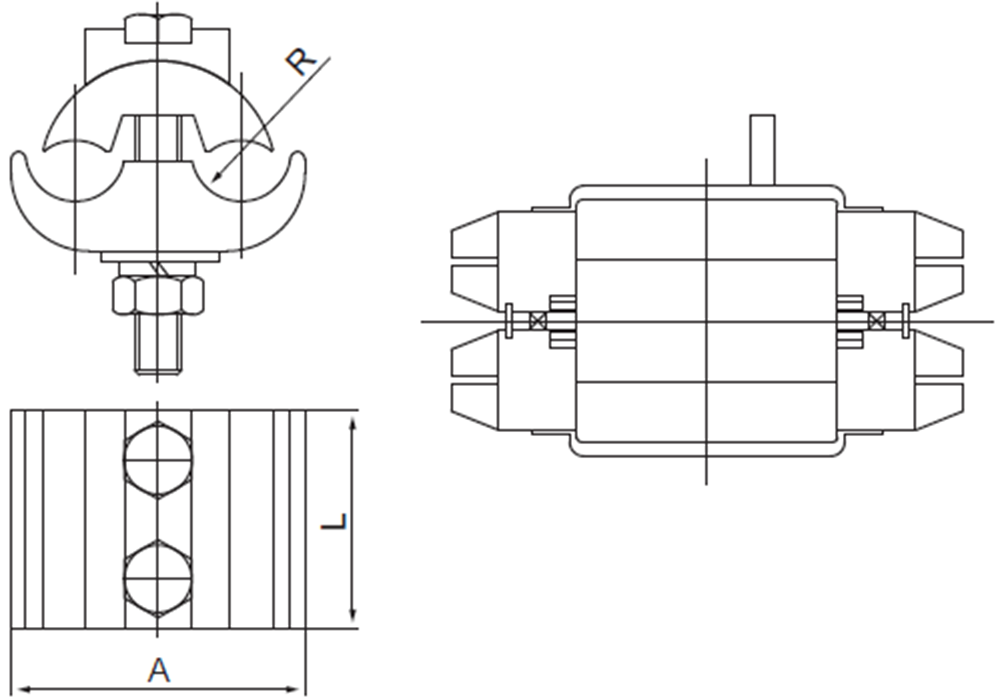

Type |
Conductor Cross-section(mm²） |
Bolt |
|
JBL-B-2A |
16-120 |
2*M10*55 |
|
JBL-B-3A |
50-240 |
2*M10*70 |
|
Notice:A type is 2 bolts. |
||
