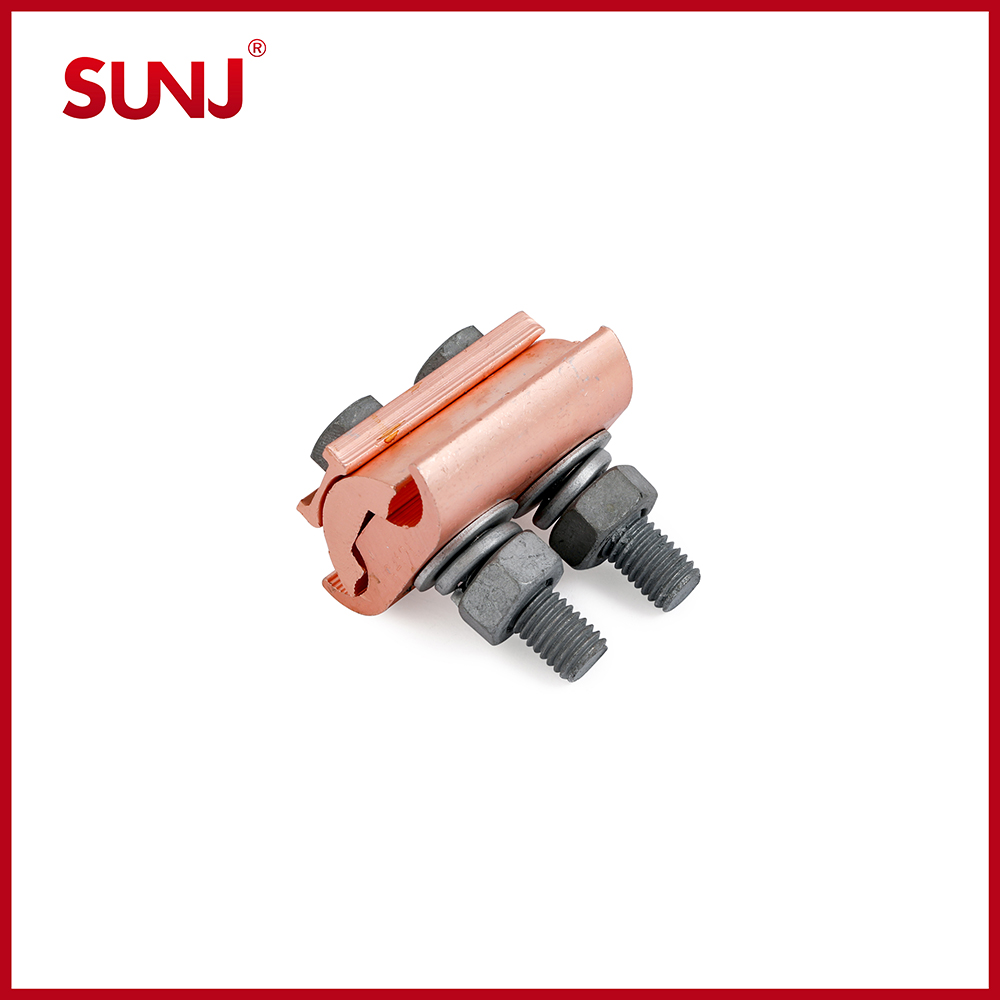

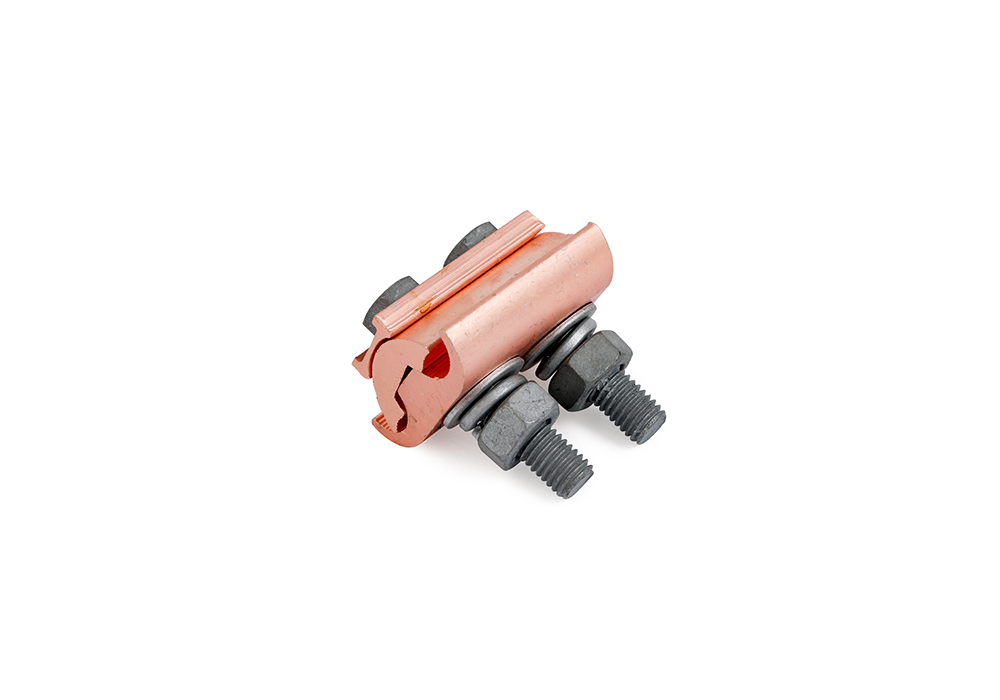

JBT-Y
JBT-Y
JBT-Y series non conventional type parallel groove clamp is applicable for the unendurable force splicing and branching of aerial line,it has the function of protection and insulation when it matches insulating sheath.
1.Select oxidize-resistance cooper alloy.
2.Teeth-shape structure,touch with lowly resistance,reliable splicing.
Datas
|
Type |
Conductor Cross-section(mm²） |
Bolt |
|
JBT-Y-2A |
16-120 |
2*M10*55 |
|
JBT-Y-3A |
50-240 |
2*M10*70 |
|
Notice:A type is 2 bolts. |
||
