JBTL
JBTL

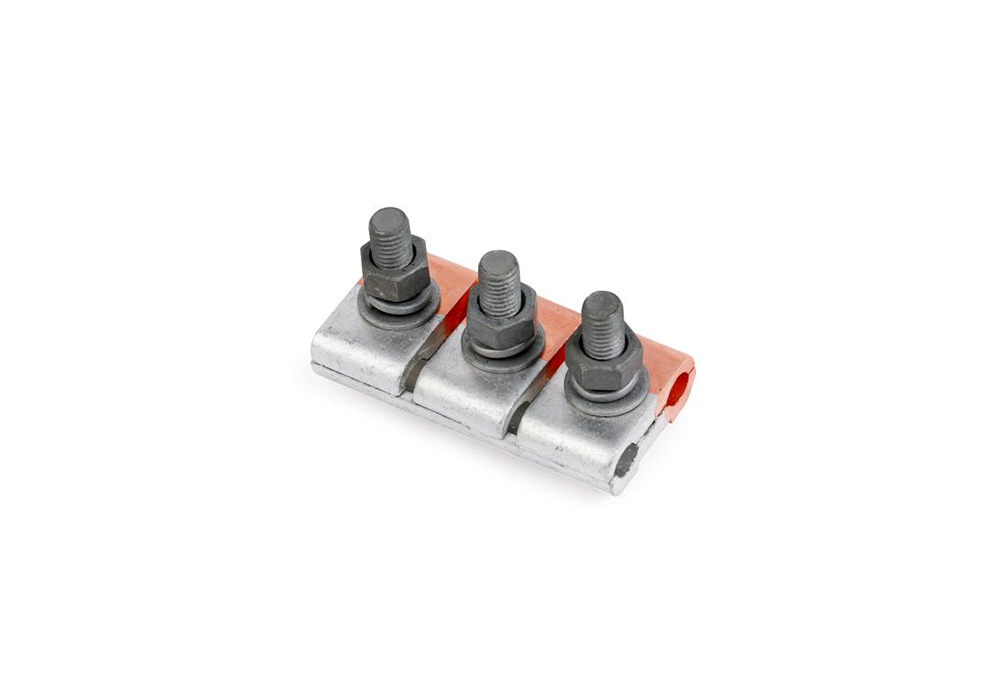

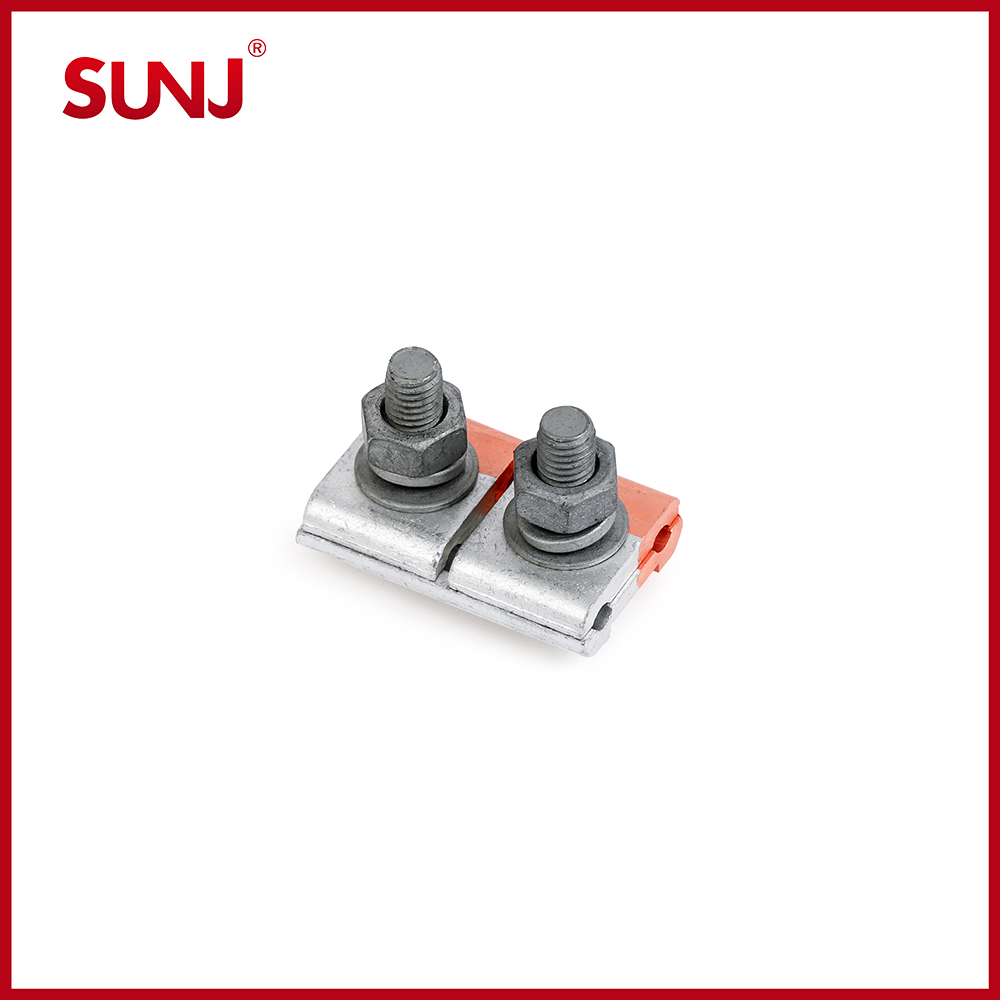

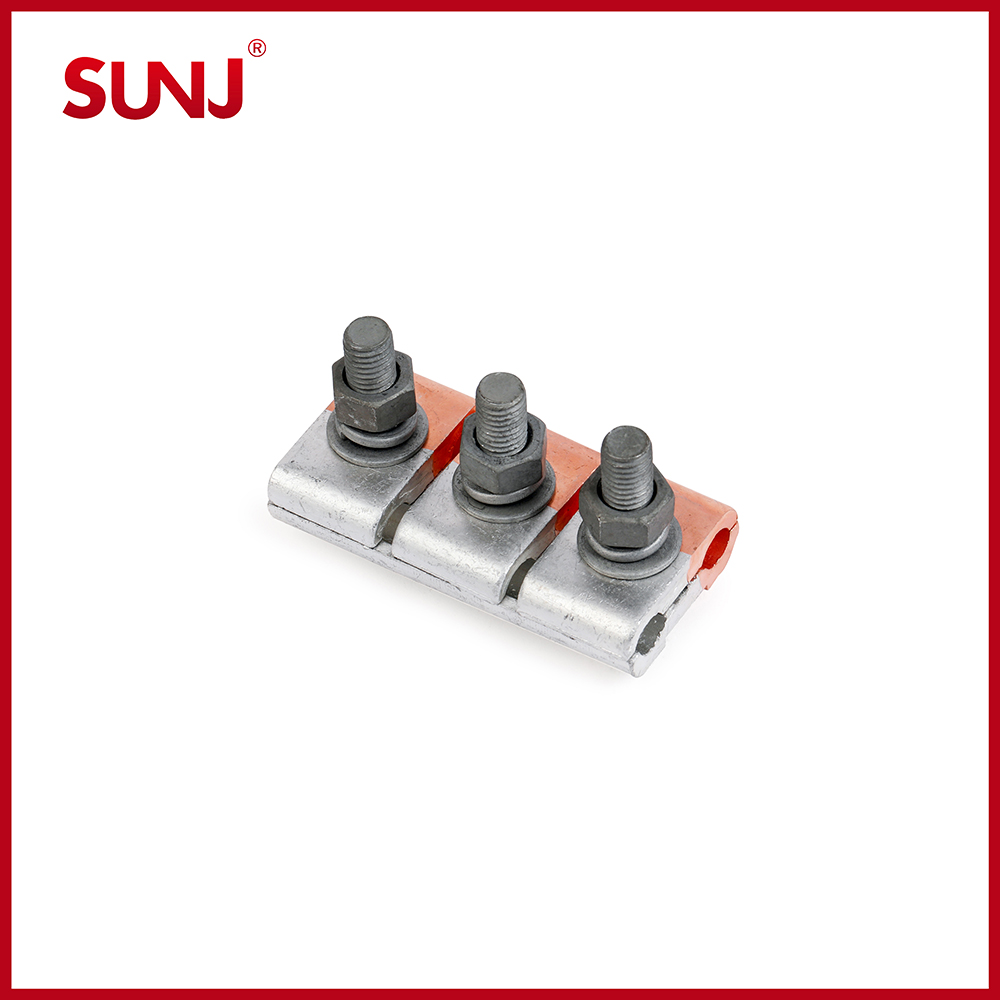

JBTL bimetallic parallel groove clamp is suitable for connection of AL conductors & ACSR conductors with copper tap-off conductors.
1.Body is made of high corrosion resistant copper alloy and aluminium alloy.
2.Overtorque breaking shear head allowing a good clamping torque.

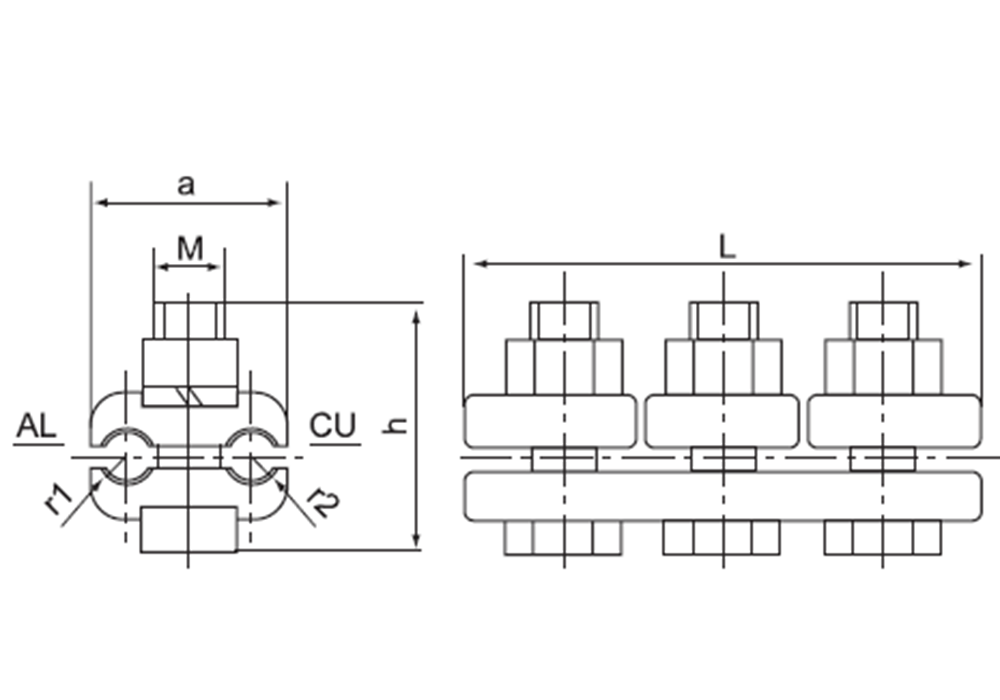

Datas
|
Type |
Conductor Cross-section(mm²） |
Bolt |
|
JBTL-0 |
16-25 |
2*M10*45 |
|
JBTL-1 |
35-50 |
2*M12*45 |
|
JBTL-2 |
70-95 |
3*M12*45 |
|
JBTL-3 |
120-150 |
3*M16*65 |
|
JBTL-4 |
185-240 |
3*M16*70 |
