MJPT
MJPT

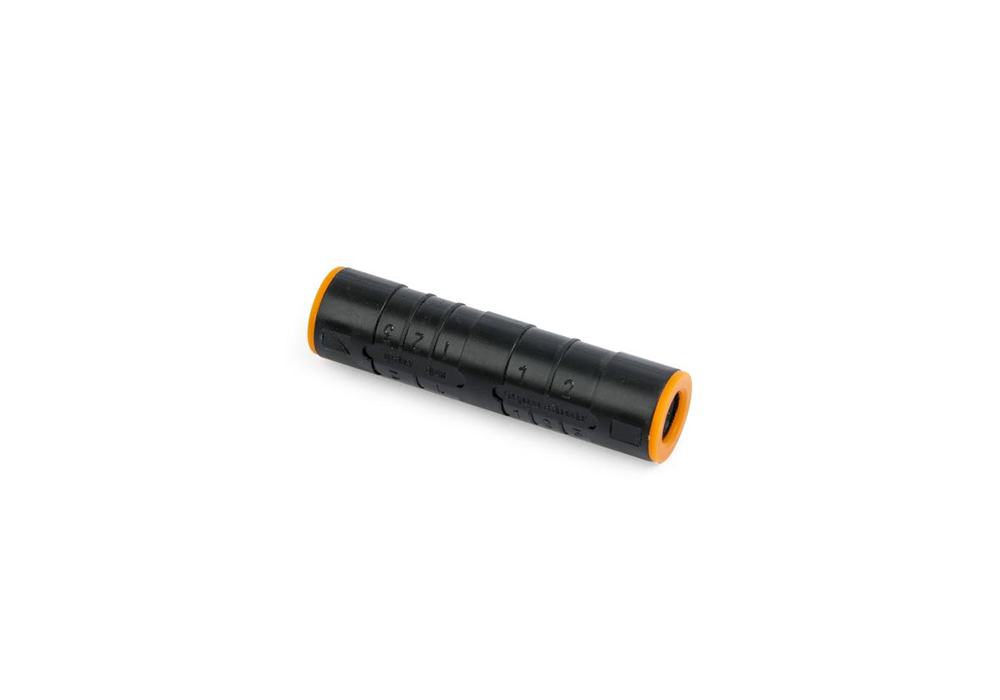

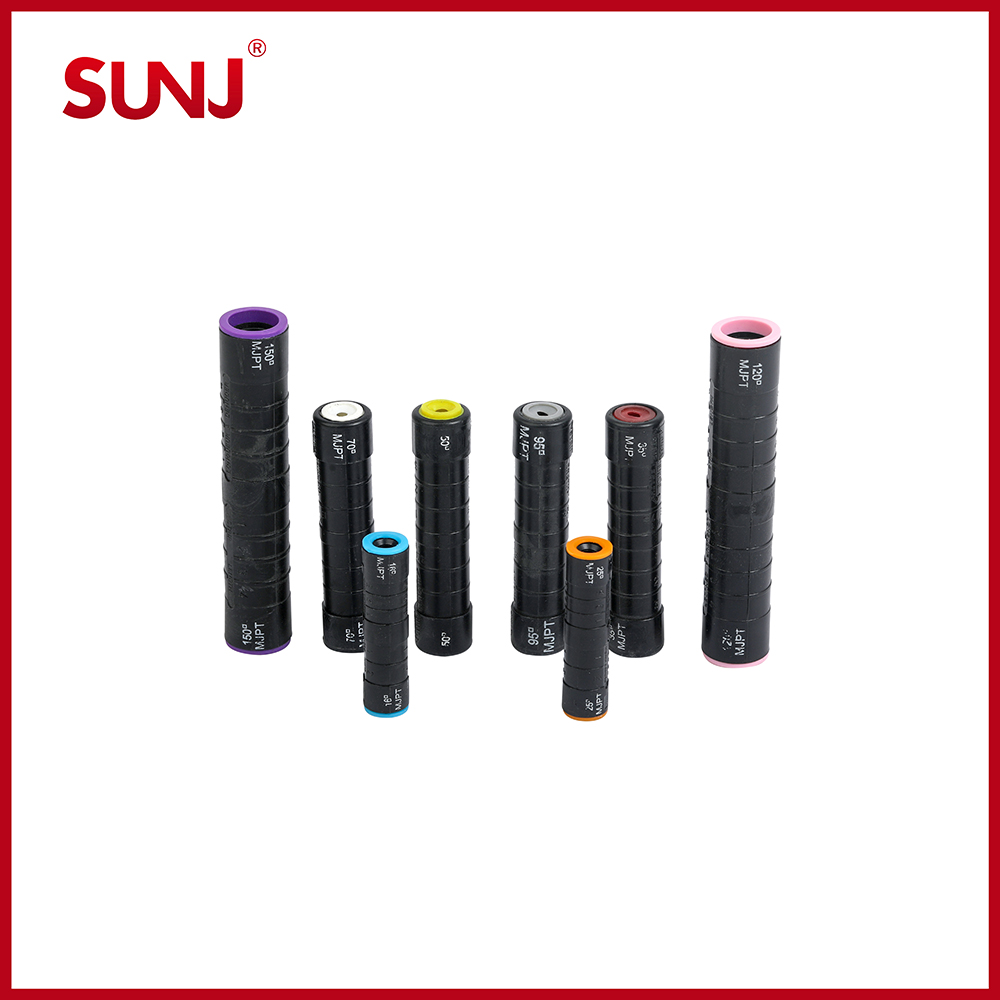

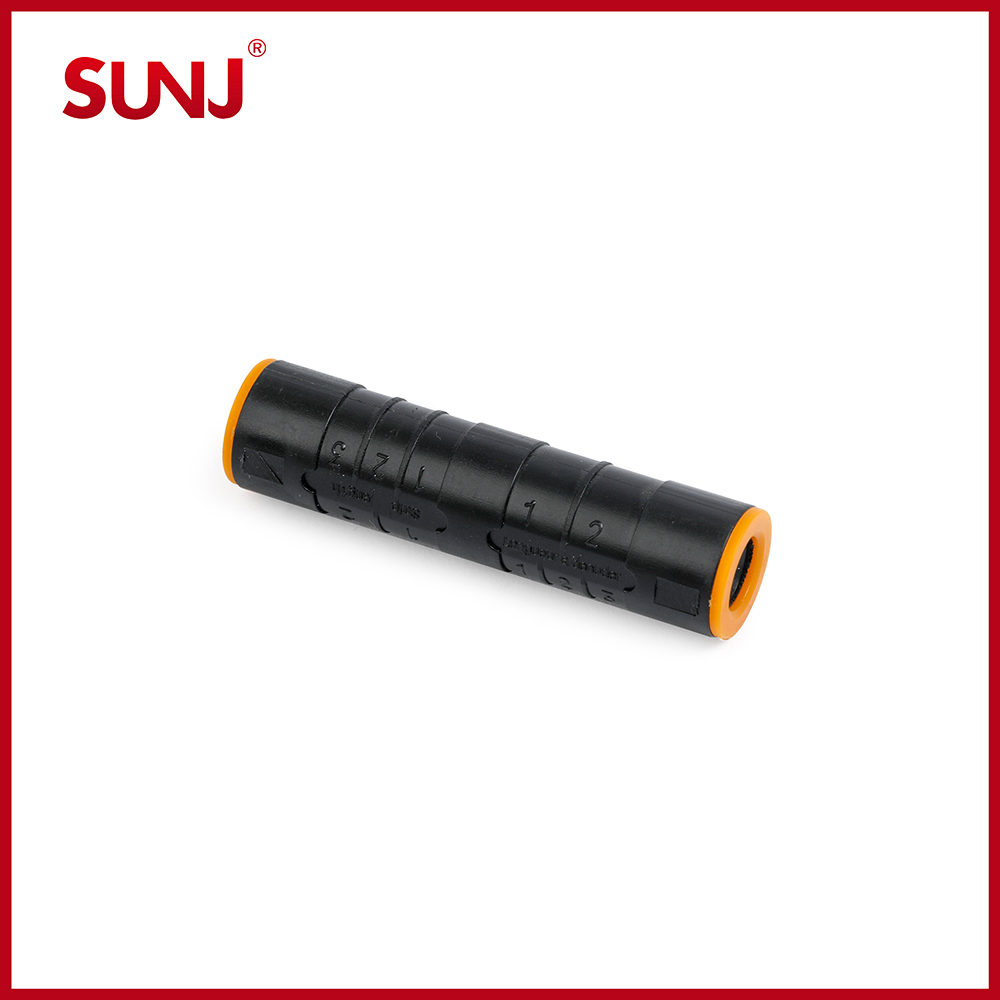

MJPT pre-insulated connectors are designed for LV-ABC systems with neutral messenger.MJPT is used on phase conductor.
Material:Al≥99.5%
Material:Al≥99.5%
1. Insulation sheath is made of weather and UV resistant material.
2. Clear marking on insulation sheath to indicate crimping die,crimping sequence and times,cross-section of conductor and stripping length.
3. Elastomeric caps and pre-filled silicone grease ensure superior waterproof.
4. Stripping of cable insulation is required before insertion.
5. Tested by dielectrical voltage of 6kV for 1minute under water.
6. Standard:EN 50483-4,NF C33-021
Datas
|

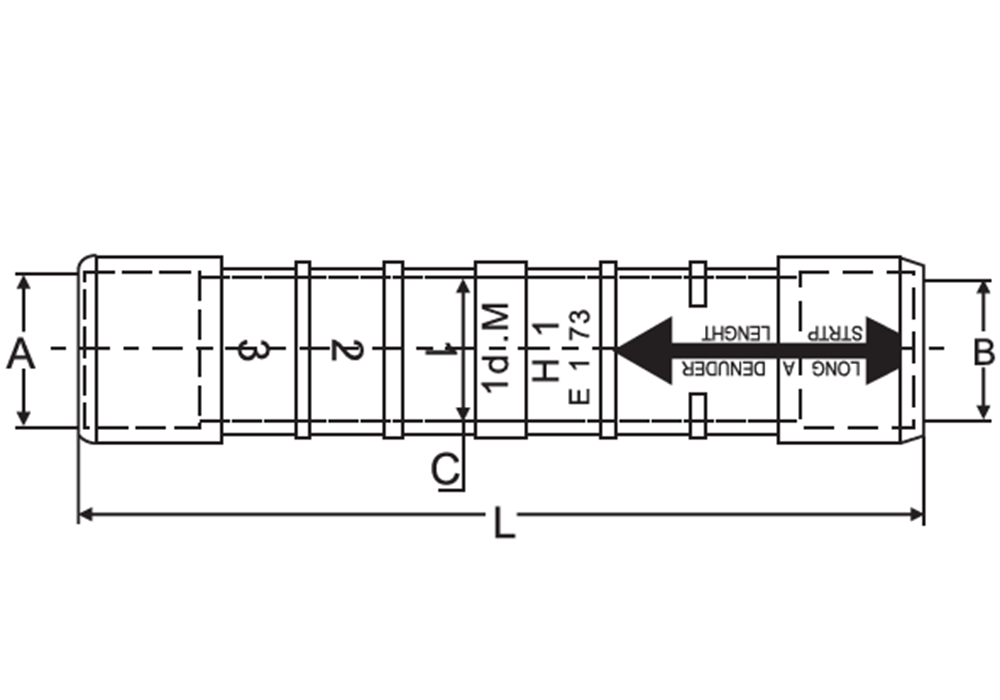

Type |
Cross section(mm²） |
Cable size(mm²） |
Plastic sleeve Diameter(mm) |
|
|
A |
B |
C |
||
|
MJPT 16 |
16 |
16 |
16 |
20 |
|
MJPT 25 |
25 |
25 |
16 |
20 |
|
MJPT 35 |
35 |
35 |
20 |
20 |
|
MJPT 50 |
50 |
50 |
20 |
20 |
|
MJPT 50-25 |
50-25 |
50 |
25 |
20 |
|
MJPT 50-35 |
50-35 |
50 |
35 |
20 |
|
MJPT 54 |
54 |
54 |
20 |
20 |
|
MJPT 70 |
70 |
70 |
20 |
20 |
|
MJPT 70-35 |
70-35 |
70 |
50 |
20 |
|
MJPT 70-50 |
70-50 |
70 |
95 |
20 |
|
MJPT 95 |
95 |
95 |
95 |
20 |
|
MJPT 95-35 |
95-35 |
95 |
35 |
20 |
|
MJPT 95-50 |
95-50 |
95 |
50 |
20 |
|
MJPT 95-70 |
95-70 |
95 |
70 |
20 |
|
MJPT 120 |
120 |
120 |
120 |
20 |
