NLL
NLL

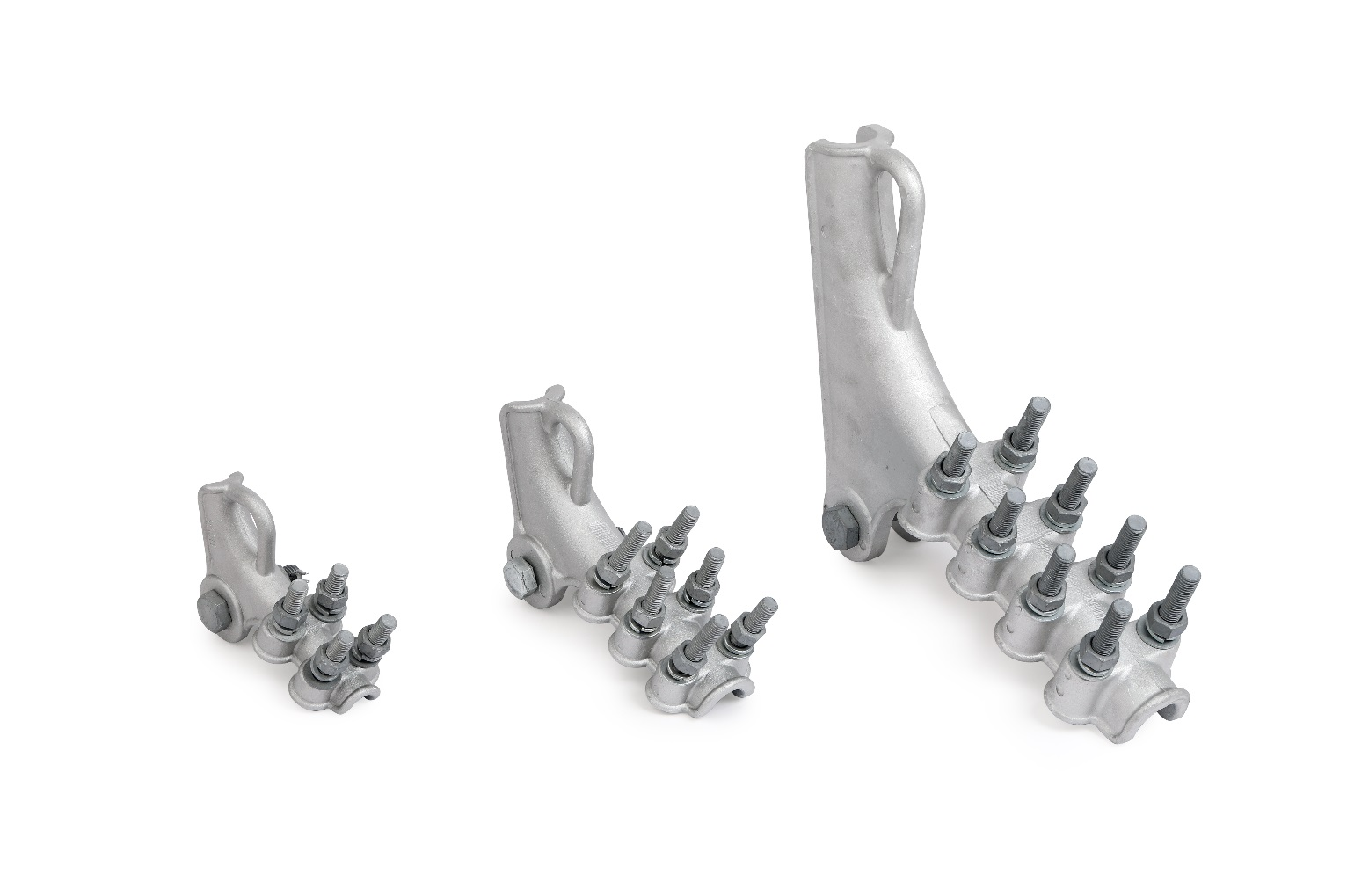

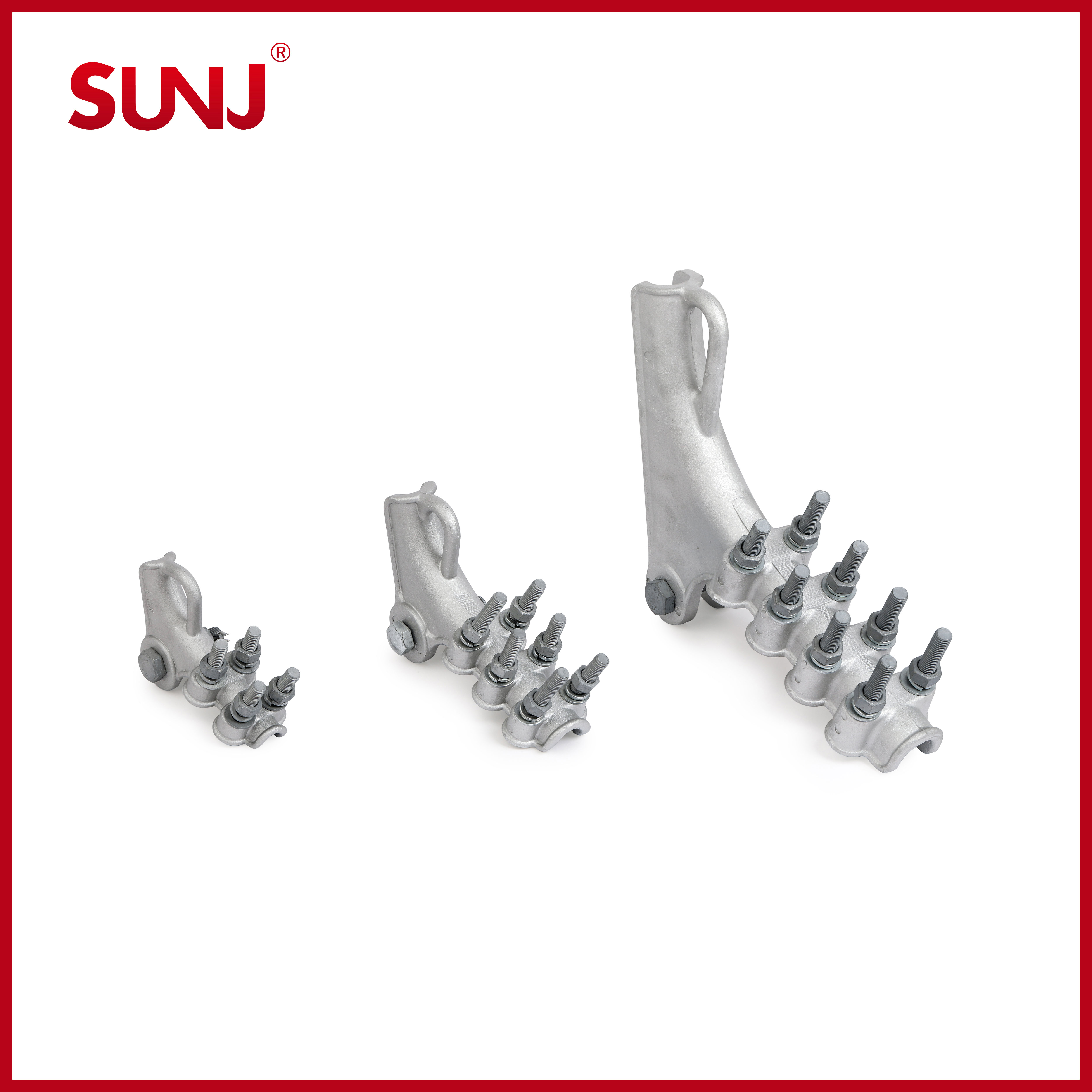

NLL series aluminum alloy strain clamp(Bolt type) is suitable for aerial line up to 35kV,fixing aluminum wire or steel core minium wire on the strain pole,aerial insulation aluminum conductor and insulation aluminum cover are being used tofether,and the action is insulation protection.
1.The body is made of high-strength.
2.Smooth surface long servile life.
3.Easy installation.
4.No waste electric energy
Datas
|
TYPE |
Conductor dia (mm) |
U bolts |
Breaking load |
|
|
Dia |
Qty |
|||
|
NLL-1 |
8.0-12.0 |
12 |
2 |
40 |
|
NLL-2 |
12.0-16.0 |
12 |
2 |
60 |
|
NLL-3 |
16.0-18.0 |
14 |
3 |
70 |
|
NLL-4 |
18.0-22.5 |
14 |
3 |
90 |
|
NLL-5 |
22.5-29.0 |
16 |
4 |
120 |
|
NLL-6 |
26.0-32.7 |
18 |
4 |
120 |
