PAG
PAG

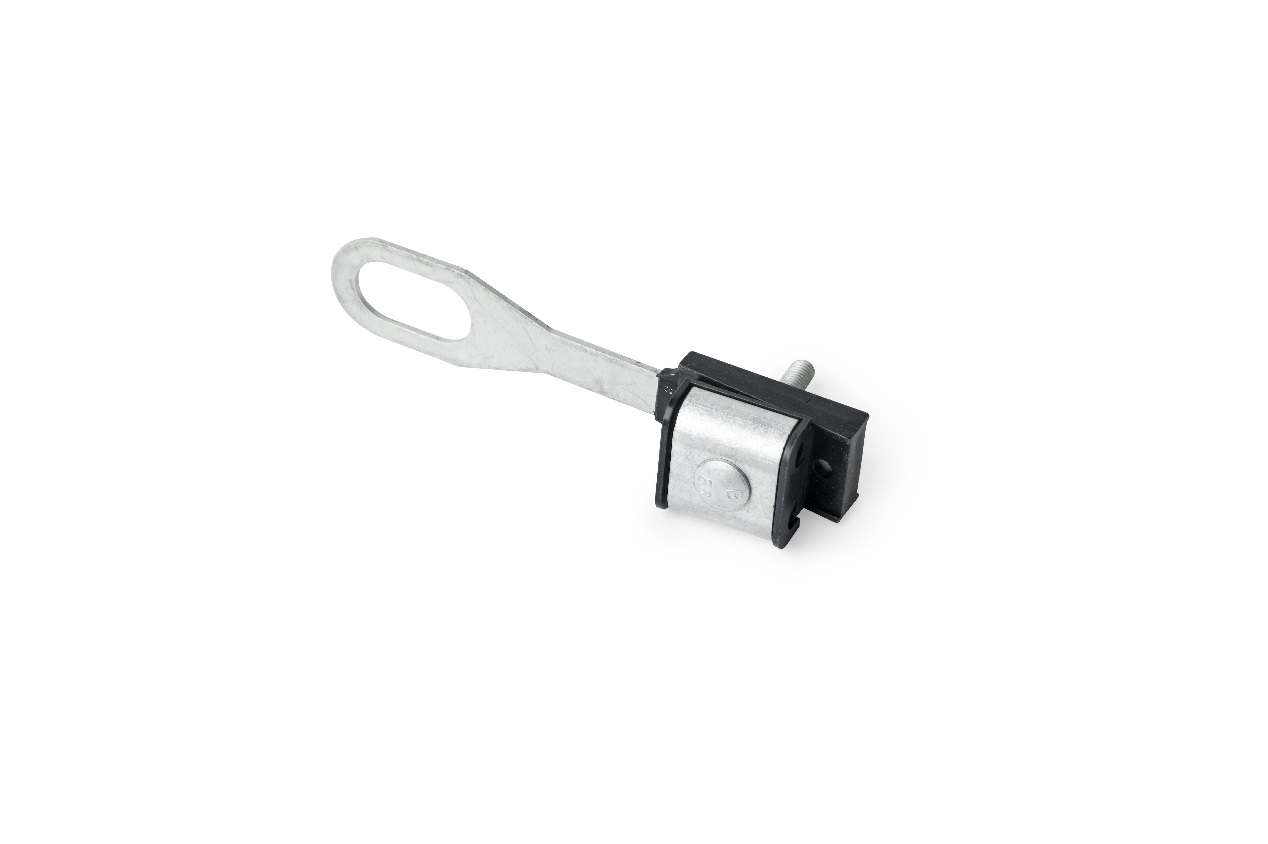

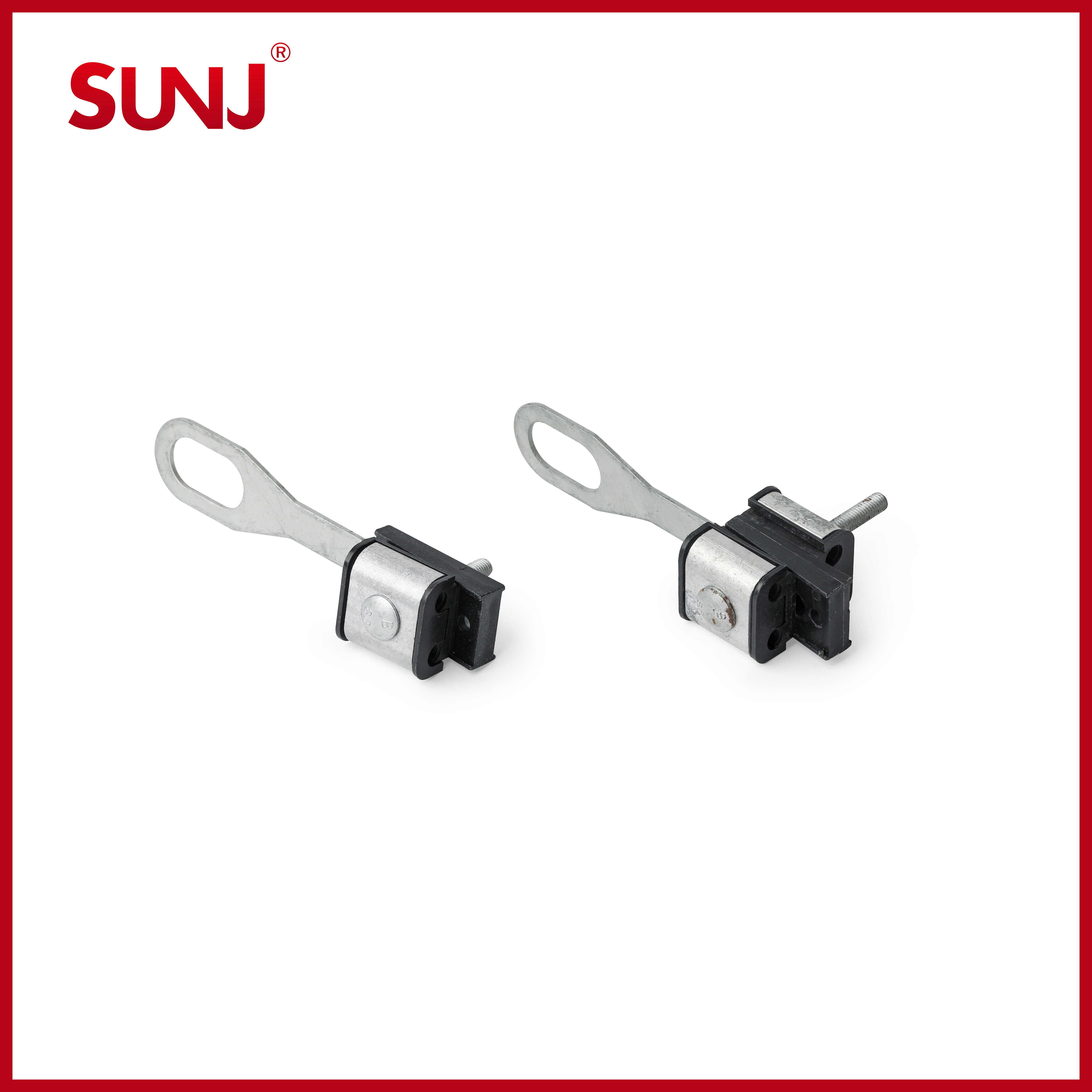

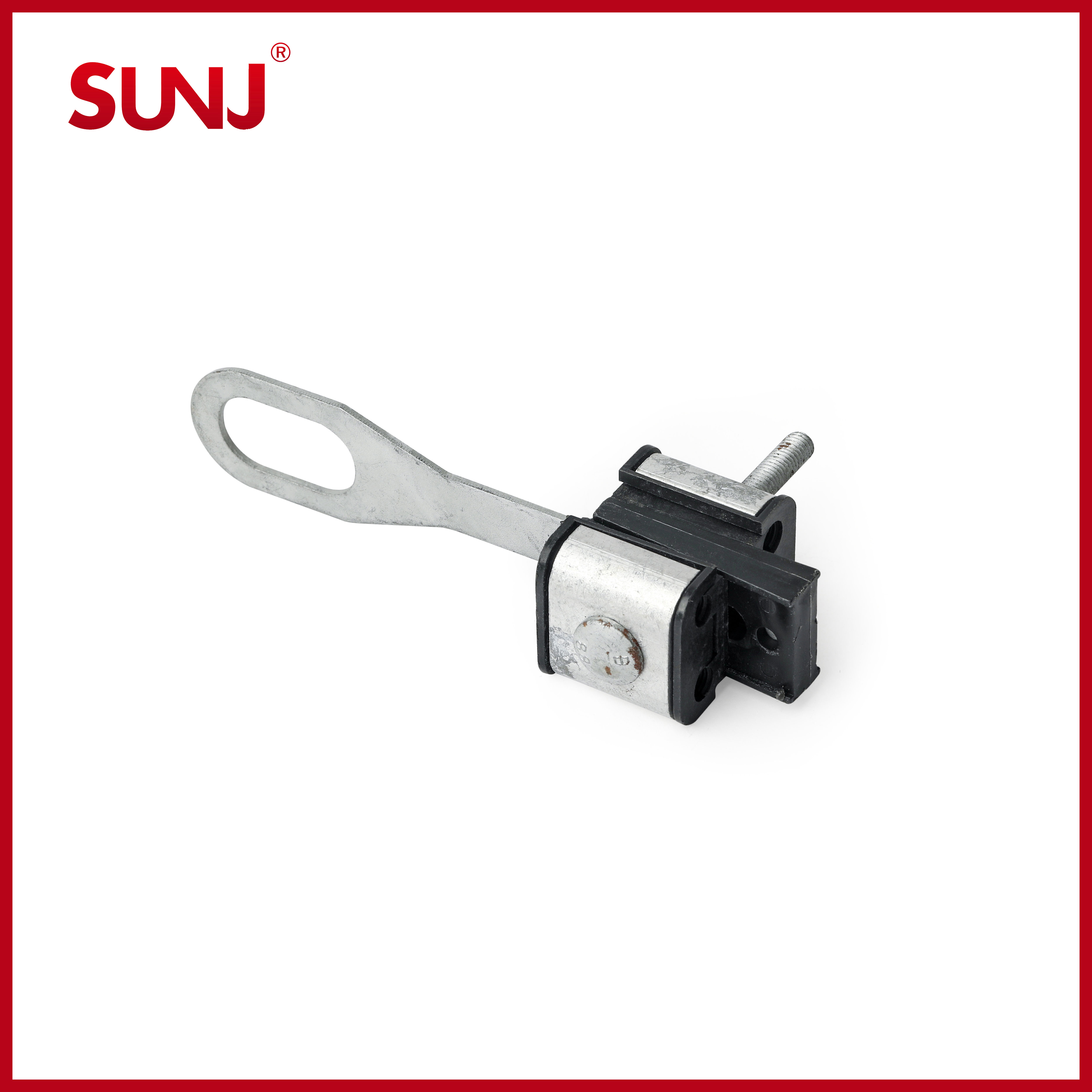

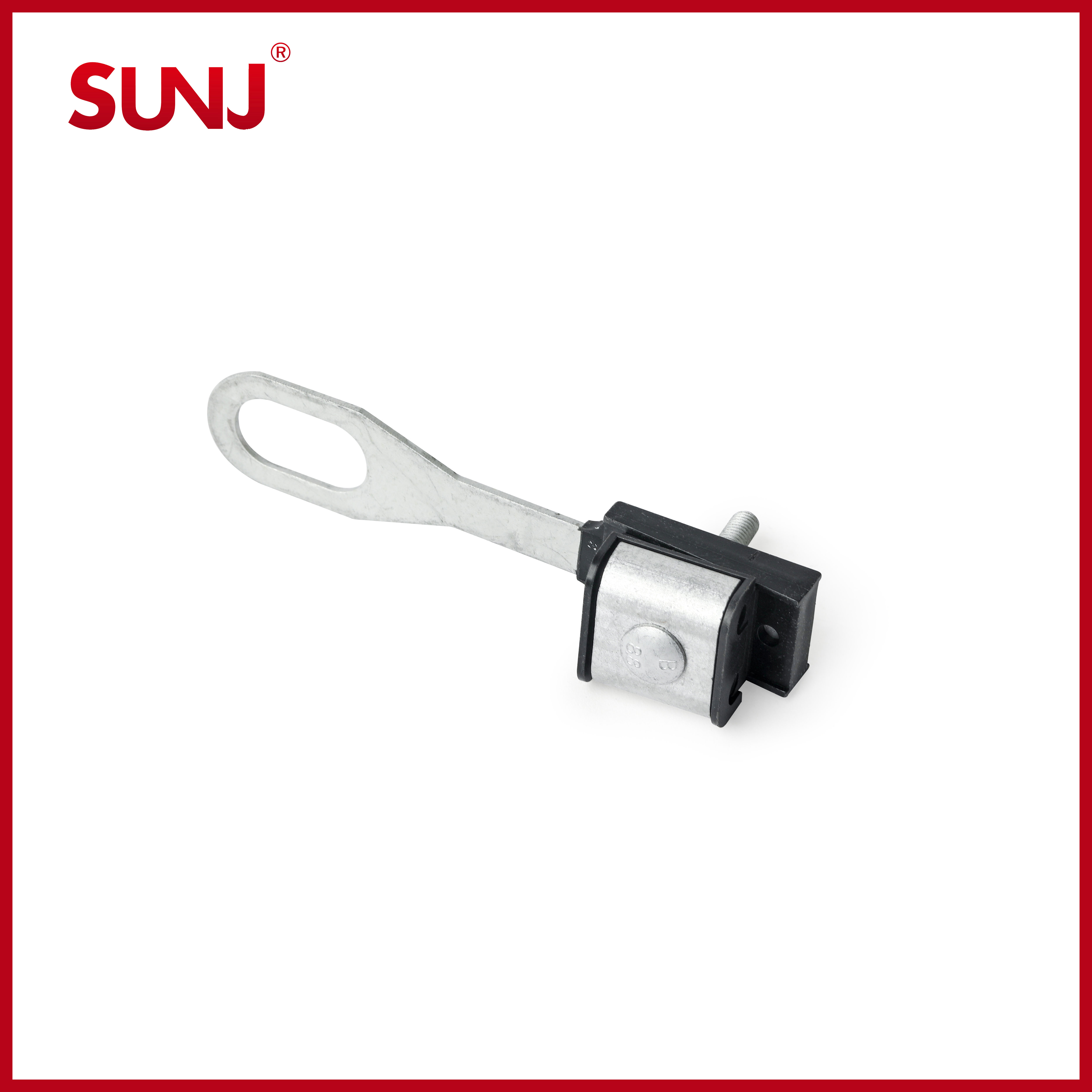

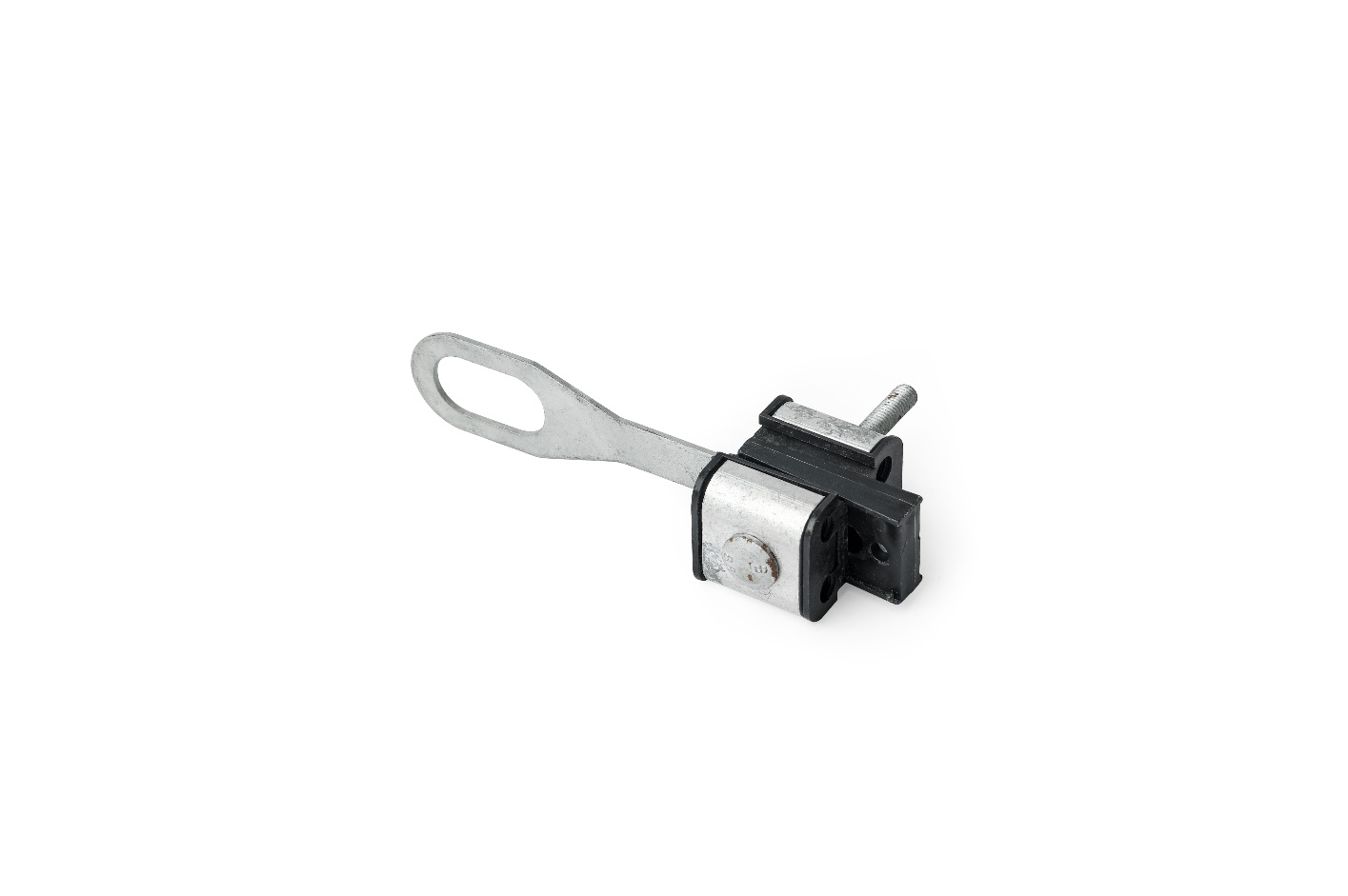

Used for the termination of 2 or 4 cores overhead cable to poles or walls by means of standard hooks.
1.Reinforced polyamide fiberglass body.
2.Two clamping steel plates with steel bolts.
3.The spring,provide automatic opening of clamp for installation and fastening of wires.
Datas
-
PAG1
-
PAG2
|
Type |
Cross section(mm²） |
Messenger DIA.(mm) |
Breaking load |
|
PAG1
|
2*(16-35) |
4-8 |
6kN |
|
PAG2
|
4*(16-35) |
4-8 |
8kN |
