PAM-09
PAM-09

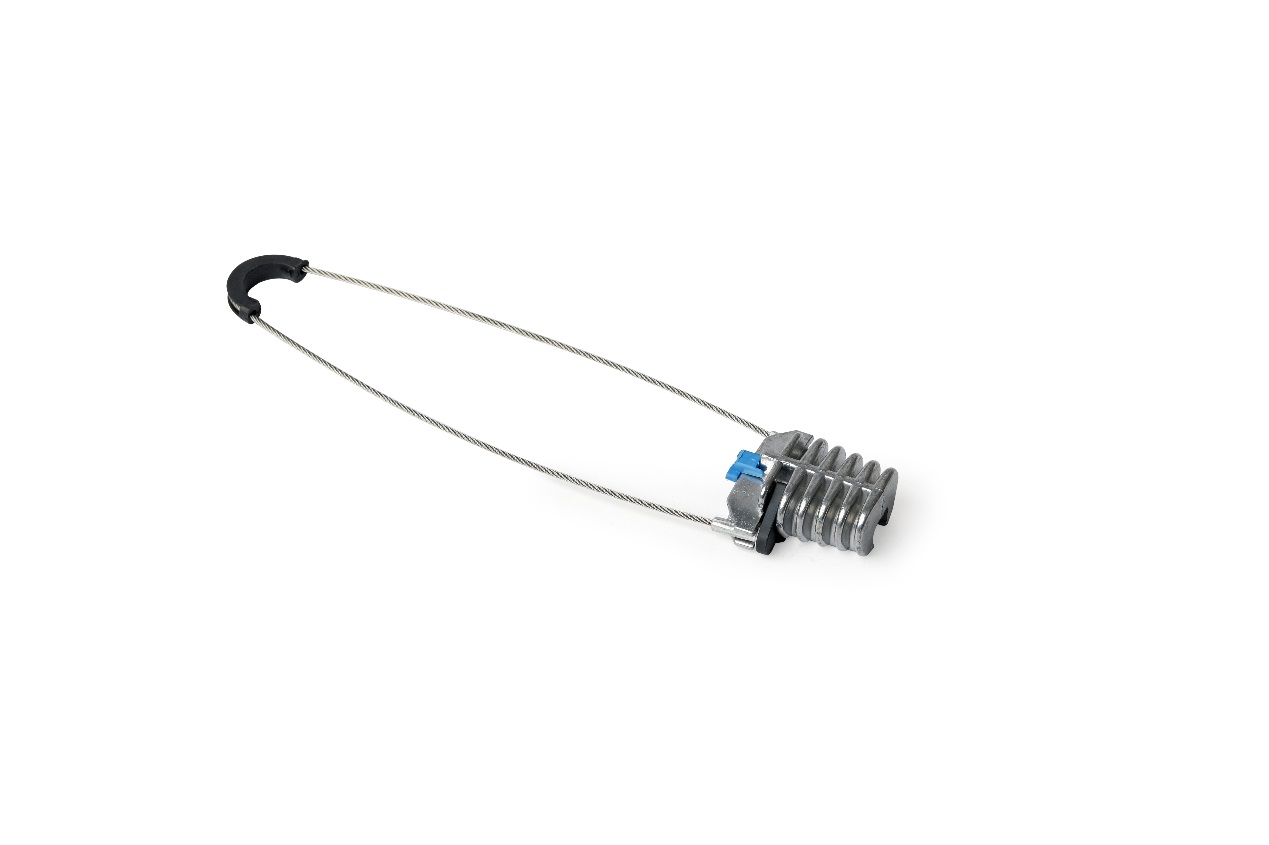

This anchoring assembly is used for the single anchoring of A.B.C.(Aerial Bundled Conductors) with insulated neutral messenger. It comprises a bracket supporting one or two anchoring clamps.
1.Reduced dimensions for easier handling
2.High mechanical and climatic resistance
3.Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath.
4.Stainless steel bail with two marbles compressed on the end.
5.Standard:NF C 33-041
Datas
|
Type |
Cross section(mm²） |
|
PAM-06
|
16-20mm²
|
|
PAM-07
|
16-25mm²
|
|
PAM-08
|
16-25mm²
|
|
PAM-09
|
16-25mm²
|
