PAT
PAT

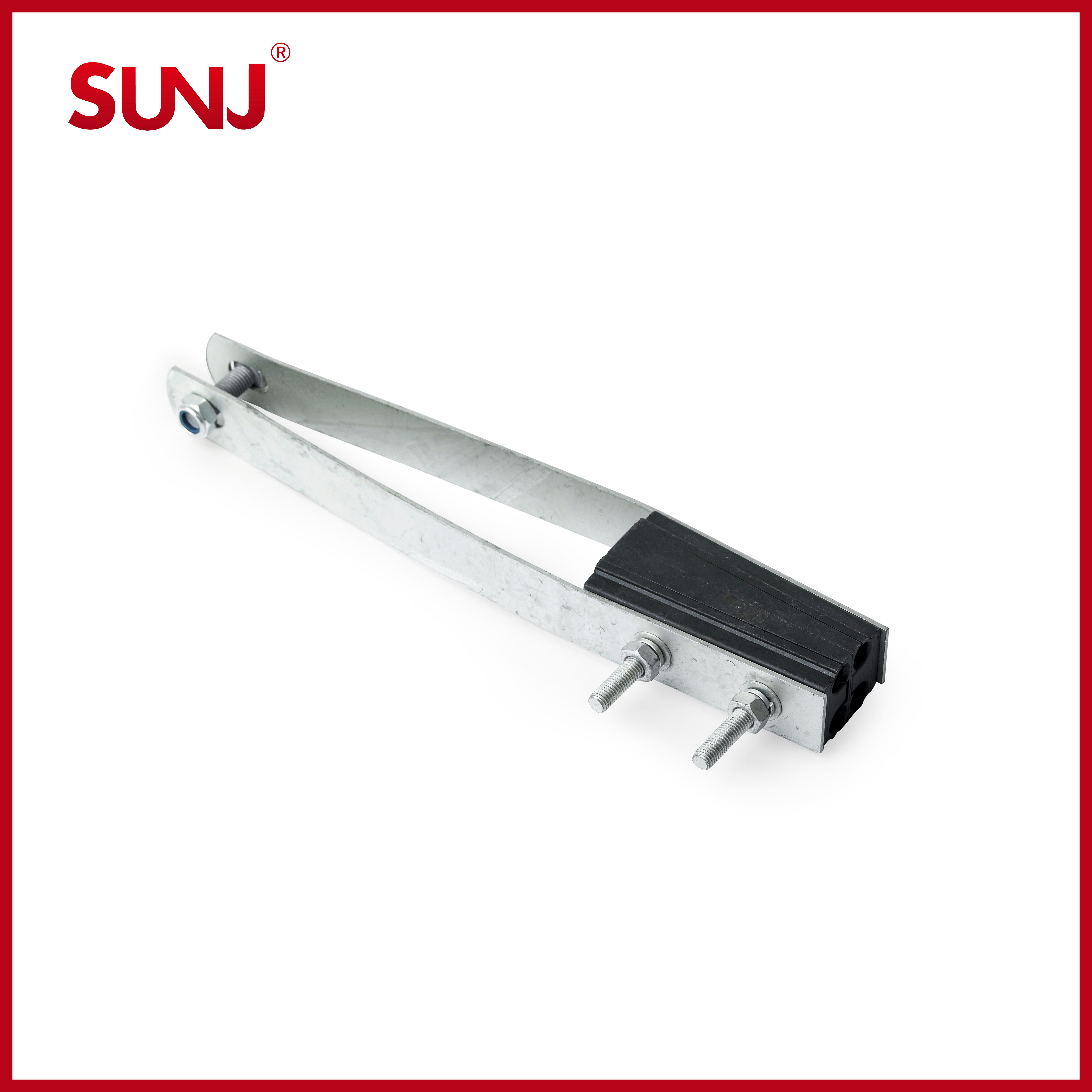

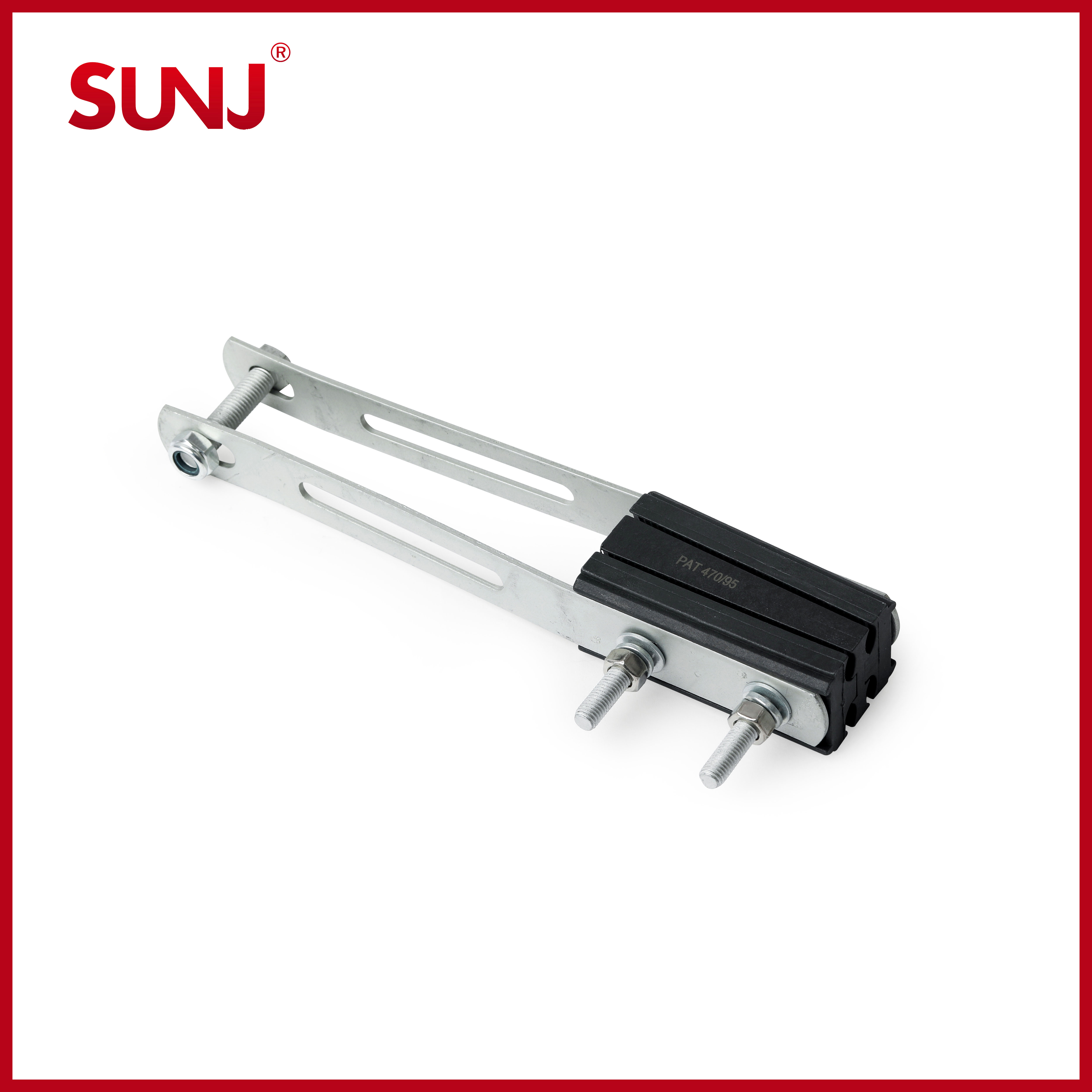

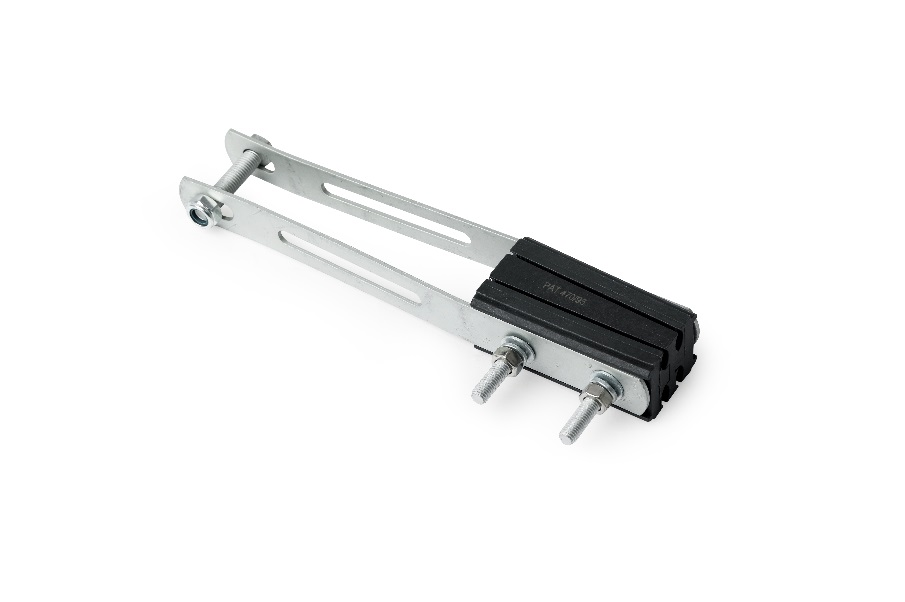

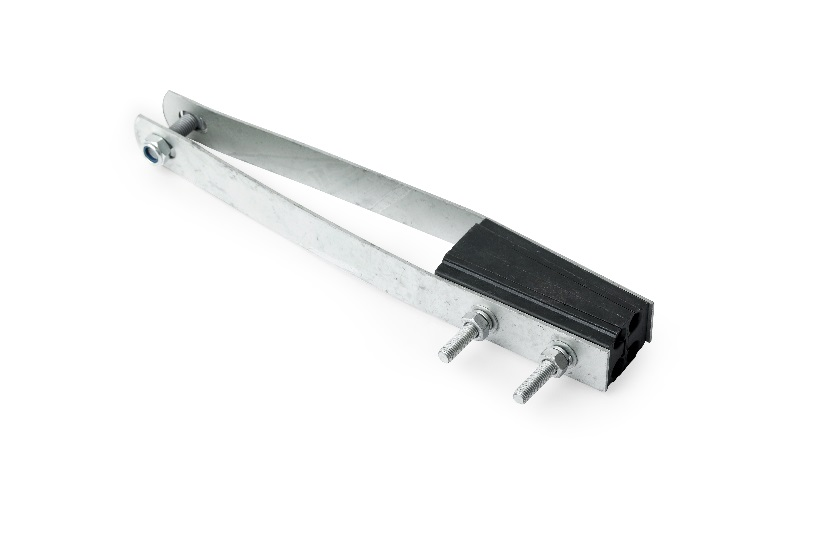

PAT tension clamp are applicable to four-core self-supporting low voltage aerial cables.These clamps are used for anchoring and tightening insulated conductors.
1.Iron braces are made of steel strap with surface galcanized.
2.Wedges are made of weather resistant and anti-UV material with high mechanical strength.
3.Equipped with bolts.
4.Strong springs between wedges facilitate the insertion of conductors.
5.No loose parts could fall off during installation.
Datas
|
Type |
Cross section(mm²） |
Messenger DIA.(mm) |
Breaking load |
|
PAT 435/50 |
4*(35-50) |
11-14 |
15kN |
|
PAT 450/120 |
4*(50-120) |
11-17 |
20kN |
|
PAT 470/95 |
4*(70-95) |
14-16 |
15kN |
