RPA
RPA

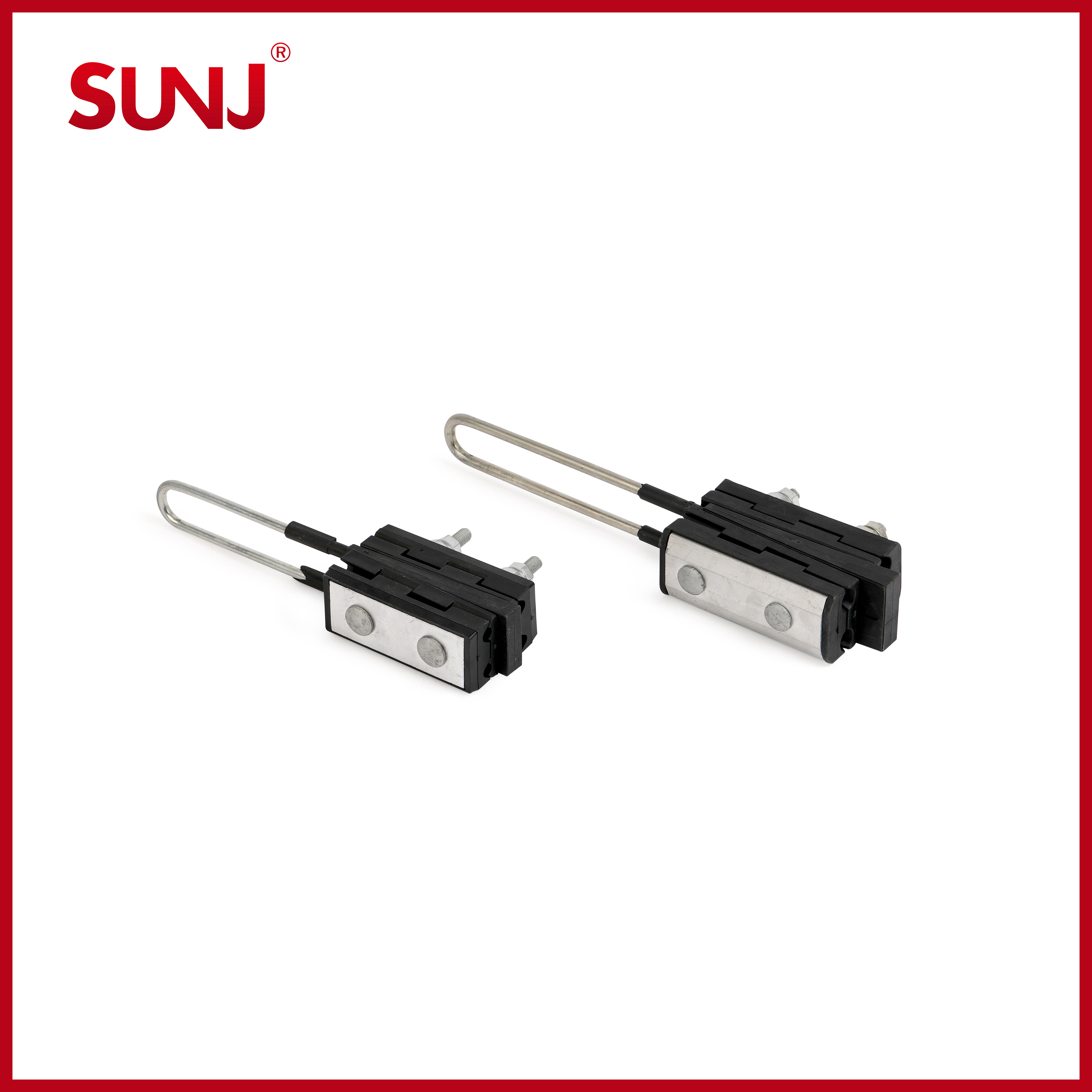

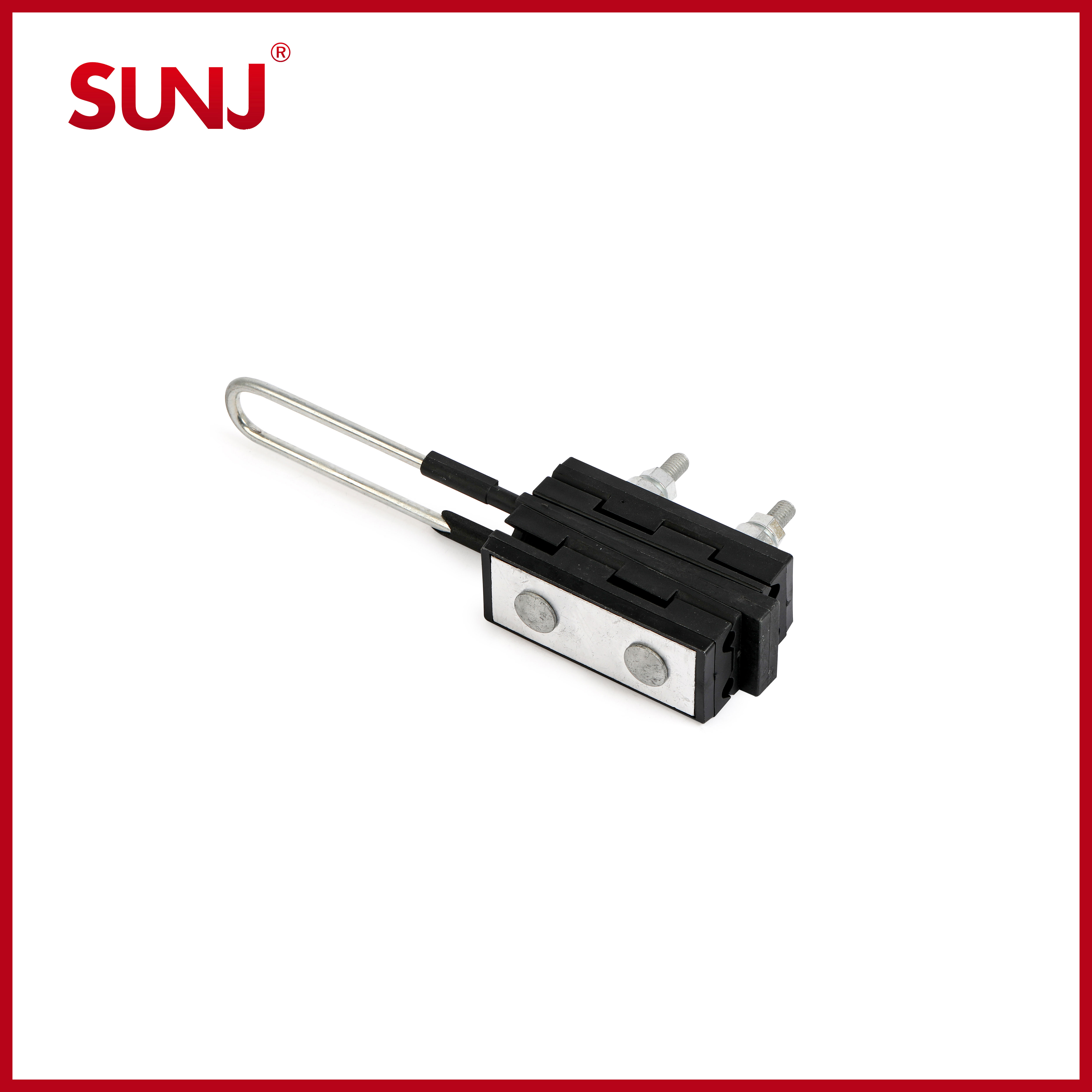

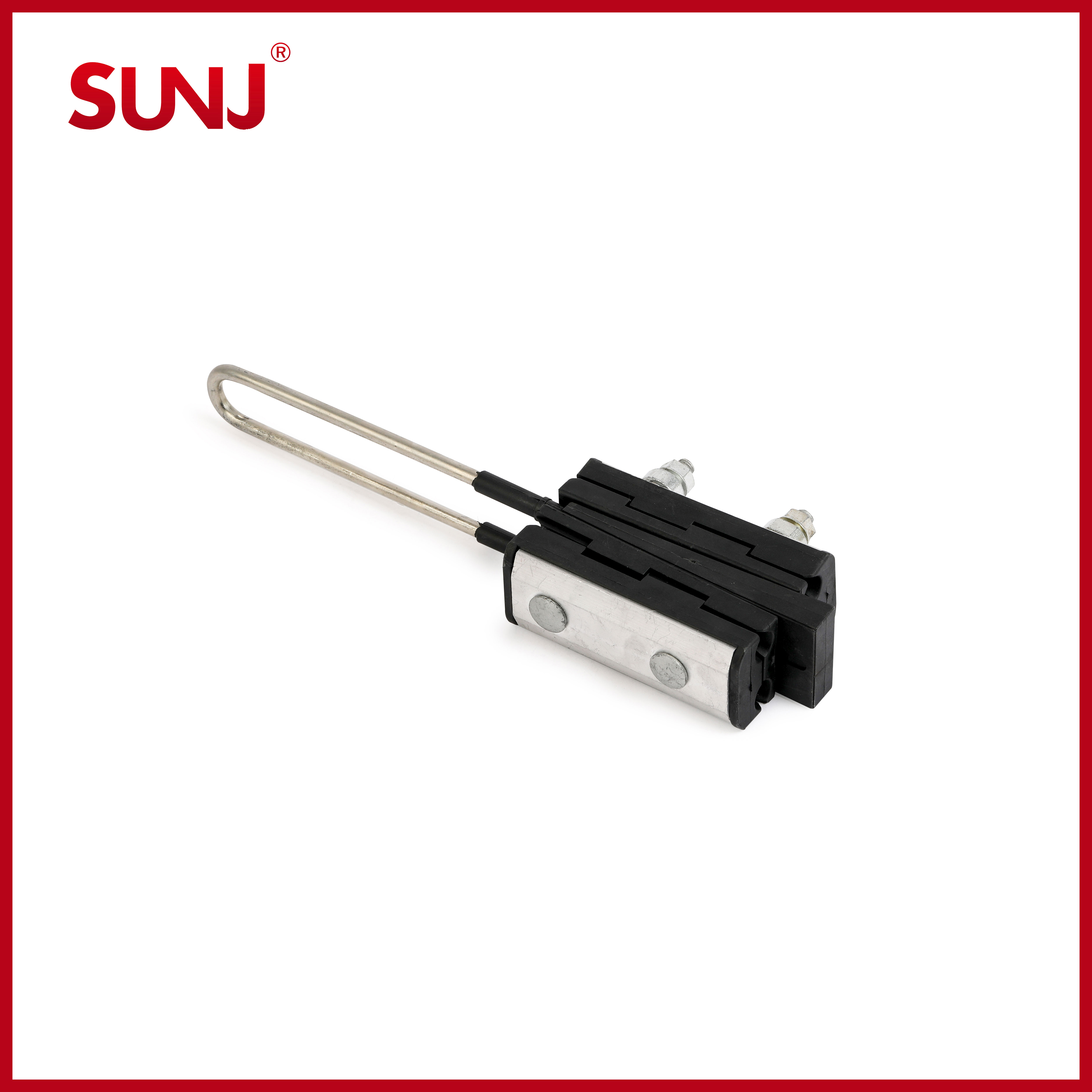

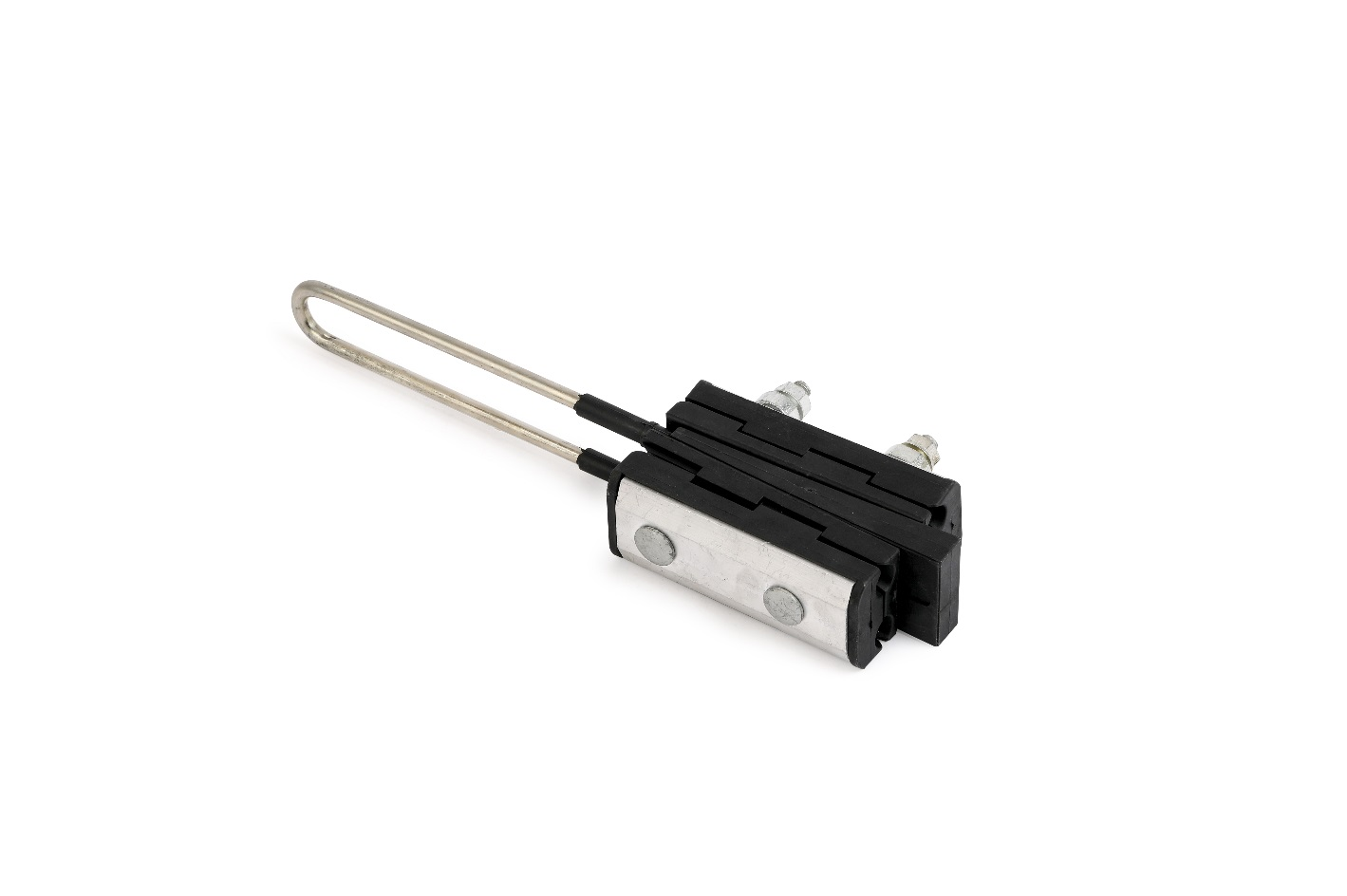

RPA dead end clamps are applicable to anchor fastenings for self-support insulated conductor with four bearing wires of same section.And used for the single anchoring of A.B.C.(Aerial Bundled Conductors) with insulated neutral messenger.
1.Reinforced polyamide fiberglass body.
2.Two clamping steel plates with steel bolts.
3.The spring,provide automatic opening of clamp for installation and fastening of wires.
Datas
|
Type |
Cross section(mm²） |
Messenger DIA.(mm) |
Breaking load |
|
RPA 425/50
|
4*(25-50) |
10-12 |
15kN |
|
RPA 450/120
|
4*(50-120) |
11-17 |
20kN |
