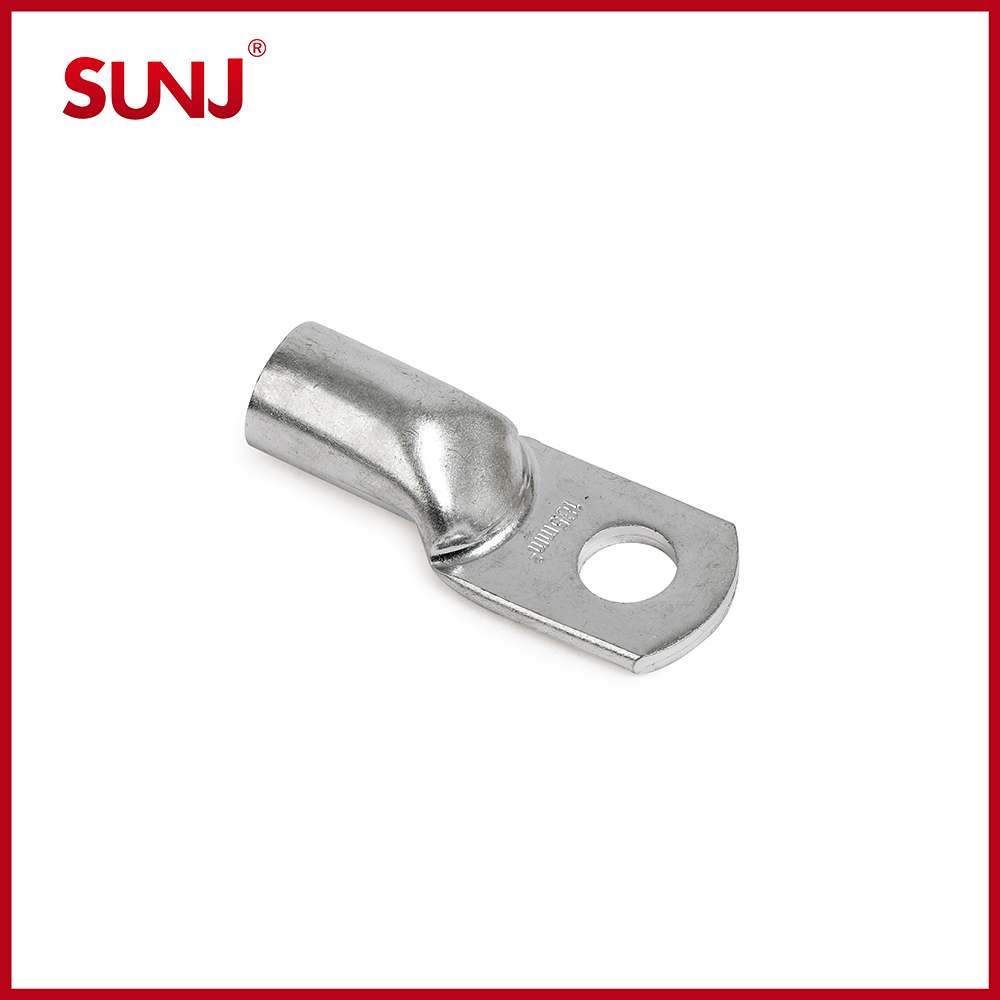

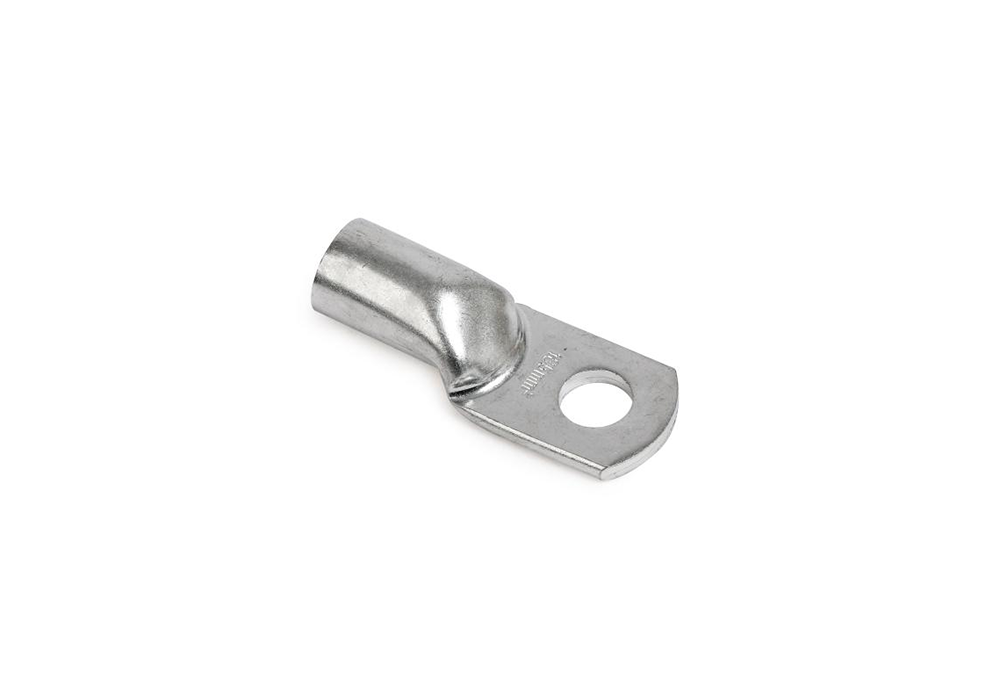

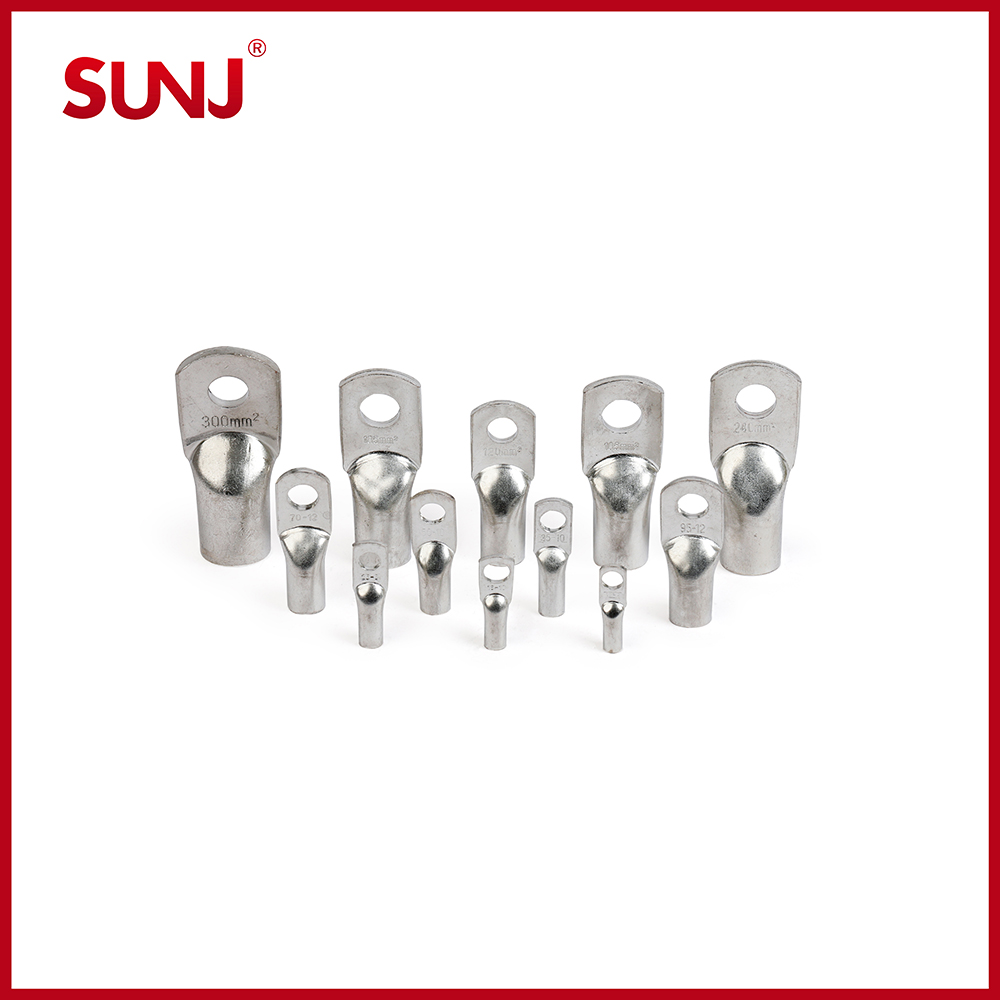

SC(JGA)
SC(JGA)
Used for connection of copper cable with copper end of electrical equipment in low voltage.
Material:Cu≥99.9%
Surface:tin plated
|

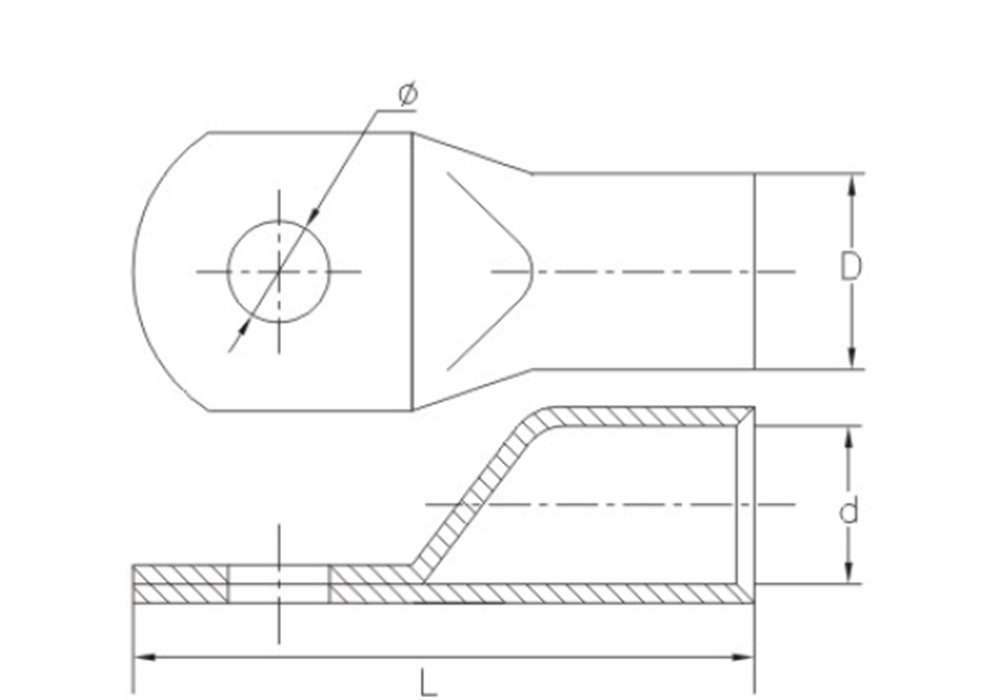

Type |
φ±0.5 |
D±0.5 |
d±0.5 |
L±2 |
|
SC(JGA)-6 |
φ6.5,φ8.5 |
6 |
4.8 |
24.5 |
|
SC(JGA)-10 |
φ6.5,φ8.5 |
8 |
5.8 |
39 |
|
SC(JGA)-16 |
φ6.5,φ8.5,φ10.5 |
9 |
6.5 |
42 |
|
SC(JGA)-25 |
φ6.5,φ8.5,φ10.5 |
10 |
7.6 |
47 |
|
SC(JGA)-35 |
φ6.5,φ8.5,φ10.5 |
11 |
8.5 |
52 |
|
SC(JGA)-35 |
φ12.5 |
11 |
8.8 |
52 |
|
SC(JGA)-50 |
φ8.5,φ10.5,φ12.5 |
13 |
10 |
54 |
|
SC(JGA)-70 |
φ8.5,φ10.5,φ12.5 |
16 |
12 |
62 |
|
SC(JGA)-95 |
φ8.5,φ10.5,φ12.5,φ14.5 |
18 |
14 |
64 |
|
SC(JGA)-120 |
φ10.5,φ12.5 |
19 |
15 |
72 |
|
SC(JGA)-150 |
φ10.5,φ12.5,φ14.5,φ16.5 |
21 |
16.8 |
68 |
|
SC(JGA)-185 |
φ12.5,φ14.5,φ16.5 |
24 |
18.8 |
86 |
|
SC(JGA)-240 |
φ12.5,φ14.5,φ16.5 |
26 |
21 |
91 |
|
SC(JGA)-300 |
φ16.5 |
30 |
24 |
99 |
|
SC(JGA)-400 |
φ16.5 |
31.9 |
25.7 |
110 |
|
SC(JGA)-500 |
φ20.5 |
38 |
30 |
116 |
|
SC(JGA)-630 |
φ20.5 |
45 |
36.3 |
135 |
