SC(JGK)
SC(JGK)

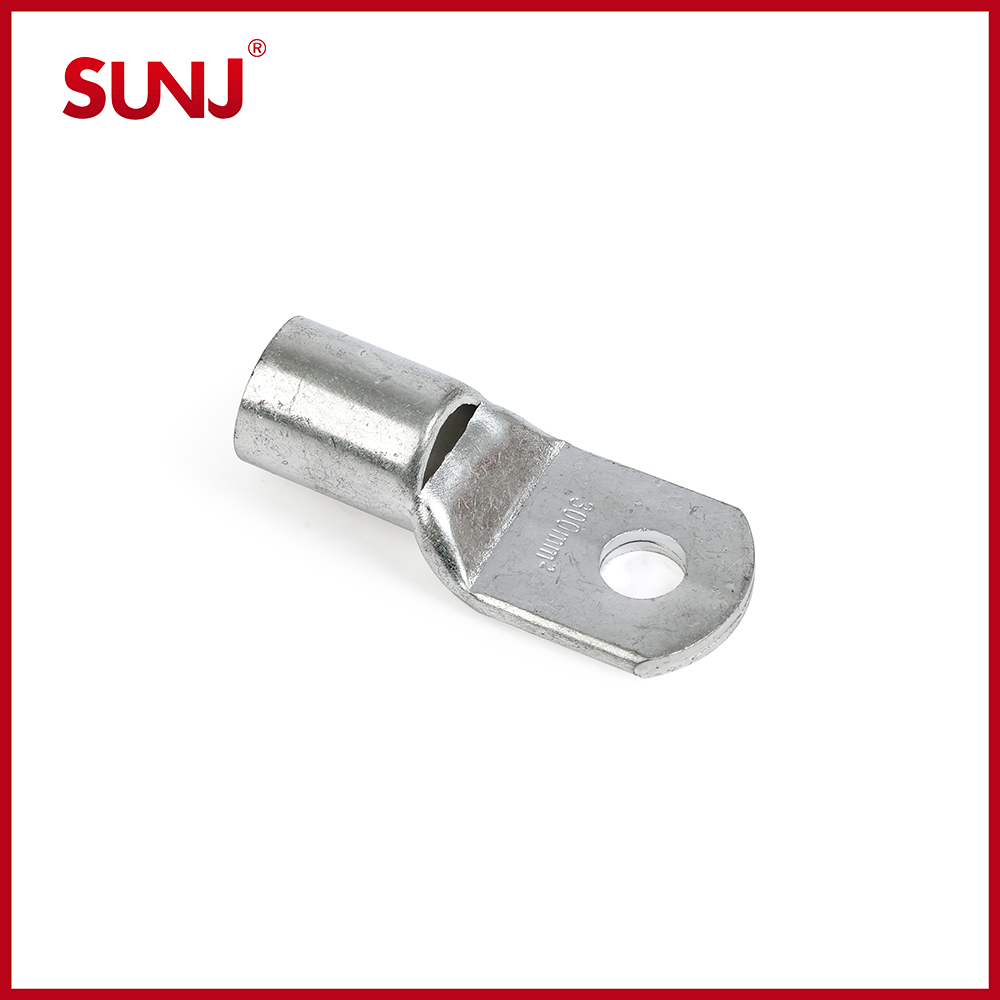

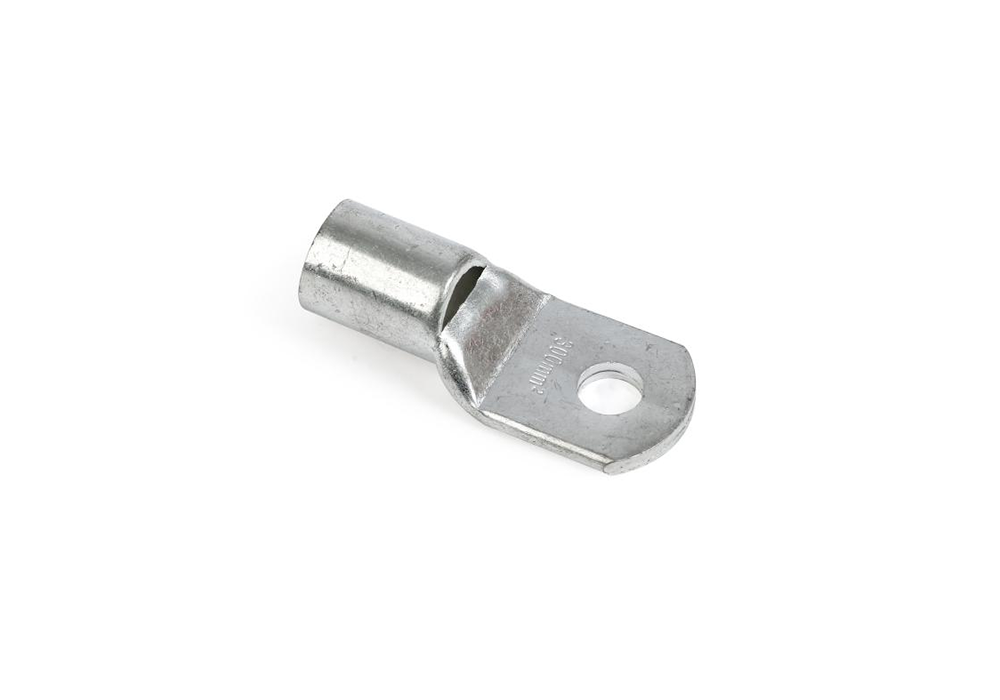

Used for connection of copper cable with copper end of electrical equipment in low voltage.
Material:Cu≥99.9%
Surface:tin plated
1.There is an arc-shaped viewing window on bevel for checking the location of conductor.

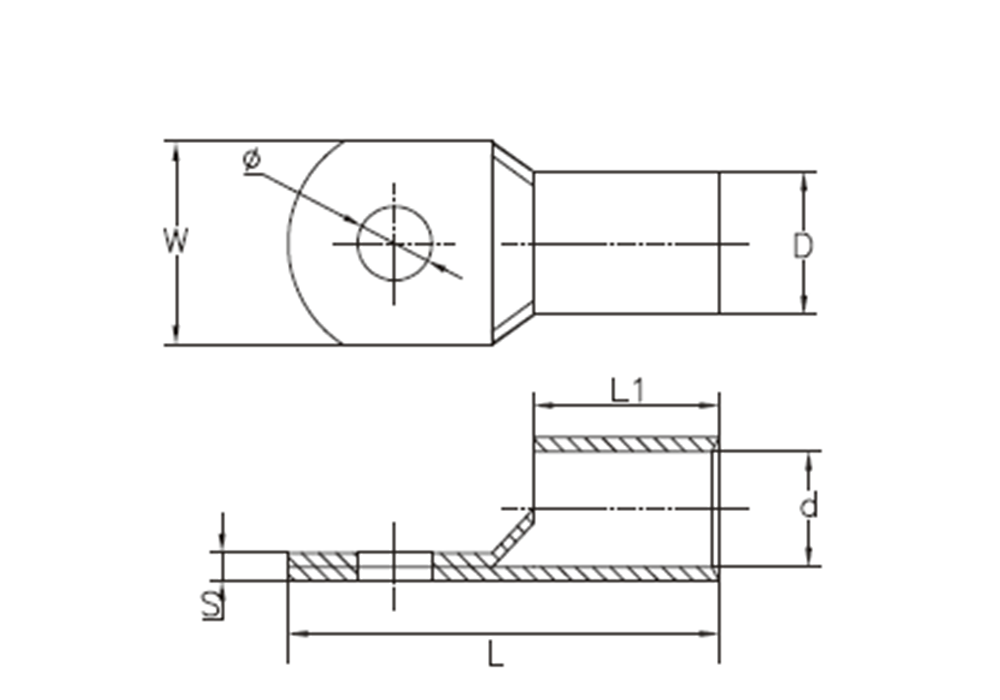

Datas
|
Type |
φ±0.5 |
D±0.5 |
d±0.5 |
L±2 |
L1±2 |
S±0.2 |
W±1.5 |
|
SC(JGK)-6 |
φ6.5 |
6 |
4.8 |
24.5 |
8 |
1.2 |
9 |
|
SC(JGK)-6 |
φ8.5 |
6 |
4.8 |
24.5 |
8 |
1.2 |
9 |
|
SC(JGK)-10 |
φ6.5 |
6.7 |
5.7 |
25 |
10 |
1 |
11.5 |
|
SC(JGK)-10 |
φ8.5 |
6.7 |
5.7 |
25 |
10 |
1 |
11.5 |
|
SC(JGK)-16 |
φ6.5,φ8.5 |
8 |
6.4 |
31 |
11 |
1.6 |
11.8 |
|
SC(JGK)-16 |
φ10.5 |
8 |
6.4 |
31 |
11 |
1.6 |
14 |
|
SC(JGK)-25 |
φ6.5,φ8.5,φ10.5 |
9 |
7.2 |
33 |
13 |
1.8 |
13 |
|
SC(JGK)-35 |
φ6.5,φ8.5,φ10.5 |
10.5 |
8.5 |
38 |
15.5 |
2 |
15.5 |
|
SC(JGK)-35 |
φ12.5 |
10.5 |
8.5 |
38 |
15.5 |
2 |
16.5 |
|
SC(JGK)-50 |
φ8.5,φ10.5,φ12.5 |
12.5 |
10.2 |
45 |
17 |
2.3 |
18.3 |
|
SC(JGK)-70 |
φ8.5,φ10.5,φ12.5 |
14.5 |
11.5 |
48 |
18 |
3 |
21 |
|
SC(JGK)-95 |
φ8.5,φ10.5,φ12.5,φ14.5 |
17 |
14 |
55 |
22 |
3 |
25 |
|
SC(JGK)-120 |
φ10.5,φ12.5 |
19 |
15 |
64 |
22 |
3.5 |
27.5 |
|
SC(JGK)-150 |
φ10.5,φ12.5,φ14.5,φ16.5 |
21 |
17 |
68 |
26 |
4 |
31 |
|
SC(JGK)-185 |
φ12.5,φ14.5,φ16.5 |
23 |
19 |
75 |
28 |
4 |
33.5 |
|
SC(JGK)-240 |
φ12.5,φ14.5,φ16.5 |
26 |
21 |
89 |
32 |
5 |
38 |
|
SC(JGK)-300 |
φ16.5 |
30 |
24 |
99 |
37 |
6 |
44 |
|
SC(JGK)-400 |
φ16.5 |
31.9 |
25.7 |
110 |
41 |
6 |
47 |
|
SC(JGK)-500 |
φ20.5 |
38 |
30 |
116 |
42 |
8 |
55 |
|
SC(JGK)-630 |
φ20.5 |
45 |
36.3 |
135 |
53.5 |
8.6 |
65 |
