SC(JGY)
SC(JGY)

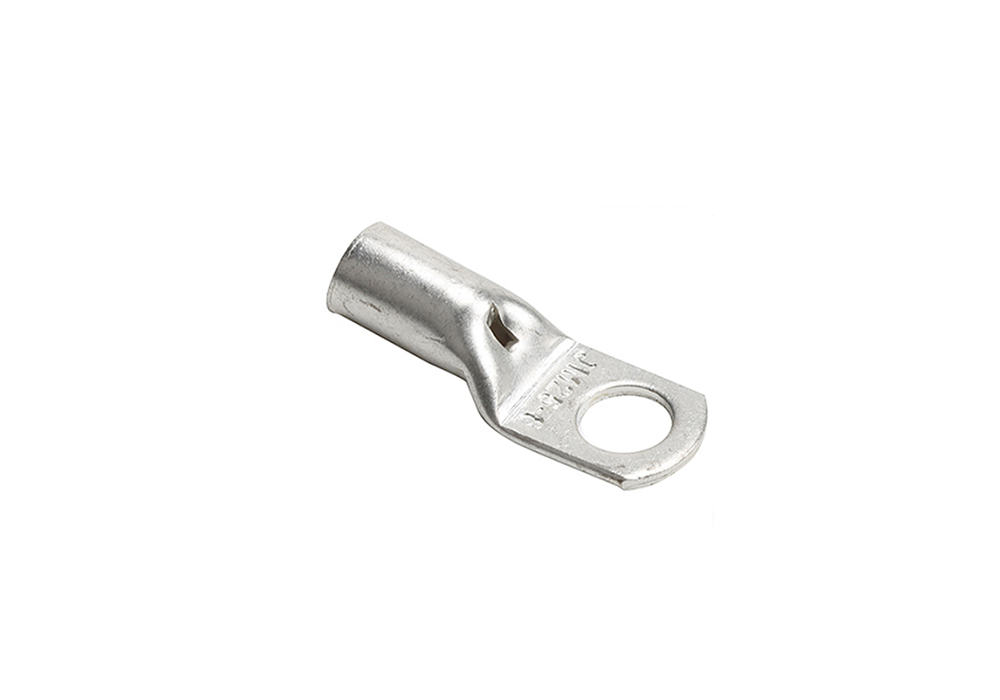

Used for connection of copper cable with copper end of electrical equipment in low voltage.
Material:Cu≥99.9%
Surface:tin plated
1.There is a rectangular viewing window on bevel for checking the location of conductor.

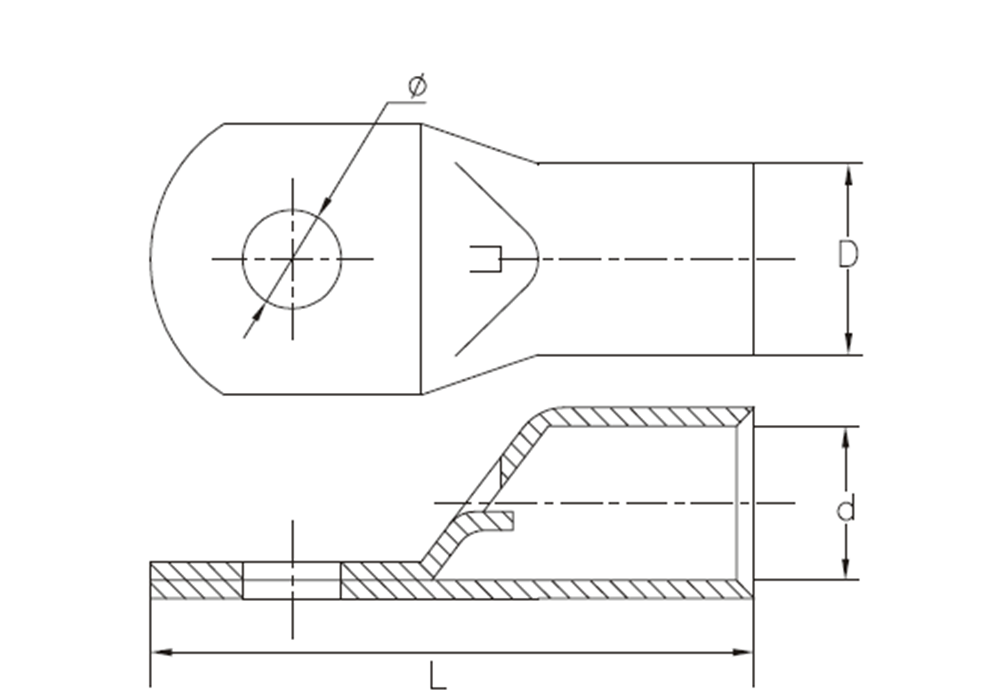

Datas
|
Type |
φ±0.5 |
D±0.5 |
d±0.5 |
L±2 |
|
SC(JGY)-6 |
φ5.2,φ6.2,φ8.2 |
5.5 |
4.1 |
24 |
|
SC(JGY)-10 |
φ6.2,φ8.2 |
6.5 |
5.1 |
28 |
|
SC(JGY)-16 |
φ6.2,φ8.2,φ10.5 |
8 |
6.4 |
33 |
|
SC(JGY)-25 |
φ6.2,φ8.2,φ10.5 |
9 |
7 |
36 |
|
SC(JGY)-35 |
φ6.2,φ8.2,φ10.5,φ12.5 |
10.5 |
8.5 |
42 |
|
SC(JGY)-50 |
φ8.2,φ10.5,φ12.5 |
12 |
9.8 |
49 |
|
SC(JGY)-70 |
φ8.2,φ10.5,φ12.5 |
14.5 |
11.9 |
55 |
|
SC(JGY)-95 |
φ10.5,φ12.5 |
16 |
13 |
60 |
|
SC(JGY)-120 |
φ12.5,φ16.5 |
19 |
15.4 |
67 |
|
SC(JGY)-150 |
φ12.5,φ16.5 |
20.5 |
16.7 |
73 |
|
SC(JGY)-185 |
φ16.5 |
23.5 |
19.3 |
78 |
|
SC(JGY)-240 |
φ16.5 |
26 |
21.1 |
92 |
|
SC(JGY)-300 |
φ16.5,φ20.5 |
30 |
24 |
102 |
|
SC(JGY)-400 |
φ16.5,φ20.5 |
34 |
27.6 |
113 |
|
SC(JGY)-500 |
φ16.5,φ20.5 |
38 |
31.6 |
123 |
|
SC(JGY)-630 |
φ20.5 |
45 |
37.6 |
145 |
