T/J
T/J

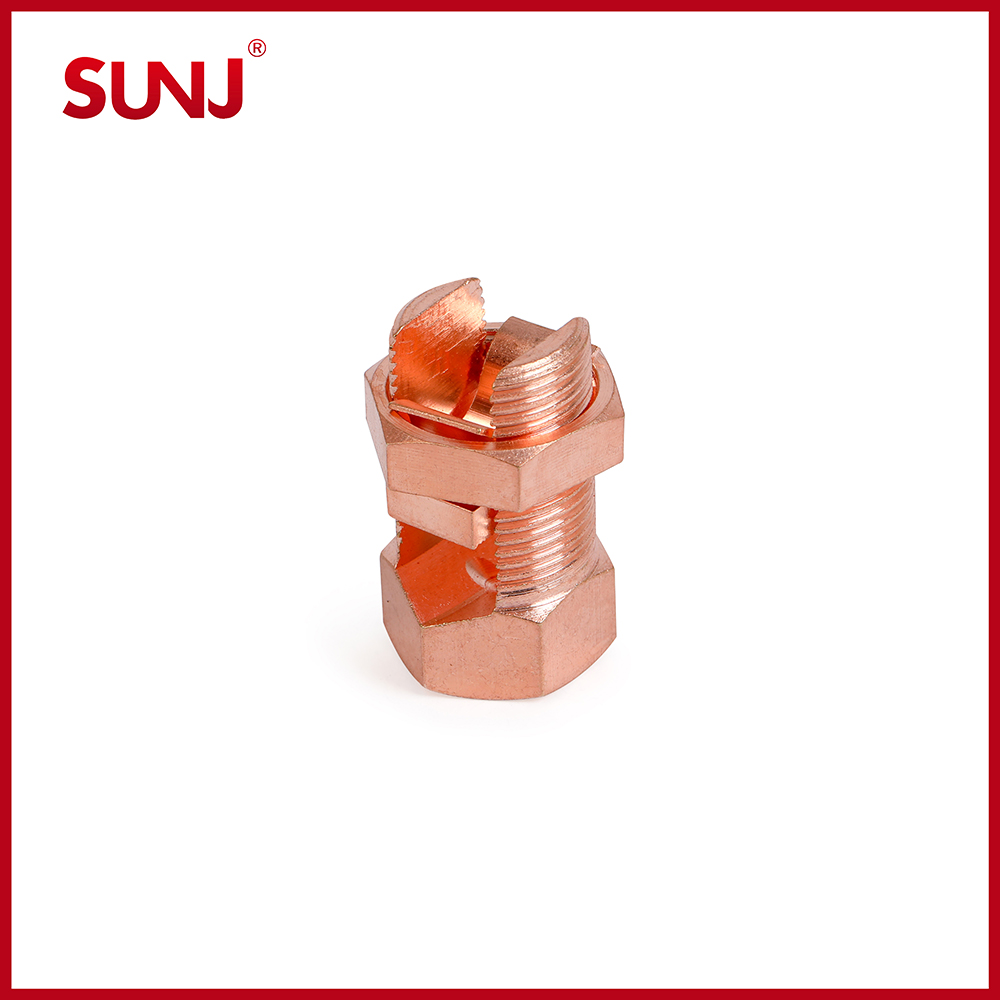

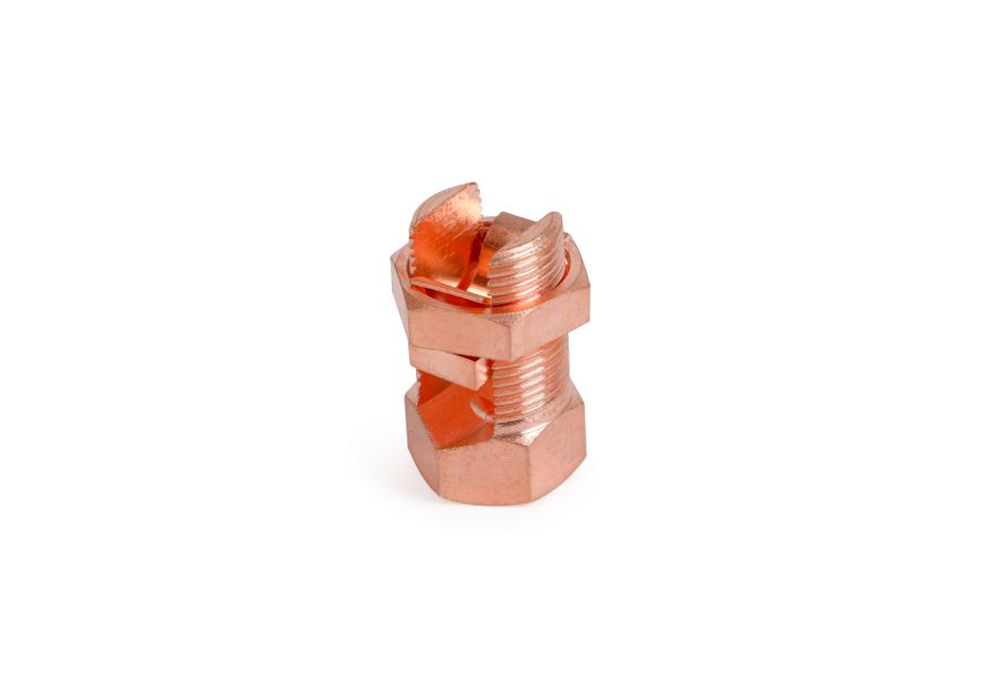

T/J clamp suitable for the sequence and transportation of all kinds of conductor in electric netting.
1.Split-bolt has free-running threads and easy to grip wrench flats.
2.It was highly resistant to cracking and corrosion.
3.Hex head design for maximum tool ease of use.

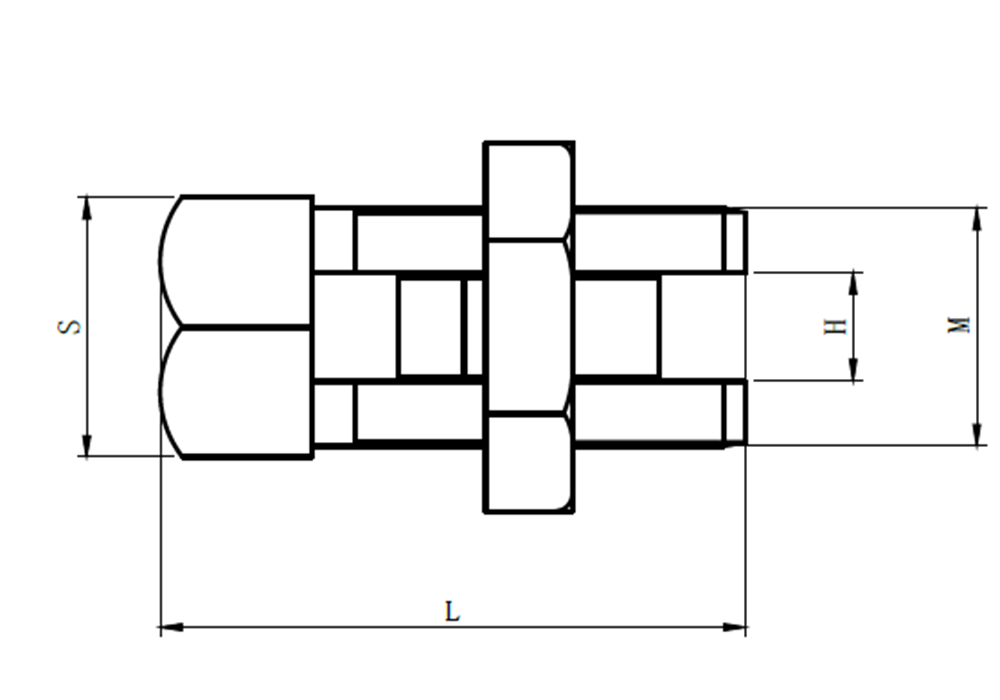

Datas
|
CONDUCTOR SIZE |
H |
L |
M |
S |
|
16mm² |
5 |
27 |
10.8 |
12 |
|
25mm² |
7 |
27 |
13 |
14 |
|
35mm² |
9.8 |
34.5 |
17 |
18 |
|
50-70mm² |
12.8 |
42 |
22 |
24 |
|
95-120mm² |
14 |
44.5 |
23.7 |
26 |
|
150-185mm² |
18 |
55 |
28 |
30 |
|
240mm² |
19 |
57 |
30 |
32 |
