WCJC
WCJC

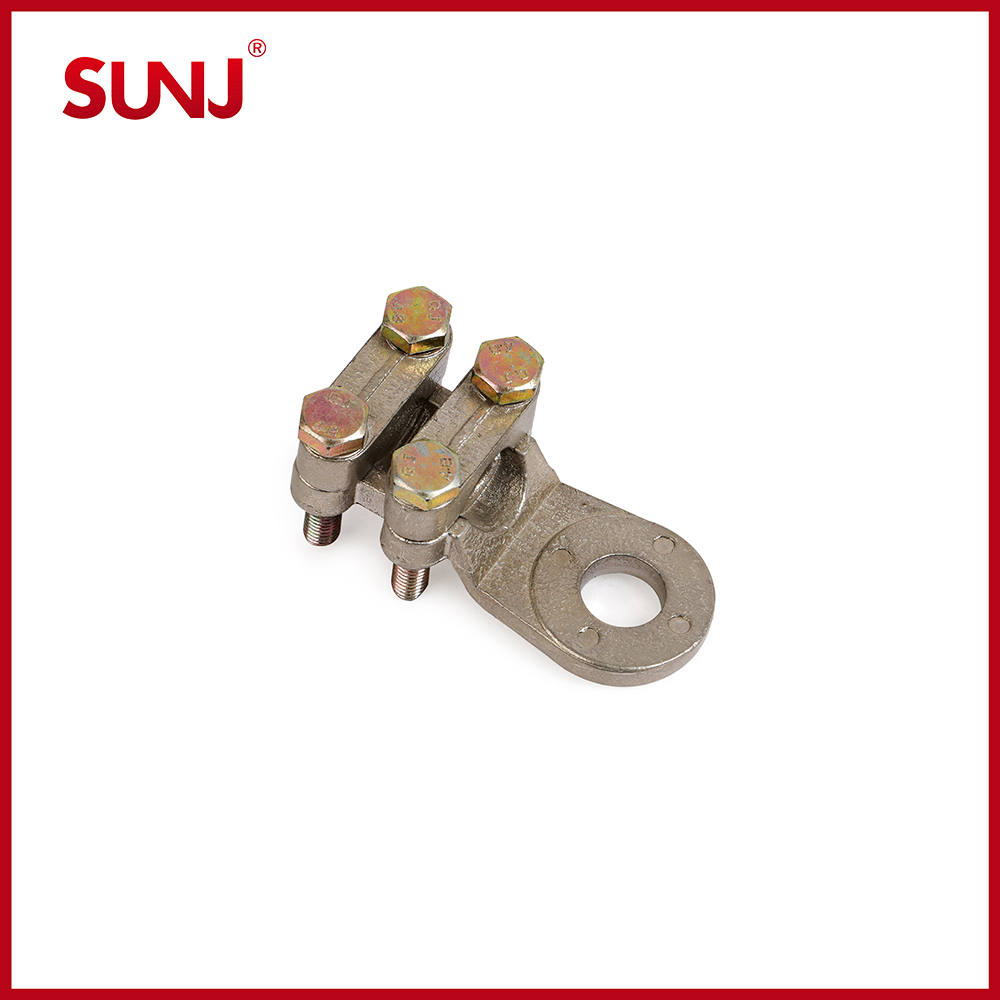

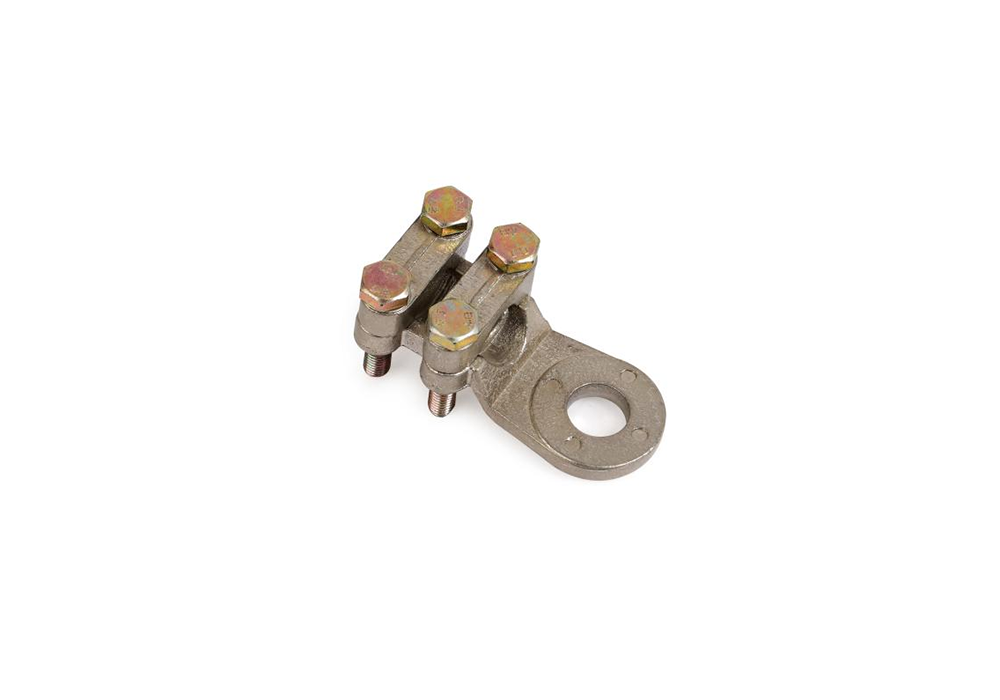

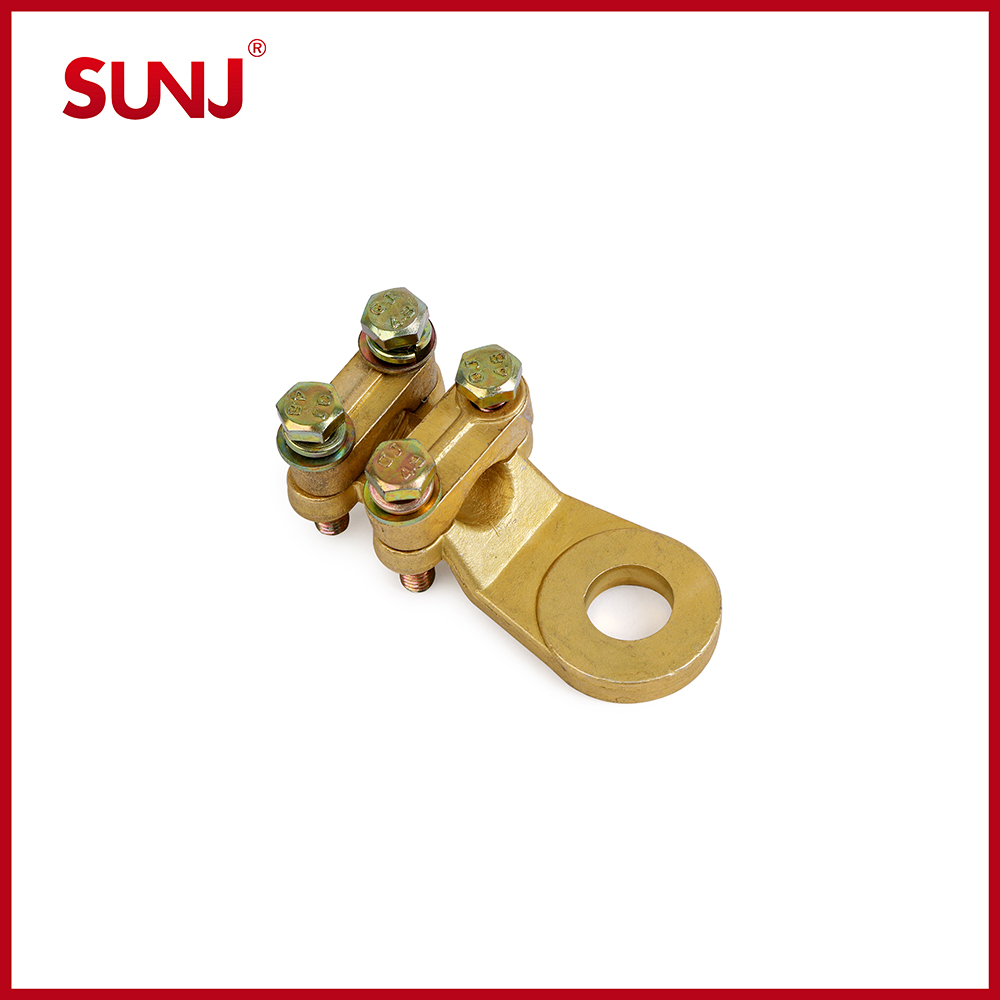

WCJC suitable for transition connection of the electric appliance owith wire and cable in indoor distribution equipment.
1.The surface is nickel plated.
2.WCJC Brass Jointing Clamp range is from 16 sqmm to 500 sqmm.
Datas
|
Type |
Conductor(mm²） |

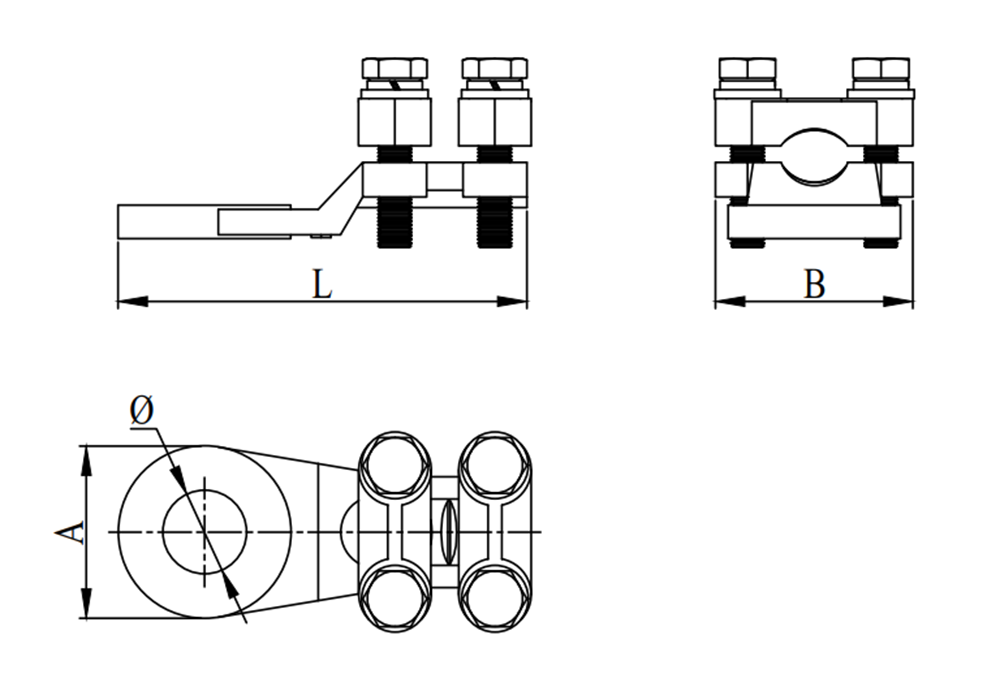

Dimensions(mm) |
|||
|
L |
A |
B |
Φ |
||
|
WCJC-1 |
16-25 |
37 |
15 |
20 |
7.5 |
|
WCJC-2 |
25-35 |
48 |
22 |
23 |
11 |
|
WCJC-3 |
50-95 |
60 |
22 |
31 |
11 |
|
WCJC-4 |
120-150 |
73 |
31 |
35 |
15 |
|
WCJC-5 |
210-250 |
90 |
38 |
46 |
17 |
|
WCJC-6 |
300 |
115 |
56 |
/ |
21 |
|
WCJC-7 |
400-500 |
125 |
62 |
/ |
23 |
